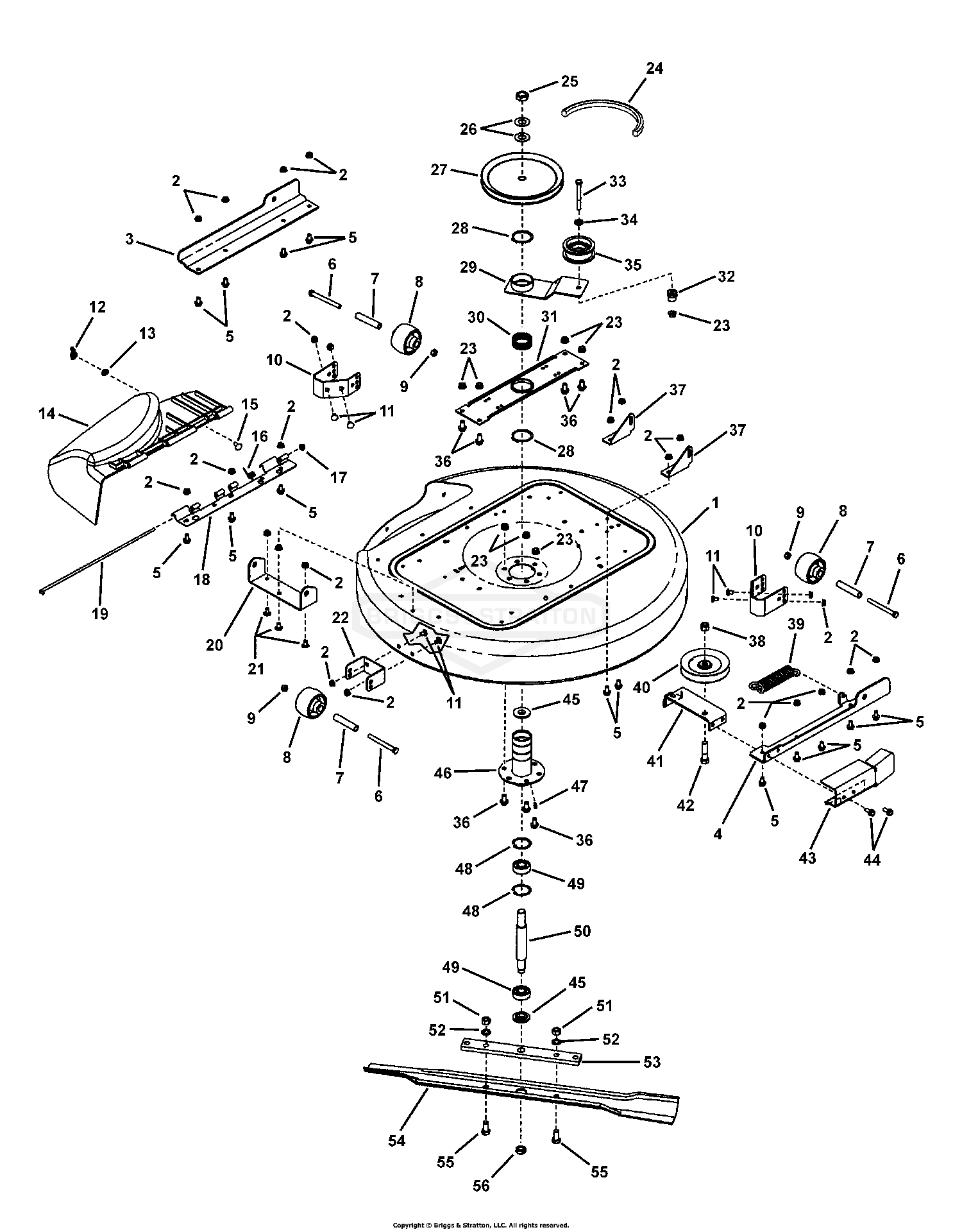

| Ref | Part Number | Description |
|---|
| 1 |
1735349DYP |
STAMPING 33 MOWER This part replaces 1735349. Price: $759.90 |
| 2 |
703409 |
NUT, 5/16-18, GR5 This part replaces 7091070. Price: $4.92 |
| 3 |
7300962BMYP |
RAIL, 33 Side - RH This part replaces 7300962BM. Price: Call Us |
| 4 |
7300963BMYP |
RAIL, 33 Side - LH This part replaces 7300963BM. Price: $48.49 |
| 5 |
703823 |
BOLT, 5/16-18X0.625 This part replaces 7091811. Price: $3.39 |
| 6 |
703876 |
CAPSCREW,3/8-2X3.75 This part replaces 7091532. Price: $6.02 |
| 7 |
7015272YP |
SPACER, 3" Long This part replaces 7015272. Price: $6.57 |
| 8 |
7019190YP |
WHEELS, Anti Scalp This part replaces 7019190. Price: $10.52 |
| 9 |
703458 |
NUT, HEX, 3/8-24 This part replaces 7090289. Price: $4.05 |
| 10 |
7033571BMYP |
ANTI SCALP BRACKET, Rear This part replaces 7033571BM. Price: $12.94 |
| 11 |
703798 |
BOLT, 5/16-18X0.50 This part replaces 7090731. Price: $3.82 |
| 12 |
7091537YP |
WING, Locknut, 5/16-18 This part replaces 7090492. Price: $3.61 |
| 13 |
7090188 |
WASHER, .34 x .69 x .08 Flat Price: Call Us |
| 14 |
7026233YP |
DEFLECTOR, Discharge, 28/33" This part replaces 7026233. Price: $68.89 |
| 15 |
7091508 |
BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR5 Price: Call Us |
| 16 |
7016341YP |
SPRING, Hinge This part replaces 7016341. Price: $3.95 |
| 17 |
7026483YP |
PUSH CAP This part replaces 7026483. Price: $3.82 |
| 18 |
7300886BMYP |
HINGE, Deflector (Deck side) This part replaces 7300886A. Price: $18.18 |
| 19 |
7105174YP |
ROD CHUTE This part replaces 7026234. Price: $8.15 |
| 20 |
1734766BMYP |
BRACKET, Mower Front This part replaces 1734766BM. Price: $20.99 |
| 21 |
703447 |
BOLT, 5/16-18X.625 G5 This part replaces 7090799. Price: $3.72 |
| 22 |
7033570BMYP |
ANTI SCALP BRACKET, Front This part replaces 7033570BM. Price: $17.21 |
| 23 |
703333 |
NUT, 3/8-16 This part replaces 7091619. Price: $4.26 |
| 25 |
1922015SM |
NUT, Hex, 3/4-16 This part replaces 1922015. Price: $3.06 |
| 26 |
7032027SM |
WASHER, .77 x 1.5 x .06 Flat This part replaces 7032027. Price: $3.94 |
| 27 |
7102173YP |
PULLEY, 33 ZT Spindle This part replaces 7102173. Price: $25.99 |
| 28 |
7010740YP |
RING, 2" External Retaining This part replaces 7010740. Price: $4.92 |
| 29 |
1735020BMYP |
WELDMENT, Idler Arm This part replaces 1735020BM. Price: $70.31 |
| 30 |
7012670YP |
RING, 2" ID x 3/4" High, Tolerance This part replaces 7012670. Price: $7.34 |
| 31 |
7038018BMYP |
BRACE, Spindle This part replaces 7038018BM. Price: $16.88 |
| 32 |
1706644SM |
SPACER,3/8X3/4X15/16 This part replaces 1706644. Price: $7.71 |
| 33 |
703874 |
CAPSCREW,3/8-16X3.25 This part replaces 1921973. Price: $3.94 |
| 34 |
703878 |
WASHER, FLAT This part replaces 1924940. Price: $3.40 |
| 35 |
1721133SM |
PULLEY, IDLER Price: $26.13 |
| 36 |
703955 |
BOLT, 3/8-16X0.75 This part replaces 7091588. Price: $3.72 |
| 37 |
1734765BMYP |
BRACKET, Deck Pick-Up This part replaces 1734765BM. Price: $10.90 |
| 38 |
703453 |
NUT, Hex Lock ESNA, 1/2-13 This part replaces 7091922. Price: $5.32 |
| 39 |
1715435SM |
SPRING, EXTENSION, 1. This part replaces 1715435. Price: $8.70 |
| 40 |
3021097YP |
PULLEY, Steel Idler This part replaces 3021097. Price: $61.41 |
| 41 |
7300961BM |
BRACKET, Pulley Mounting 33" ZT Price: Call Us |
| 42 |
5025017X16YP |
BOLT, 1/2-13 X 2 GD5 This part replaces 7900065. Price: $3.94 |
| 43 |
7300999BMYP |
GUARD, Idler Pulley, 33 ZT This part replaces 7300999BM. Price: $46.99 |
| 44 |
1664847CA |
SCREW-HEX WSHR HD TAPTT5/16-18X0.750 This part replaces 7091541. Price: Call Us |
| 45 |
7014407SM |
WASHER, Spindle, .75 ID, 1.75 OD, .28 Thick, PM This part replaces 7014407. Price: $6.46 |
| 46 |
7052294YP |
HOUSING, Spindle This part replaces 7047962BM. Price: $167.28 |
| 47 |
7010817SM |
FITTING, Lube (Straight press fit for .187 hole, no ball) This part replaces 7010817. Price: $3.73 |
| 48 |
7012491SM |
RETAINING RING, Extension, 1-3/4 This part replaces 7012491. Price: $3.61 |
| 49 |
7013313 |
BEARING, Spindle Price: Call Us |
| 50 |
7024687YP |
SHAFT SPINDLE 30 L This part replaces 7024687BM. Price: $32.88 |
| 51 |
7091939YP |
NUT, 1/2-20 Hex, GR 5 ZP This part replaces 7091939. Price: $3.06 |
| 52 |
7090509YP |
WASHER, 1/2" Internal Tooth Lock, BZ This part replaces 7090509. Price: $3.82 |
| 53 |
7037751BMYP |
HOLDER, Adjustable Blade (5 Hole, 12.5") This part replaces 7037751BM. Price: $42.52 |
| 54 |
7034168BZYP |
BLADE, 33 HIGH LIFT This part replaces 7034168. Price: $23.10 |
| 55 |
5025018X10SM |
BOLT, 1/2-20 X 1-1/4" GD8 CZ This part replaces 7090491. Price: $3.82 |
