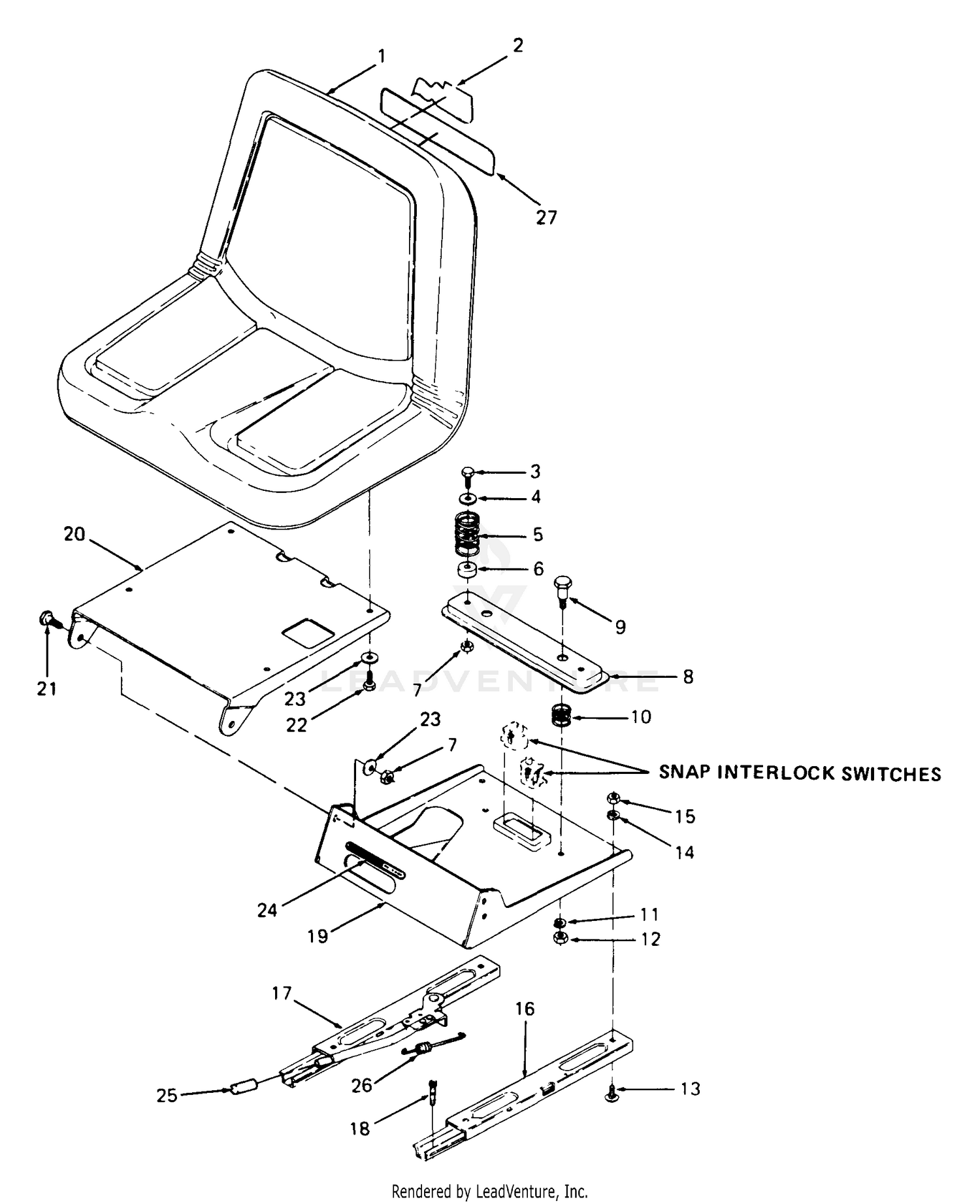

| Ref | Part Number | Description |
|---|
| 1 |
501580402 |
SEAT.ASM.907.TRACK.W/O.BELT This part replaces 539104584. Price: $699.99 |
| 1 |
759-04299 |
SEAT KIT-REPLACEMENT 757-3003/4 Not Available This part replaces 757-3004. Price: |
| 1 |
98-7734 |
STARTER ASM Price: $608.87 |
| 2 |
539102844 |
ARM REST CUSHIONS/PAIR Price: $159.99 |
| 2 |
777D01782 |
LABEL-MADE IN USA Not Available This part replaces 777-2041. Price: |
| 2 |
98-7735 |
STUD Price: $1.36 |
| 3 |
539102539 |
SEAT CUSHION W/SWITCH Price: $329.99 |
| 3 |
710-3038 |
Screw, Hex Cap, 5/16-18 x .88 Lg GR5 Price: $4.17 |
| 3 |
98-7736 |
BOLT Price: $1.66 |
| 4 |
539104789 |
DECAL, CROWN H Price: $3.10 |
| 4 |
736-0159 |
Washer, Flat, .344 x .875 x .06 Thk Price: $3.71 |
| 4 |
99-7526 |
NUT This part replaces 98-7737. Price: $1.29 |
| 5 |
539103288 |
SEAT MOUNT Price: $78.70 |
| 5 |
932-3069 |
COMPRESSION SPRING1.28 OD x 2.18 Not Available This part replaces 732-3069. Price: |
| 5 |
98-7738 |
WASHER-SPRING Price: $0.24 |
| 6 |
539990591 |
HCS 3/8C X 4 1/2 Price: $5.99 |
| 6 |
722-0160 |
RUBBER BUSHING .318IDX.930OD Not Available Price: |
| 6 |
98-7739 |
NUT Price: $1.08 |
| 7 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 7 |
712-3009 |
Nut, Hex Center Lock, 5/16-18 GR5 Price: $5.99 |
| 8 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 8 |
703-1813 |
SEAT CHANNEL Not Available Price: |
| 9 |
539976856 |
TIE, PLASTIC Price: $4.99 |
| 9 |
738-0145 |
Screw, Shoulder, .500 Dia x .840 Price: $6.01 |
| 10 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 10 |
732-3060 |
COMPRESSION SPRING Not Available Price: |
| 11 |
539103247 |
SEAT LANYARD Price: $14.99 |
| 11 |
736-0169 |
Washer, Lock, 3/8 Price: $3.33 |
| 12 |
539102617 |
SCREW, #1--24 X 1/2 SLOTTED Price: $2.99 |
| 12 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 13 |
539102794 |
SEAT BUMPER Price: $2.99 |
| 13 |
710-3215 |
BOLT-SHT NK CARR 5/16-18X Not Available Price: |
| 14 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 14 |
936-0119 |
Washer, Lock, 5/16 This part replaces 736-0119. Price: $4.29 |
| 15 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 16 |
703-1844 |
SLIDE-SEAT Not Available Price: |
| 17 |
703-1843 |
ADJUSTER-MAN SEAT RIGHT Not Available Price: |
| 18 |
710-3216 |
SCREW-SOCKET HD 5/16-18X1.0 LG Not Available Price: |
| 19 |
703-1811 |
BRACKET, SEAT PIVOT SUPPORT Not Available Price: |
| 20 |
703-1812 |
BRACKET, SEAT PIVOT Not Available Price: |
| 21 |
738-0140 |
Screw, Shoulder, .437 Dia x .180 Price: $4.93 |
| 22 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 23 |
736-0242 |
Washer, Bell, .345 x .88 x .060 Thk Price: $3.75 |
| 24 |
779-3524 |
LABEL, SEAT ADJUSTMENT Not Available Price: |
| 25 |
759-3603 |
HANDLE COVER Not Available Price: |
| 26 |
759-3604 |
Spring Price: Call Us |
