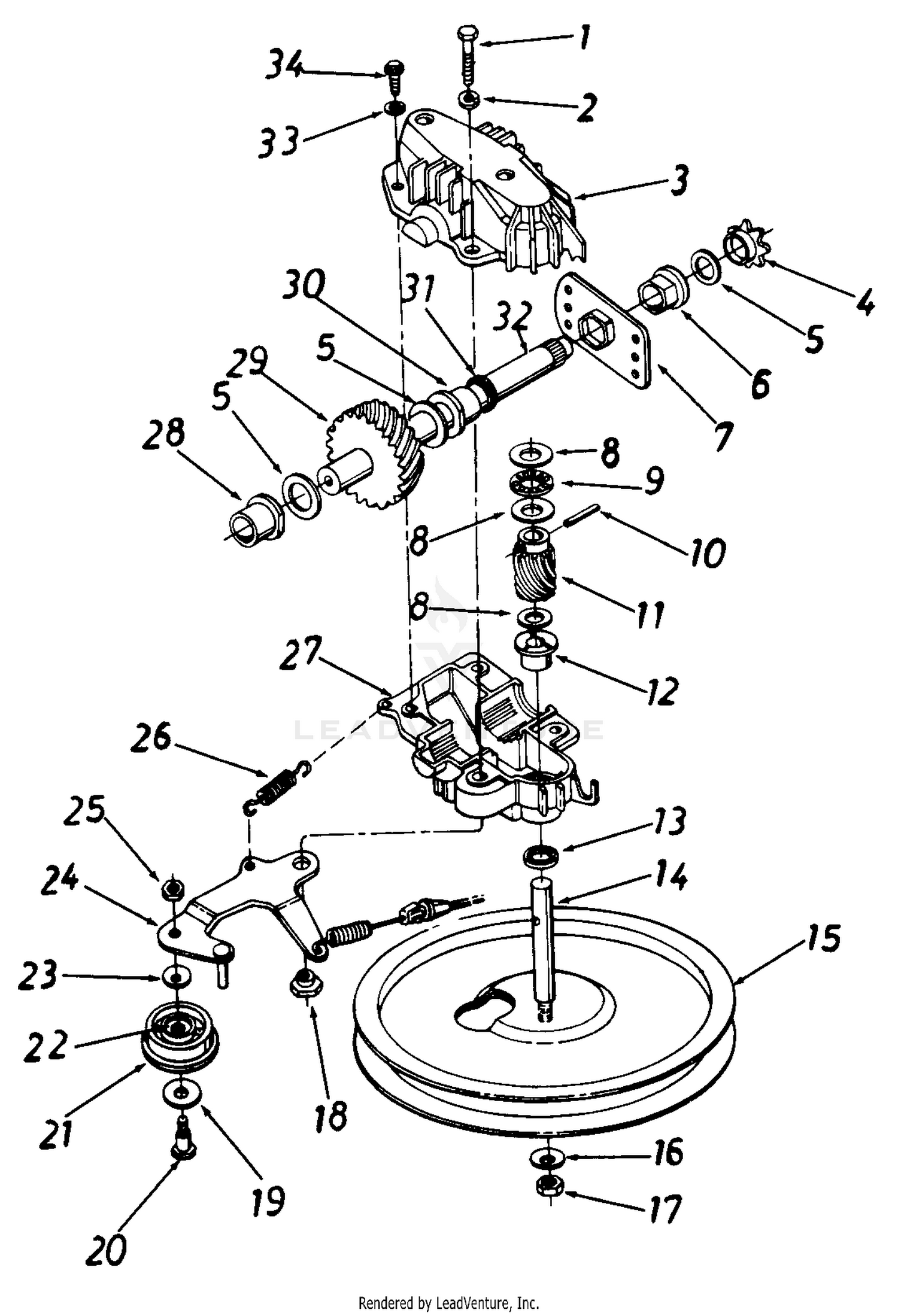

| Ref | Part Number | Description |
|---|
| 1 |
710-0106 |
Hex Boit 1/4-20 x 1.25" Lg. Price: $3.66 |
| 2 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 3 |
717-0418A |
HOUSING HALF UPPER Not Available This part replaces 717-0418. Price: |
| 4 |
713-0400 |
SPROCKET-7T Not Available Price: |
| 5 |
936-0336 |
FLAT WASHER This part replaces 736-0336. Price: $3.90 |
| 6 |
741-0413 |
Hex Flange Brg. .631" I.D. Price: $8.46 |
| 7 |
16500A-0637 |
CUP BEARING HEX Not Available This part replaces 16500. Price: |
| 8 |
736-0314 |
Thrust Wash. .382" I.D. x .70" O.D. Price: $6.01 |
| 9 |
741-0479 |
Thrust Bearing .375" I.D. x .812" O.D. Not Available Price: |
| 10 |
715-0152 |
SPRING PIN Not Available Price: |
| 11 |
717-0420 |
WORM GEAR Not Available Price: |
| 12 |
748-0208A |
Flange Bearing This part replaces 748-0208. Price: $3.93 |
| 13 |
721-0212 |
OIL SEAL -.375 ID Not Available Price: |
| 14 |
753-0448 |
KIT-TRAN PUL SHFT Not Available This part replaces 738-0708. Price: |
| 15 |
756-0330A |
PULLEY Not Available This part replaces 756-0330. Price: |
| 16 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 17 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 18 |
738-0440 |
Shld. Spacer .375" Dia. x .170 Price: $5.45 |
| 19 |
736-0344 |
Fl-Wash. .390" I.D. x 1.0" O.D. Price: $4.13 |
| 20 |
938-0691 |
SHOULDER SCREW Not Available This part replaces 738-0691. Price: |
| 21 |
753-0518 |
Fl-Idler Plastic 1.50" Dia. x .48 This part replaces 756-0447. Price: $25.67 |
| 22 |
741-0482 |
NEEDLE BEARING Not Available Price: |
| 23 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 24 |
16501 |
BRACKET ASSY-IDLER Not Available Price: |
| 25 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 26 |
732-0357A |
Extension Spring .33 OD x 1.12 Lg. This part replaces 732-0357. Price: $3.94 |
| 27 |
717-0419 |
HOUSING HALF-LOWER Not Available Price: |
| 28 |
941-0415 |
Flange Bearing .566 ID This part replaces 741-0415. Price: $9.18 |
| 29 |
717-0422 |
SHAFT & GEAR AS Not Available Price: |
| 30 |
741-0414 |
Flange Bearing .629 Dia. Price: $9.41 |
| 31 |
721-0213 |
Oil Seal .625 Dia. Price: $9.93 |
| 32 |
738-0607 |
SHAFT & GEAR AS Not Available Price: |
| 33 |
736-0722 |
L-Wash. #10 Price: $5.81 |
