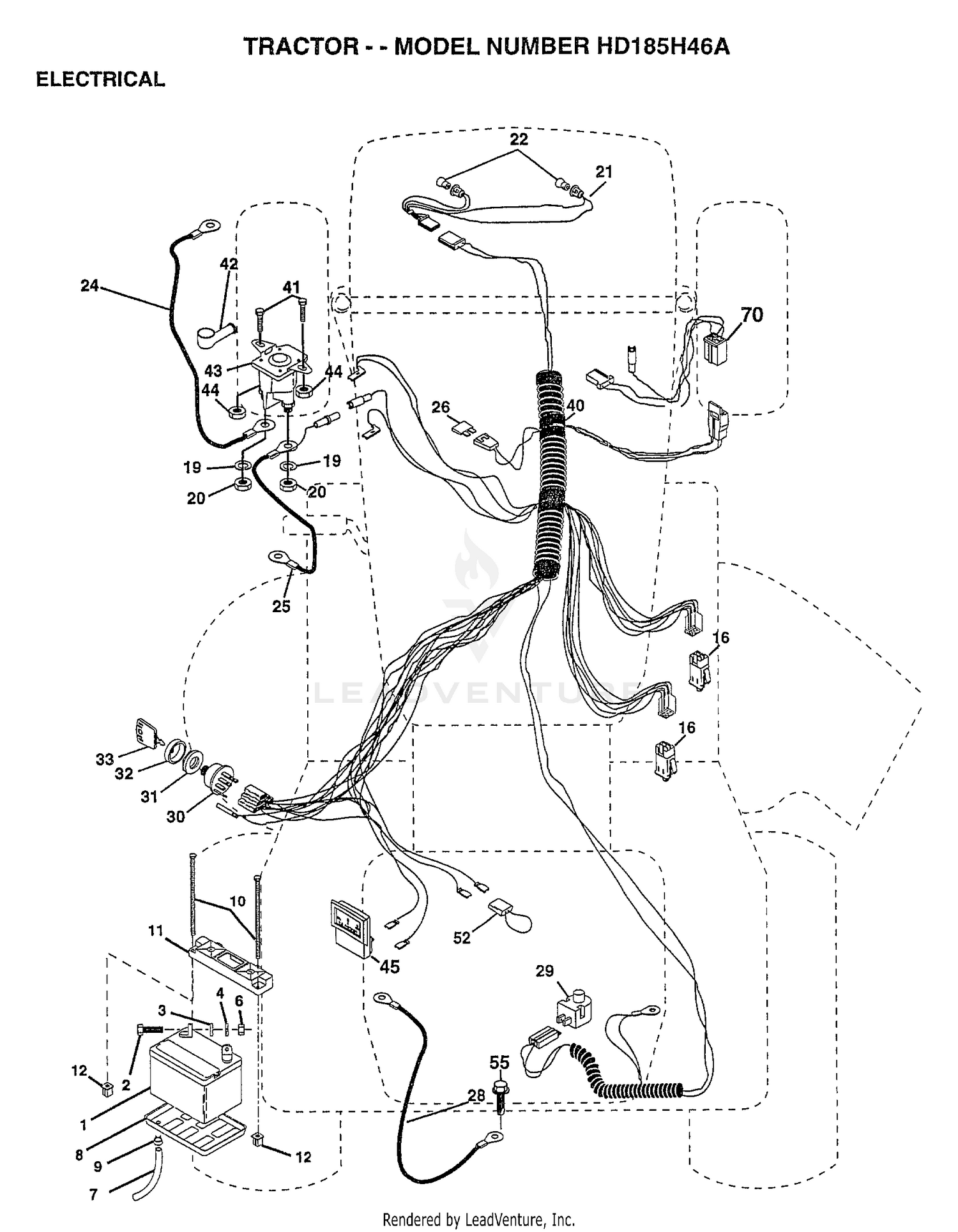

| Ref | Part Number | Description |
|---|
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
19091016 |
WASHER Price: Call Us |
| 4 |
10040400 |
LOCKWASHER Price: Call Us |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 10 |
108-1417 |
PISTON (+0.5MM) Price: $271.74 |
| 10 |
145211 |
SUB= 150177 Price: Call Us |
| 10 |
98-9550 |
PISTON (STD) Price: $274.67 |
| 11 |
150109 |
HOLDDOWN BATTERY Price: Call Us |
| 12 |
145769 |
SUB= 150177 Price: Call Us |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 20 |
108-1404 |
PISTON RING ASM (+0.5MM) Price: $222.07 |
| 20 |
73350400 |
NUT Price: Call Us |
| 20 |
98-9551 |
PISTON RING ASM (STD) Price: $220.34 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 25 |
146148 |
CABLE.6GA.22W/16W Price: Call Us |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 28 |
145491 |
CABLE.GRND.6GA.21 Price: Call Us |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 31 |
124211 |
SUB= 124211X Price: Call Us |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 33 |
122147X |
KEY Price: Call Us |
| 40 |
156442 |
HARNESS-IGNITION Price: Call Us |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 45 |
121433X |
SUB= 122822X Price: Call Us |
| 50 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9552. Price: $547.99 |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
| 55 |
17490508 |
SCREW LT Price: Call Us |
| 60 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 108-1406. Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) This part replaces 108-1405. Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 90 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 110 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 120 |
98-9666 |
KEY Price: $3.58 |
| 130 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 140 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 150 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 160 |
105-3783 |
O-RING Price: $6.33 |
| 170 |
108-1407 |
METAL-CRANKPIN, -0.2MM Price: $63.01 |
| 170 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9554. Price: $66.99 |
| 170 |
112-7010 |
METAL-CRANKPIN (-0.4MM) This part replaces 108-1408. Price: $30.75 |
| 180 |
108-1409 |
METAL-CRANKPIN, -0.2MM Price: $49.61 |
| 180 |
112-7013 |
METAL-CRANKPIN (-0.4MM) This part replaces 108-1410. Price: $30.75 |
| 180 |
98-9524 |
METAL-CRANKSHAFT (STD SET) This part replaces 98-9555. Price: $62.26 |
| 190 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) This part replaces 105-3719. Price: $60.46 |
| 190 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) This part replaces 105-3720. Price: $66.64 |
| 190 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9556. Price: $86.06 |
| 200 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 200 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 200 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 210 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
