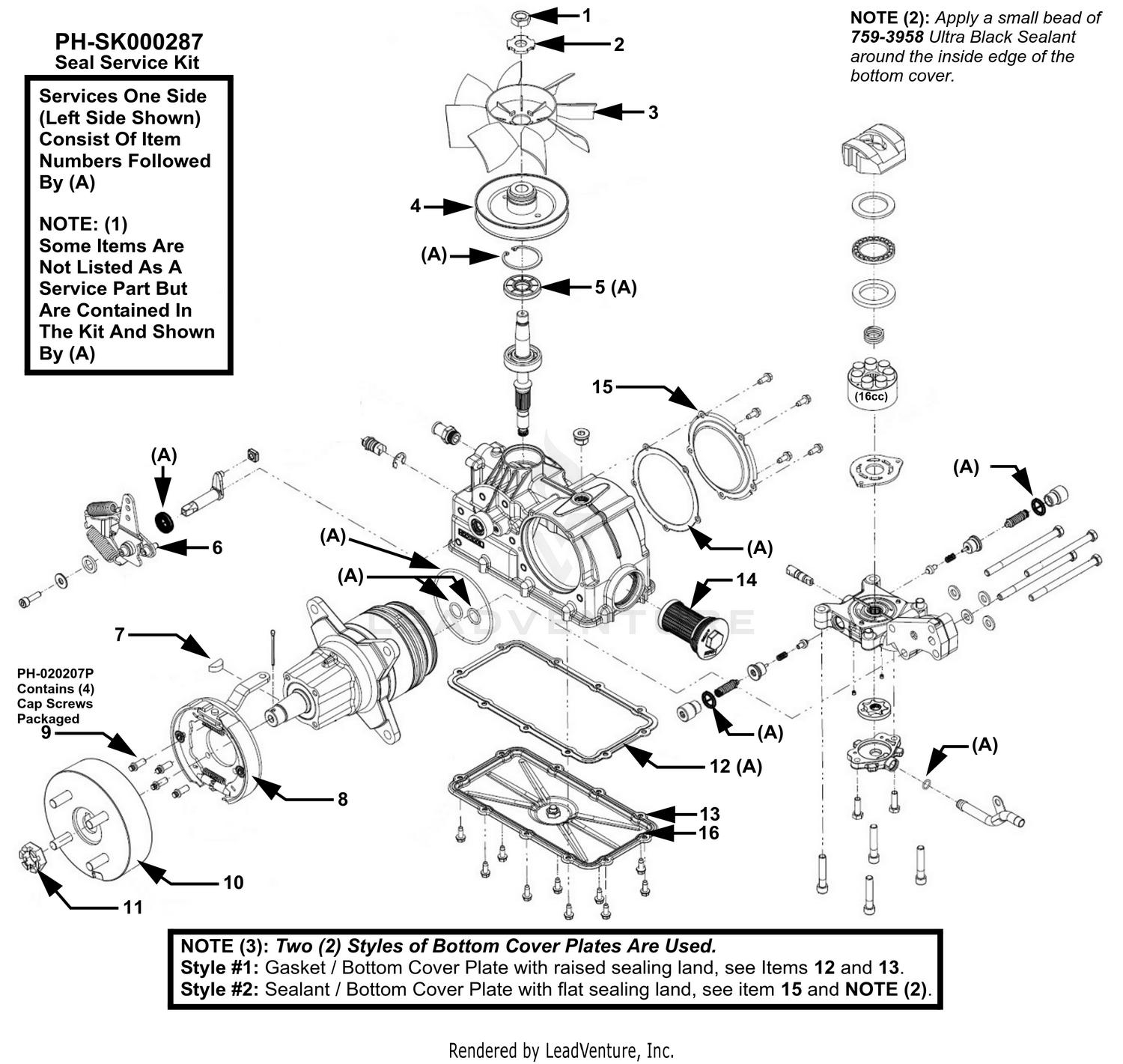

Transmission (LH)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| A | PH-SK000287 | SEAL SERVICE KIT Price: $158.14 |
| 1 | PH-025164 | NUT Price: $7.44 |
| 2 | PH-477370 | SPACER Price: $18.62 |
| 3 | PH-420067 | FAN Price: $93.12 |
| 4 | PH-403856 | PULLEY Price: $149.03 |
| 5 | PH-478092 | SEAL KIT This part replaces PH-478086. Price: $40.46 |
| 6 | PH-SK000340 | SERVICE KIT-RTN (LH) Price: $322.83 |
| 7 | PH-038016 | WOODRUFF KEY Price: $8.03 |
| 8 | PH-490169 | BRAKE ASSEMBLY-ON HOLE LEVER Price: $394.55 |
| 9 | PH-020207P | SCREW-CAP (QTY 4) Price: $9.29 |
| 10 | PH-490218 | DRUM-4 BOLT BRAKE Price: $361.33 |
| 11 | PH-025113 | NUT-SLOTTED Price: $26.08 |
| 12 | PH-034008 | BOTTOM COVER GASKET Price: $50.74 |
| 13 | PH-402136 | BOTTOM COVER Price: $57.78 |
| 14 | PH-411135S | FILTER KIT Price: $62.36 |
| 15 | PH-402132 | SIDE COVER PLATE Price: $98.27 |
| 16 | PH-402139 | BOTTOM COVER Price: $174.05 |
