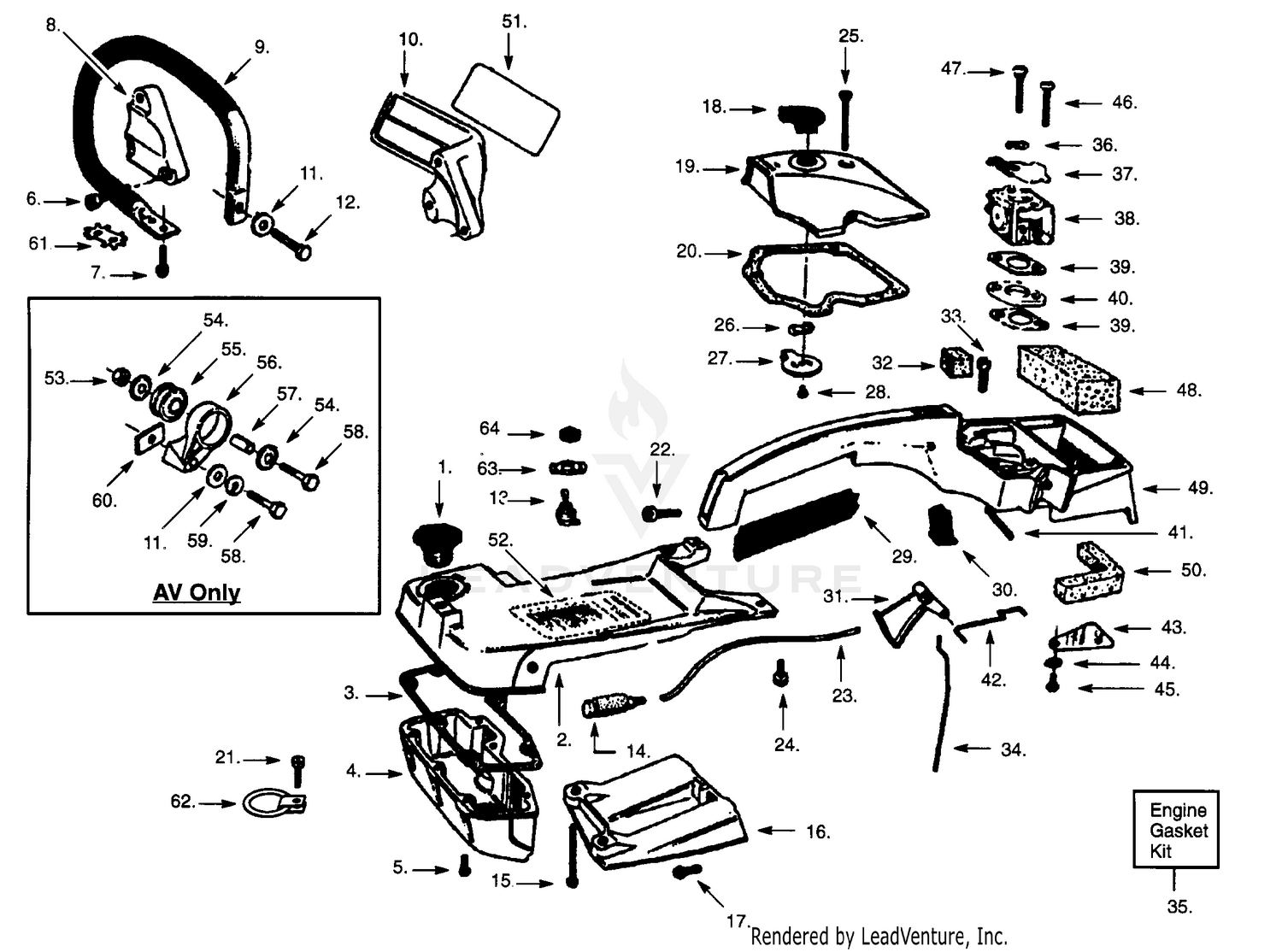

HANDLE & HOUSING
Parts (97)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32144-10 | SCREW-HWH Price: $4.29 |
| 1 | 530010123 | Fuel Cap Ass'y. Price: $5.68 |
| 2 | 3253-3 | WASHER-LOCK Price: $0.31 |
| 2 | 530012259 | Fuel Tank Top Price: $37.99 |
| 3 | 42-6650 | DISCONTINUED Price: Call Us |
| 3 | 530019047 | Fuel Tank Gasket Price: $1.99 |
| 4 | 39-1010 | DISCONTINUED Price: Call Us |
| 4 | 530012260 | Fuel Tank Bottom Price: $29.99 |
| 5 | 530015138 | Screw Price: $1.99 |
| 5 | 63-8440 | DECAL-SURFACE, HOT This part replaces 28-1530. Price: $6.82 |
| 6 | 29-4200 | DISCONTINUED Price: Call Us |
| 6 | 530015509 | Screw Price: $1.99 |
| 7 | 321-10 | SCREW-HH Price: $1.29 |
| 7 | 530015037 | S25DA Price: $1.99 |
| 7 | 530015839 | S25AV Price: $1.99 |
| 8 | 39-7630 | DISCONTINUED Price: Call Us |
| 8 | 530024049 | Handguard Cap Price: $0.52 |
| 9 | 530022315 | S25AV Price: $19.99 |
| 9 | 530022358 | S25DA Price: $11.36 |
| 10 | 39-2630 | DISCONTINUED Price: Call Us |
| 10 | 530024091 | Handguard Price: $9.99 |
| 11 | 2412-42 | CLAMP-HOSE Price: $2.65 |
| 11 | 530015151 | Washer Price: $1.99 |
| 12 | 29-5230 | INLET TUBE Price: $223.78 |
| 12 | 530001648 | S25DA Price: $1.99 |
| 12 | 530015505 | S25AV Price: $1.99 |
| 13 | 3290-379 | TIE-CABLE Price: $0.31 |
| 13 | 530023573 | Start/Stop Switch Price: $3.33 |
| 14 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 14 | 530095646 | Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 15 | 530015152 | Screw Price: $1.99 |
| 15 | 8-2329 | DISCONTINUED Price: Call Us |
| 16 | 47-7440 | DISCONTINUED This part replaces 29-4110. Price: Call Us |
| 16 | 530012258 | Cylinder Shield Price: $14.99 |
| 17 | 2412-36 | CLAMP-HOSE Price: $1.28 |
| 17 | 530001709 | Screw Price: $1.99 |
| 18 | 353-702 | HOSE CONNECTOR Price: $10.10 |
| 18 | 530023376 | Choke Knob Price: $1.99 |
| 19 | 221-624 | DISCONTINUED Price: Call Us |
| 19 | 530011558 | Carburetor Cover Price: $22.99 |
| 20 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 20 | 530019074 | Carb. Cover Gasket Price: $3.99 |
| 21 | 325-6 | SCREW-HH Price: $1.42 |
| 21 | 530015239 | Screw Price: $1.99 |
| 22 | 29-5220 | DISCONTINUED Price: Call Us |
| 22 | 530015247 | Screw Price: $1.99 |
| 23 | 2112-9 | CLAMP Price: $7.78 |
| 23 | 530069216 | Line Kit (Bulk 8133) Price: $3.99 |
| 24 | 38-7560 | DISCONTINUED Price: Call Us |
| 24 | 530015476 | Screw Price: $1.99 |
| 25 | 353-749 | DISCONTINUED Price: Call Us |
| 25 | 530015144 | Screw Price: $1.99 |
| 26 | 39-7640 | DISCONTINUED Price: Call Us |
| 26 | 530015147 | Wave Washer Price: $1.99 |
| 27 | 353-750 | DISCONTINUED Price: Call Us |
| 27 | 530023876 | Choke Lever Price: $1.99 |
| 28 | 39-5830 | DISCONTINUED Price: Call Us |
| 28 | 530015407 | Screw Price: $0.56 |
| 29 | 39-0520 | DISCONTINUED Price: Call Us |
| 29 | 530024111 | Handle Grip Price: $1.99 |
| 30 | 2412-4 | CLAMP-R Price: $4.22 |
| 30 | 530023362 | Oil Pump Button Price: $0.28 |
| 31 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 31 | 530024672 | Trigger Price: $1.99 |
| 32 | 42-4180 | DISCONTINUED Price: Call Us |
| 32 | 530023373 | Throttle Wire Boot Price: $1.99 |
| 33 | 530001636 | Screw Price: $1.99 |
| 34 | 530023361 | Oil Pump Push Rod Price: $1.99 |
| 35 | 530069023 | Engine Gasket Kit (Inc. 3,20,32,39,50,55) Price: $3.33 |
| 36 | 530015146 | Wave Washer Price: $1.99 |
| 37 | 530023841 | Choke Shutter Price: $1.99 |
| 38 | 530035258 | Carburetor Price: $20.76 |
| 39 | 530019045 | Carb. Gasket Price: $1.99 |
| 40 | 530023872 | Spacer Price: $7.99 |
| 41 | 530015145 | Trigger Pin Price: $1.99 |
| 42 | 530023372 | Throttle Rod Price: $1.99 |
| 43 | 530023366 | Reed Price: $1.99 |
| 44 | 530023367 | Washer Price: Call Us |
| 45 | 530015139 | Screw Price: $1.99 |
| 46 | 530015257 | Screw Price: $1.99 |
| 47 | 530015256 | Screw Price: $1.99 |
| 48 | 530023369 | Air Filter Price: $1.00 |
| 49 | 530011548 | Handle & Carb. Hsg. Price: $3.33 |
| 50 | 530023388 | Dust Seal Price: $1.99 |
| 51 | 530026849 | Handguard Decal Price: $0.12 |
| 52 | 530027939 | Instruction Decal Price: $3.33 |
| 53 | 530015515 | Nut Price: $1.99 |
| 54 | 530025567 | Cup Washer Price: $1.99 |
| 55 | 530025566 | Isolator Price: $2.99 |
| 56 | 530028691 | Isolator Mtg. Bracket Price: $1.99 |
| 57 | 530025565 | Spacer Price: $0.32 |
| 58 | 530015505 | Screw Price: $1.99 |
| 59 | 530001642 | Lockwasher Price: $1.99 |
| 60 | 530024317 | Pad Price: $1.99 |
| 61 | 530028690 | Retainer Price: $0.99 |
| 62 | 530036548 | Rope Ring Ass'y. Price: $1.56 |
| 63 | 530038387 | Plater Price: $3.33 |
