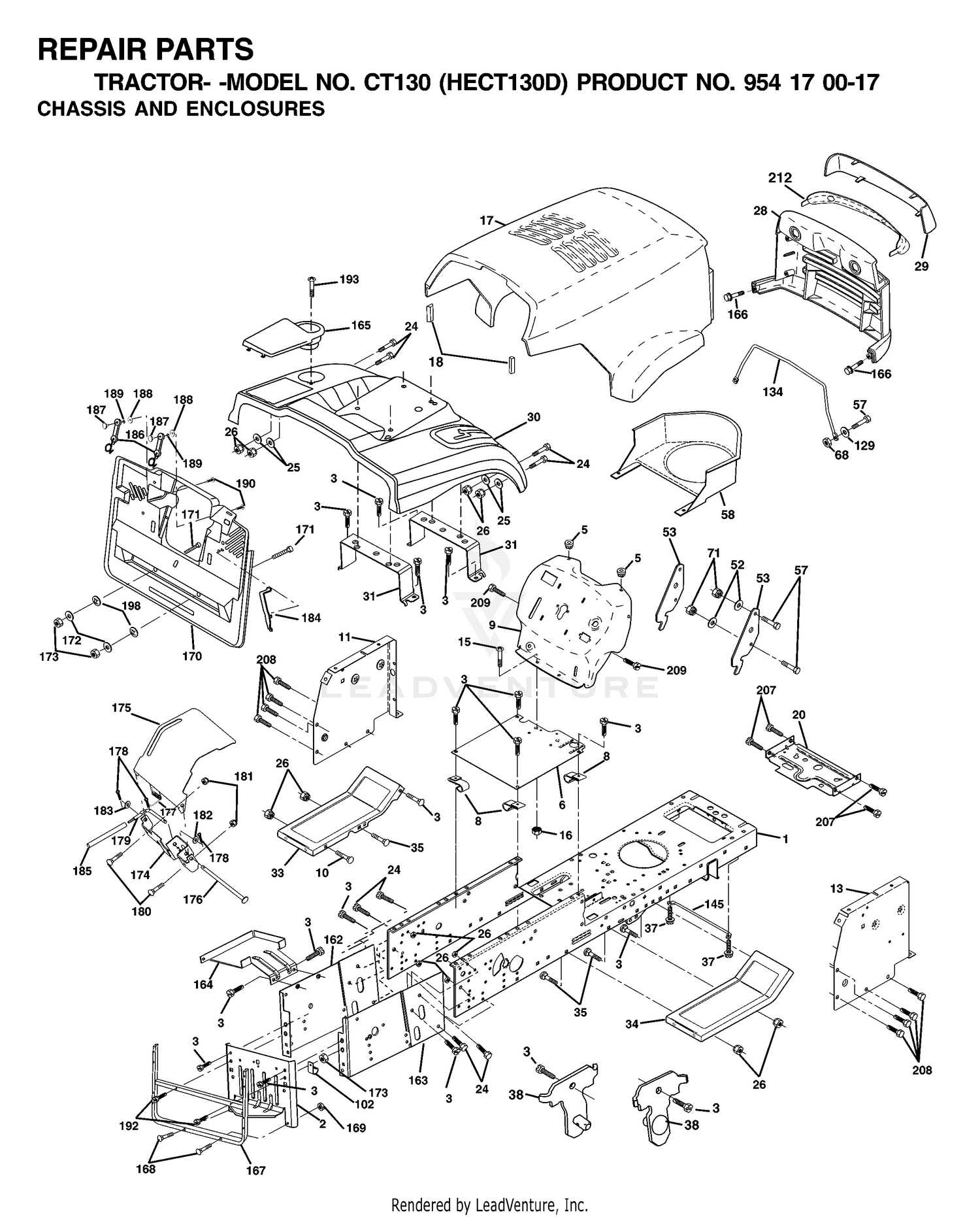

| Ref | Part Number | Description |
|---|
| 1 |
532169831 |
CHASSIS STAMPING Price: $80.52 |
| 1 |
93-4032 |
SHAFT-JACK Price: $245.00 |
| 2 |
532165606 |
DRAWBAR Price: $59.99 |
| 2 |
68-3220 |
KEY-STOCK Price: $4.60 |
| 3 |
67-7490 |
KEY-SQUARE Price: $2.30 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
3243-6 |
SCREW-SET, SQH Price: $4.23 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
532155923 |
SADDLE FLAT Price: $11.99 |
| 8 |
13-6260 |
ADJUSTING SCREW ASM Price: $77.62 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 9 |
13-5520 |
SPACER-SCREW, ADJUSTING Price: $23.41 |
| 9 |
532171796 |
DASH Price: $35.86 |
| 10 |
324-7 |
SCREW-HH Price: $1.79 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 11 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
13-0100 |
PIVOT-LINK, RAKE LIFT Price: $61.98 |
| 13 |
532172108 |
DASH PANEL RH Price: $7.57 |
| 14 |
3219-3 |
NUT-HEX Price: $0.34 |
| 15 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 15 |
874180512 |
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99 |
| 16 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 16 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 17 |
532156051 |
HOOD - LT/YT This part replaces 532165378. Price: $549.99 |
| 18 |
108-0930 |
LIFTING BELL CRANK-RH This part replaces 93-4440. Price: $337.37 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 19 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 20 |
3217-8 |
NUT-HEX Price: $1.34 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK This part replaces 532156437. Price: $9.99 |
| 21 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 22 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 23 |
3247-6 |
SCREW-SET Price: $1.02 |
| 24 |
13-4880-01 |
SPROCKET Price: $784.22 |
| 25 |
13-0480 |
SPRING Price: $30.51 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
13-3990-01 |
HANDLE-TRIP Price: $189.07 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 28 |
108-0928 |
LIFTING BELL CRANK-LH This part replaces 13-5500. Price: $337.37 |
| 28 |
532156880 |
GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532165379. Price: $256.99 |
| 29 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 29 |
532149777 |
LENS LT/PL HUSQVARNA This part replaces 532165380. Price: $24.99 |
| 30 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 30 |
532168428 |
GUARD Price: $599.99 |
| 31 |
13-4490-01 |
DISCONTINUED This part replaces 13-4490. Price: Call Us |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $5.99 |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
322-7 |
SCREW-HH Price: $0.89 |
| 33 |
532147203 |
FOOT REST LH Price: $9.15 |
| 34 |
532145243 |
FOOTREST LT/YT/GT RH This part replaces 532147202. Price: $9.15 |
| 34 |
63-5210-01 |
DRIVE SIDE SPDL WA Price: $150.53 |
| 35 |
56-6230 |
BEARING-ROLLER Price: $72.34 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 36 |
140-2208 |
PULLEY-DRIVE This part replaces 93-4033-01. Price: $163.75 |
| 37 |
13-3710 |
WASHER Price: $3.05 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR This part replaces 532169834. Price: $9.99 |
| 39 |
321-4 |
SCREW-HH Price: $0.99 |
| 40 |
93-4438 |
BRACKET WA - SUPPORT Price: $108.32 |
| 41 |
324-10 |
SCREW-HH Price: $1.97 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532150067 |
BRACKET PNT PICK OFF LT/PL Price: $1.64 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 68 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 71 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 102 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 129 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 134 |
532160219 |
ROD SUPPORT HOOD LT/PL HUS. Price: $7.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 162 |
532170256 |
Bracket Exten Chassis Lh CRD Price: Call Us |
| 163 |
532165673 |
BRACKET Price: $43.99 |
| 164 |
532165605 |
SUPPORT Price: $59.99 |
| 165 |
583687501 |
COVER.BATTERY.CRD.BLACK.LT This part replaces 532167979. Price: $11.99 |
| 166 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532164863. Price: $14.99 |
| 167 |
532165779 |
SUPPORT.ASM.BACKPLATE Price: $54.99 |
| 168 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 169 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 170 |
532175264 |
BACKPLATE ASM Price: $46.52 |
| 171 |
874520640 |
Bolt Hex 3/8-16 x 2-1/2 Gr. 5 Price: $5.17 |
| 172 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT Price: $4.99 |
| 174 |
532165939 |
BRACKET Price: $28.16 |
| 175 |
532166212 |
GUARD Price: $24.24 |
| 176 |
532192786 |
BAGGER.HINGE.PIN This part replaces 532128600. Price: $14.99 |
| 177 |
532132796 |
SPRING COVER LH Price: $5.99 |
| 178 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 179 |
532165942 |
ROD PIVOT Price: $7.99 |
| 180 |
596580801 |
Bolts This part replaces 874760516. Price: $2.99 |
| 181 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 182 |
532138200 |
WASHER Price: $3.99 |
| 183 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 184 |
532174662 |
BRACKET.ACTUATOR.BAGGER.SRD Price: $4.99 |
| 185 |
532165940 |
TUBE LEVER Price: $4.99 |
| 186 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 187 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 188 |
819061216 |
WASHER Price: $3.99 |
| 189 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 190 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 192 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 193 |
817070412 |
Screw Truss 1/4-20 x 3/4 Tap/R Price: $2.34 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532156195 |
INSERT LENS REFLECTOR Price: $6.99 |
