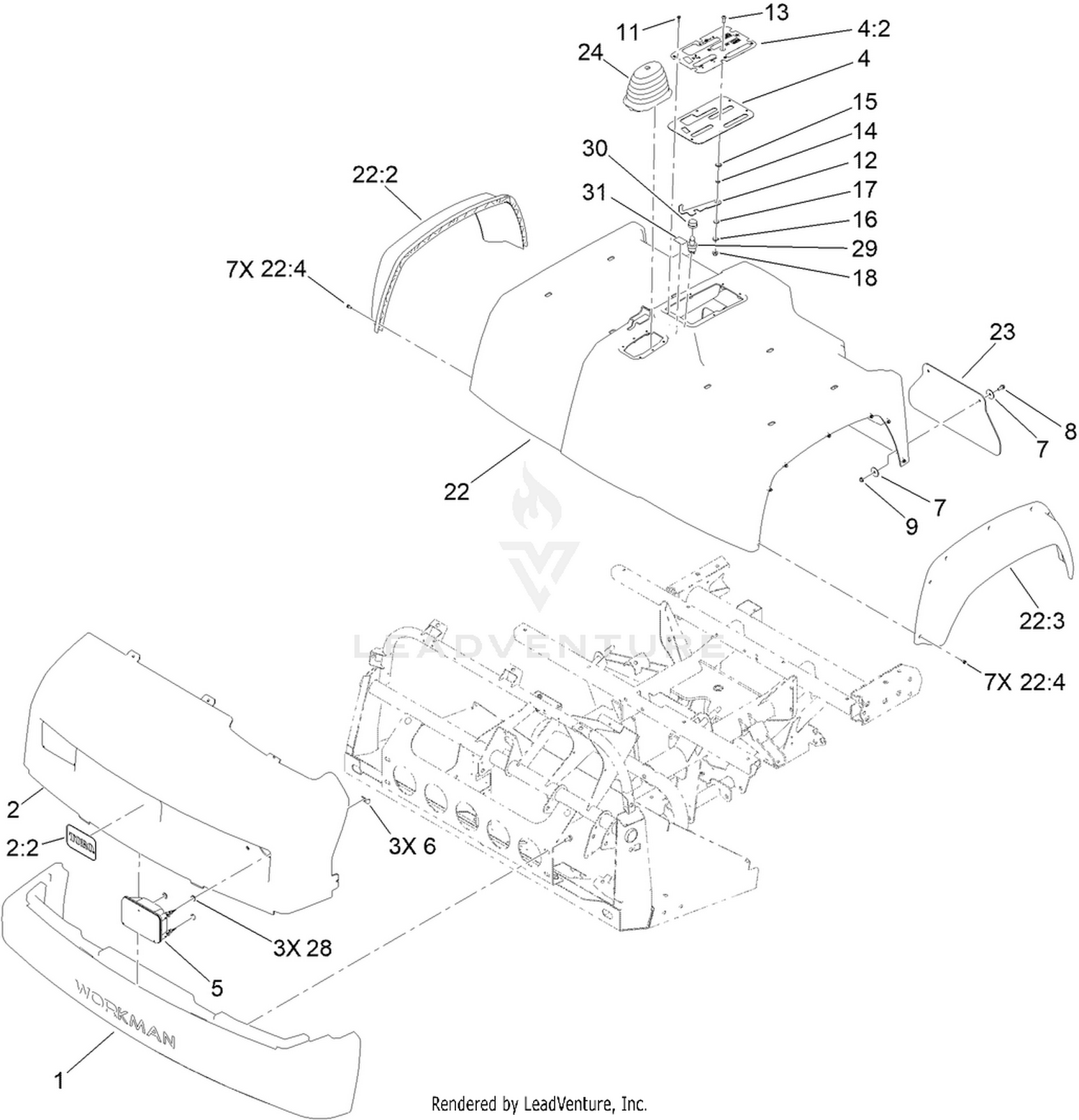

Bumper, Hood and Seat Base Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 112-3185 | BUMPER Price: $555.37 |
| 2 | 145-2284 | HOOD ASM Price: $281.67 |
| 4 | 106-7886 | CONTROL PLATE ASM Price: $65.51 |
| 5 | 138-9260 | HEADLIGHT ASM Price: $127.40 |
| 6 | 114-8341 | CLIP-SPEED Price: $0.88 |
| 7 | 3256-55 | WASHER-FLAT Price: $3.69 |
| 8 | 3234-4 | SCREW-HHF Price: $0.50 |
| 9 | 104-7201 | NUT-HF Price: $0.69 |
| 11 | 98-1375 | SCREW-HWH Price: $1.45 |
| 12 | 106-7984 | LEVER-DETENT Price: $10.49 |
| 13 | 3274-55 | SCREW-HSBH Price: $3.19 |
| 14 | 82-4240 | SPACER-BEARING Price: $6.49 |
| 15 | 94-8196 | WASHER-NYLON Price: $4.44 |
| 16 | 3290-221 | WASHER-SPRING Price: $3.12 |
| 17 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 18 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 22 | 133-0566 | SEATBASE ASM Price: $548.63 |
| 23 | 106-2378 | MUDFLAP Price: $33.33 |
| 24 | 117-8063 | BOOT-SHIFT Price: $26.52 |
| 28 | 112-6957 | WASHER-HARDENED Price: $1.37 |
| 29 | 112-3324 | SWITCH-HORN Price: $39.90 |
| 30 | 112-3313 | NUT-WEATHERPROOF Price: $5.23 |
