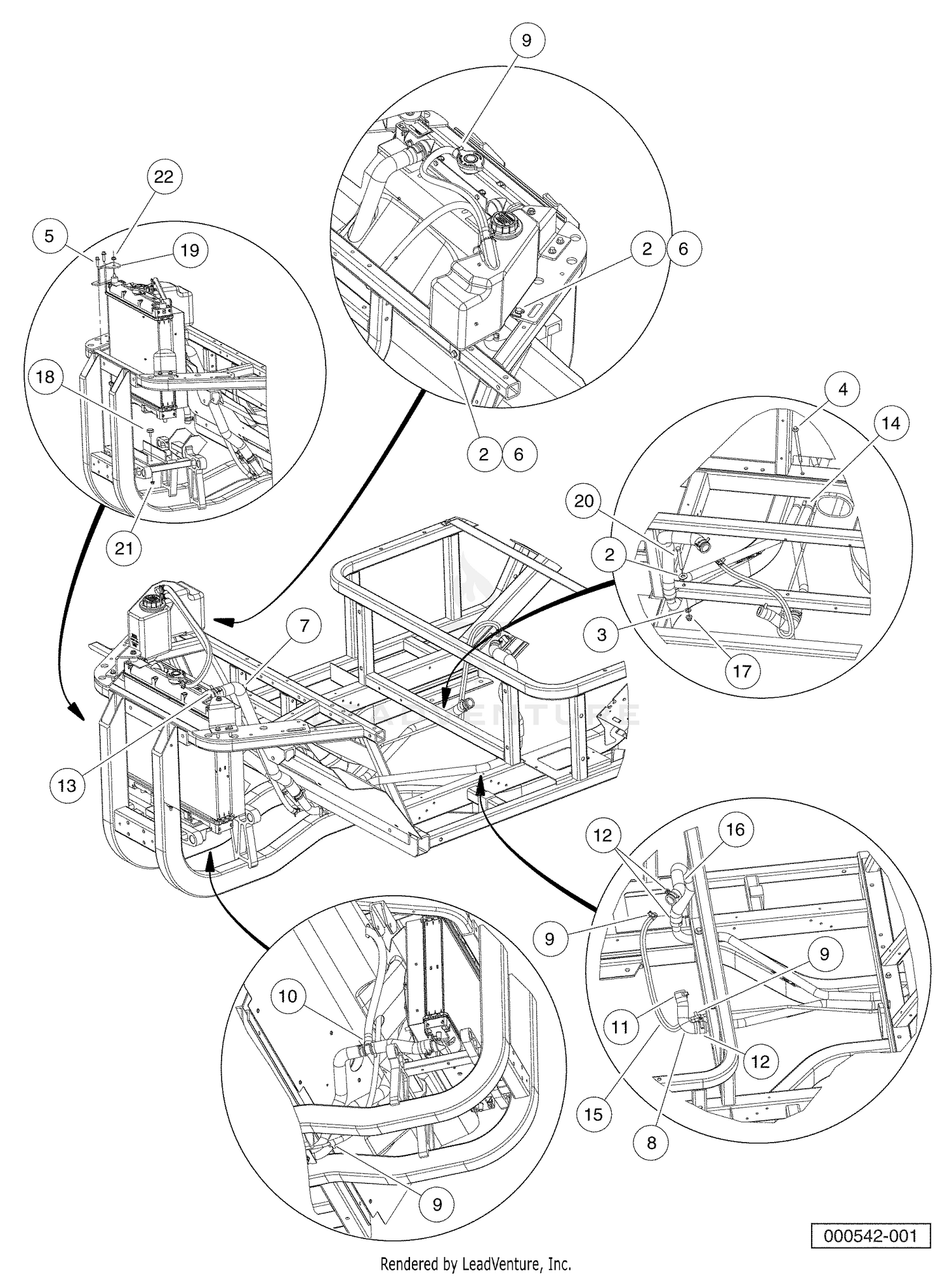

| Ref | Part Number | Description |
|---|
| 1 |
93-6880 |
SEE PB #941 Price: Call Us |
| 2 |
603003045 |
WASHER, 5/16 TYPE B FLAT Price: $1.99 |
| 2 |
93-6881 |
RIM ASM Price: $152.01 |
| 3 |
340-6 |
FITTING-STRAIGHT Price: $18.79 |
| 3 |
603004501 |
Spacer, 0.720" Price: Call Us |
| 4 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 4 |
603003584 |
BOLT-HEX FL, M8 X 1.25 X 135 Price: $3.99 |
| 5 |
10-6870-03 |
HUB-WHEEL This part replaces 10-6870. Price: $150.01 |
| 5 |
603000869 |
SCREW-M8 X 1.25 30, TRI, HX F Price: $1.99 |
| 6 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 6 |
603003559 |
M8-1.25X20 TAPTITE Price: $3.99 |
| 7 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 7 |
603000927 |
HOSE, COOLANT UPPER RAD Price: $64.99 |
| 8 |
603000928 |
HOSE, COOLANT LOWER ENG Price: $27.99 |
| 8 |
75-9990 |
HYD MOTOR ASM Price: $831.33 |
| 9 |
603000970 |
CLAMP, HOSE, CTB 15MM Price: $4.99 |
| 9 |
93-6782-01 |
FORK-WHEEL, REAR This part replaces 93-6782. Price: $916.89 |
| 10 |
325-11 |
SCREW-HH Price: $1.93 |
| 10 |
603000971 |
CLAMP, HOSE, CTB 22MM Price: $5.99 |
| 11 |
3220-3 |
NUT-HJ Price: $0.28 |
| 11 |
603000972 |
CLAMP, HOSE, CTB 30MM Price: $6.99 |
| 12 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 12 |
603000973 |
CLAMP, HOSE, CTB 35MM Price: $6.99 |
| 13 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 13 |
603000974 |
CLAMP, HOSE, CTB 38MM Price: $7.99 |
| 14 |
322-9 |
SCREW-HH Price: $3.09 |
| 14 |
603001003 |
CLAMP, BAR Price: $7.99 |
| 15 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 15 |
603001016 |
HOSE, VENT TUBE TO ENG, COOLNT Price: $19.99 |
| 16 |
603001155 |
HOSE, COOLANT, RETURN, ENGINE Price: $44.99 |
| 16 |
75-7730 |
WASHER-THRUST Price: $2.88 |
| 17 |
325-6 |
SCREW-HH Price: $1.42 |
| 17 |
603001308 |
LOCK NUT, FLG M8 X 1.25 NYLON Price: $3.99 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 18 |
603003586 |
BUMPER, 19MM STUD Price: $17.99 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
603003587 |
BRACKET, RADIATOR SUPPORT Price: $22.99 |
| 20 |
603004502 |
Bolt, M8 X 1.25 X 110 Price: Call Us |
| 20 |
69-9760 |
COVERPLATE Price: $5.38 |
| 21 |
56-7976 |
CLAMP-TUBE Price: $2.44 |
| 21 |
603003588 |
NUT FLG, M6X1 SERRATED Price: $1.99 |
| 22 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 23 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 24 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 25 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 26 |
93-6843 |
HYD HOSE ASM Price: $194.30 |
| 27 |
237-30 |
O-RING Price: $2.50 |
| 27 |
61-2070-03 |
TUBE-STEERING This part replaces 61-2070. Price: $89.00 |
