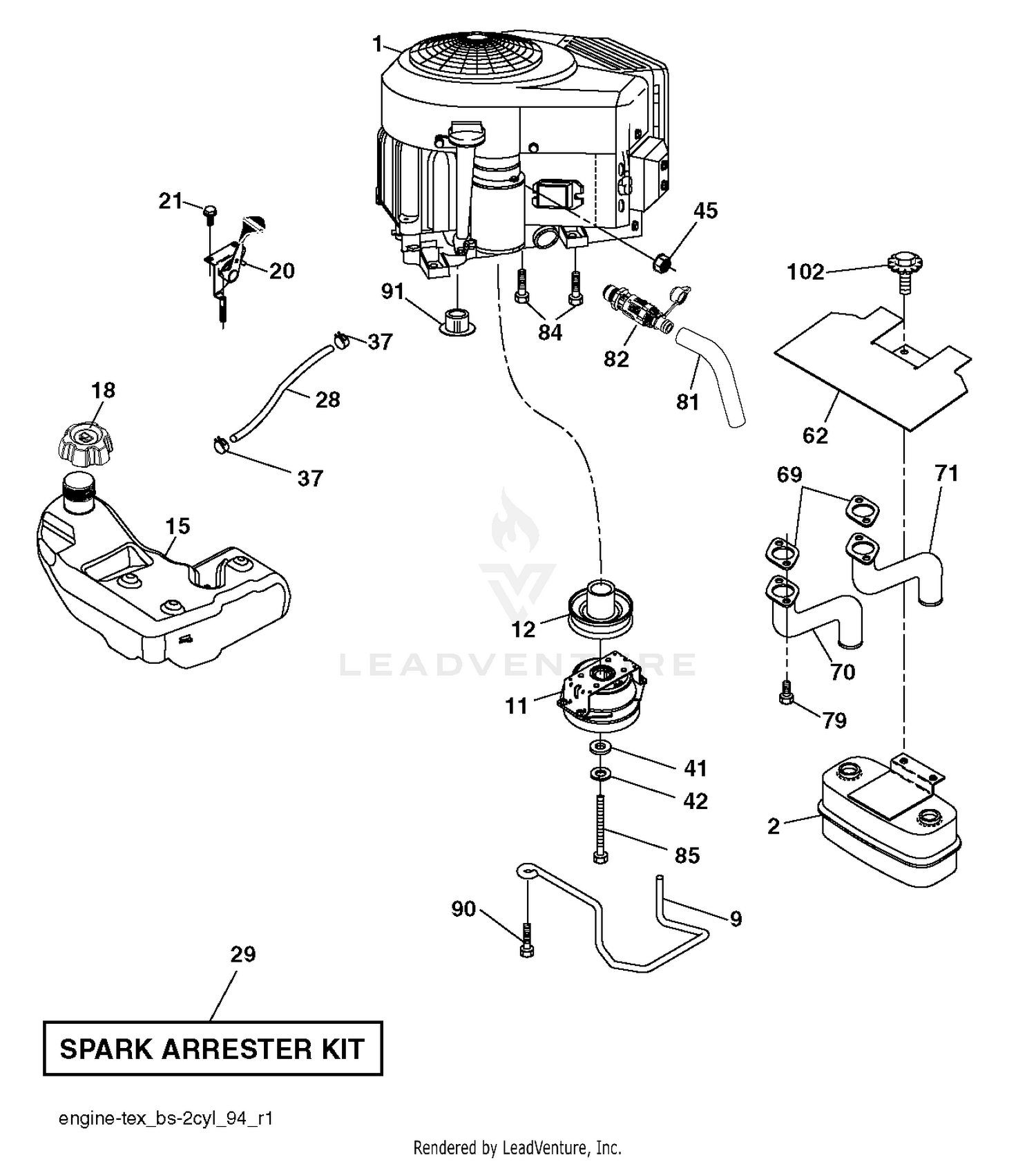

| Ref | Part Number | Description |
|---|
| 2 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 2 |
532445962 |
MUFFLER.ASM.TWN.EXTNDED.DFLCTR Price: $54.99 |
| 3 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 4 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 5 |
115-7263 |
SCREW-LOCK, BEARING Price: $17.70 |
| 6 |
106-2648-01 |
BEDBAR Price: $367.64 |
| 7 |
119-4150 |
WASHER-FLAT Price: $0.64 |
| 8 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 9 |
117-9493 |
BOLT-BEDBAR Price: $5.50 |
| 9 |
584908001 |
KEEPER BELT ENGINE Price: $2.99 |
| 10 |
140-9234 |
NUT-HEX LOCK This part replaces 119-4154. Price: $0.92 |
| 11 |
137-8511 |
ES REEL+,LOW DRAG (21), 8 BLD This part replaces 119-4103. Price: $529.90 |
| 11 |
532414737 |
KIT.SVC.CLTCH.OG.1.125" This part replaces 532179335. Price: $229.99 |
| 12 |
119-4153 |
RUBBER BUSHING ASM Price: $6.66 |
| 12 |
532194343 |
PULLEY ENGINE Price: $44.99 |
| 13 |
52-2890 |
BUSHING-NYLON Price: $2.49 |
| 14 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 15 |
108-4302 |
BEDKNIFE-TOURNAMENT, EXTENDED Price: $60.45 |
| 15 |
108-4303 |
BEDKNIFE-MICROCUT, EXTENDED Price: $68.13 |
| 15 |
115-1880 |
BEDKNIFE-EDGEMAX, MICROCUT Price: $129.33 |
| 15 |
115-1881 |
BEDKNIFE-EDGEMAX, TOURNAMENT Price: $129.33 |
| 15 |
137-6097 |
BEDKNIFE-FAIRWAY This part replaces 63-8600. Price: $61.01 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $99.99 |
| 15 |
93-4262 |
BEDKNIFE-MICROCUT Price: $58.41 |
| 15 |
93-4263 |
BEDKNIFE-TOURNAMENT CUT Price: $62.54 |
| 15 |
93-4264 |
BEDKNIFE-LOW CUT Price: $58.41 |
| 18 |
584248701 |
CAP.ASSY.FUEL.3".N-EPA.BLK.428 Price: $7.99 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN. Price: $19.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 28 |
587044664 |
HOSE.1/4".FUEL.LINE.64".LENGTH Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $4.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 62 |
532434017 |
SHIELD.HEAT.MUFFLER Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
532159955 |
RP.EXHAUST.TUBE.LH.BS/TWIN This part replaces 581881101. Price: $27.99 |
| 71 |
532160589 |
RP.EXHAUST.TUBE.RH.BS/TWIN This part replaces 581881001. Price: $39.99 |
| 79 |
532183906 |
SCREW.SOCKET.HEAD.5/16-18 Price: $3.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
532179953 |
BOLT HEX 7/16-20 X 3.75 GR. 5 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $2.99 |
