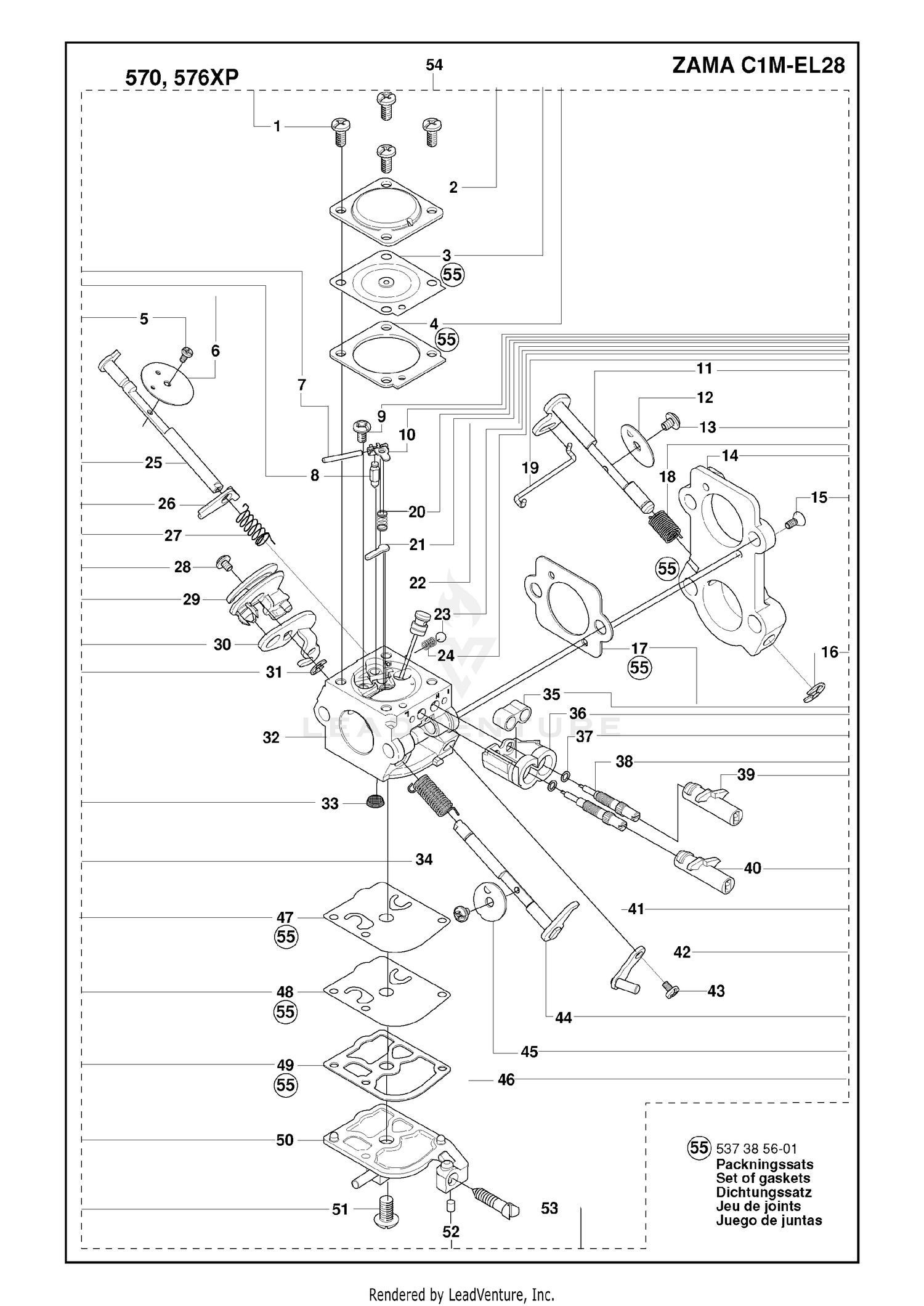

Carburetor Details
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503480501 | SCREW Price: $2.99 |
| 2 | 537383701 | COVER Price: $11.99 |
| 3 | 537383501 | DIAPHRAGM Price: $22.99 |
| 4 | 537383601 | GASKET Price: $4.99 |
| 5 | 503481801 | SCREW Price: $2.99 |
| 6 | 537266801 | CHOKE FLAP Price: $4.99 |
| 7 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 8 | 503479701 | INLET NEEDLE Price: $8.99 |
| 9 | 503480101 | SCREW Price: $2.99 |
| 10 | 503665901 | LEVER Price: $3.99 |
| 11 | 544237801 | SHAFT Price: $19.99 |
| 12 | 537177001 | THROTTLE FLAP Price: $14.99 |
| 13 | 503481801 | SCREW Price: $2.99 |
| 14 | 580735801 | CARBURETOR This part replaces 544199801. Price: $129.99 |
| 15 | 537385101 | SCREW Price: $2.99 |
| 16 | 537385001 | CLIP Price: $4.99 |
| 17 | 537385301 | GASKET Price: $3.99 |
| 18 | 537385501 | SPRING Price: $3.99 |
| 19 | 544237901 | ROD Price: $8.99 |
| 20 | 537383401 | SPRING Price: $3.99 |
| 21 | 503535601 | PLUG Price: $3.99 |
| 22 | 544237701 | JET Price: $14.99 |
| 23 | 537012501 | BALL Price: $2.99 |
| 24 | 537012601 | SPRING Price: $2.99 |
| 25 | 537384201 | CHOKE SHAFT Price: $17.99 |
| 26 | 544238001 | LEVER Price: $7.99 |
| 27 | 537384401 | SPRING Price: $3.99 |
| 28 | 503479001 | SCREW Price: $2.99 |
| 29 | 537213701 | LEVER Price: $6.99 |
| 30 | 537384101 | LEVER Price: $4.99 |
| 31 | 537385201 | CLIP Price: $2.99 |
| 32 | 580735801 | CARBURETOR This part replaces 544199801. Price: $129.99 |
| 33 | 503535701 | STRAINER Price: $3.99 |
| 34 | 537382901 | SPRING Price: $3.99 |
| 35 | 537274201 | SLEEVE Price: $5.99 |
| 36 | 503903401 | SLEEVE Price: $6.99 |
| 37 | 503974001 | WASHER Price: $2.99 |
| 38 | 537383801 | NEEDLE HIGH SPEED Price: $14.99 |
| 39 | 537384701 | LIMITER Price: $6.99 |
| 40 | 537384601 | LIMITER Price: $4.99 |
| 41 | 537383901 | LOW SPEED NEEDLE Price: $9.99 |
| 42 | 537384501 | LEVER Price: $17.99 |
| 43 | 503479001 | SCREW Price: $2.99 |
| 44 | 537382801 | THROTTLE SHAFT Price: $24.99 |
| 45 | 537383001 | FLAP Price: $11.99 |
| 46 | 503481801 | SCREW Price: $2.99 |
| 47 | 537383101 | PUMP DIAPHRAGM Price: $11.99 |
| 48 | 537403301 | DIAPHRAGM Price: $9.99 |
| 49 | 537020101 | GASKET Price: $3.99 |
| 50 | 537383201 | COVER Price: $24.99 |
| 51 | 503479601 | SCREW Price: $2.99 |
| 52 | 503481101 | PLUG Price: $3.99 |
| 53 | 537383301 | SCREW Price: $6.99 |
