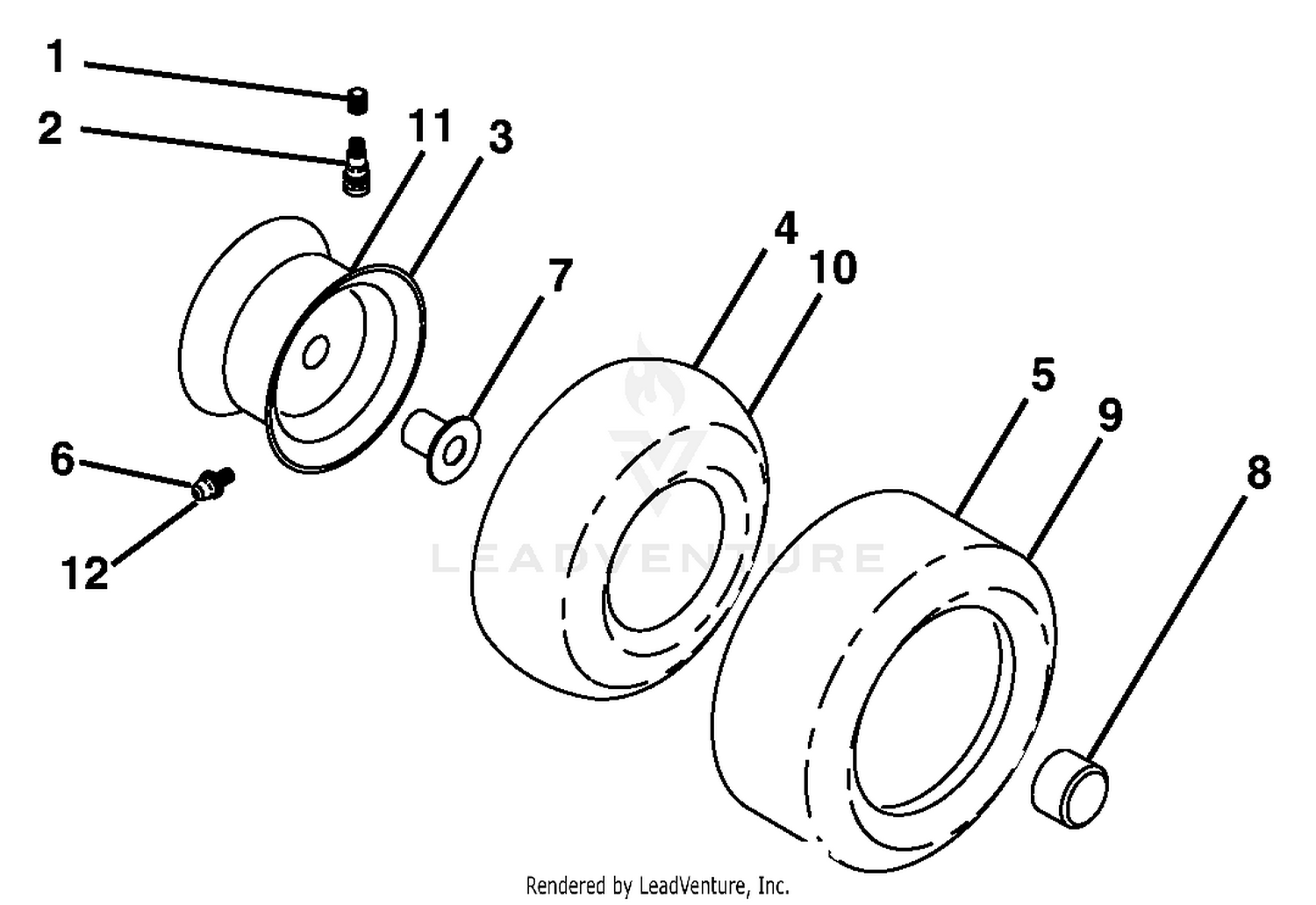

| Ref | Part Number | Description |
|---|
| 1 |
59192 |
Cap, Valve, Tire Price: Call Us |
| 1 |
93-7773 |
SCREW-HHF Price: $2.10 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
65139 |
Stem, Valve Price: Call Us |
| 3 |
105-0087 |
FLANGE-FILLER, OIL Price: $54.17 |
| 3 |
106228X421 |
Rim Assembly, Front Price: Call Us |
| 4 |
98-7430 |
O-RING Price: $1.95 |
| 5 |
106-4399 |
FAN-SUPPORT ASM Price: $817.55 |
| 5 |
106230X |
Tire, Front Price: Call Us |
| 6 |
3272-16 |
PIN-COTTER Price: $0.31 |
| 7 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 8 |
43-3690 |
SHAFT-FAN Price: $469.68 |
| 9 |
105588X |
Tire, Rear Price: Call Us |
| 9 |
3233-14 |
SCREW-CARR Price: $1.95 |
| 10 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 11 |
105-2501-03 |
ENGINE MOUNT ASM Price: $145.54 |
| 11 |
106277X421 |
Rim Assembly, Rear Price: Call Us |
| 12 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 12 |
6856M |
Fitting, Grease Price: Call Us |
| 13 |
105-2524 |
PULLEY Price: $85.88 |
| 14 |
3-6803 |
WASHER-ADJUSTING Price: $0.75 |
| 15 |
29-8910 |
WASHER Price: $0.75 |
| 16 |
32136-3 |
NUT-SHH Price: $1.22 |
| 17 |
105-3699 |
PULLEY-IDLER, FLAT Price: $97.83 |
| 18 |
32128-23 |
NUT-HF Price: $1.51 |
| 19 |
105-3693 |
BELT-FAN Price: $36.77 |
| 20 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 21 |
3274-106 |
SCREW-HSH Price: $5.77 |
| 22 |
104-3407-03 |
PULLEY-FLYWHEEL Price: $149.87 |
| 23 |
105-2520-03 |
ENGINE MOUNT ASM Price: $118.11 |
| 24 |
32128-37 |
NUT-HF Price: $3.63 |
| 25 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 26 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 27 |
53-9480 |
WASHER-SNUBBER Price: $3.87 |
| 28 |
324-11 |
SCREW-HH Price: $3.05 |
| 29 |
33014-00 |
NUT-HEX Price: $0.25 |
| 30 |
33004-00 |
NUT-HF Price: $0.34 |
| 31 |
56-2140 |
SCREW-HH Price: $4.17 |
| 32 |
105-0058 |
SPACER-IDLER, FAN Price: $6.72 |
| 33 |
105-2502 |
STUD Price: $5.97 |
| 34 |
105-4263 |
SWIVEL-CABLE, THROTTLE Price: $36.98 |
| 35 |
105-2507-03 |
CRADLE-SUPPORT, TUBE Price: $180.52 |
| 36 |
68-0020 |
SPACER-PIVOT, IDLER Price: $11.99 |
| 37 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 38 |
25-8640 |
SCREW-HH Price: $1.09 |
