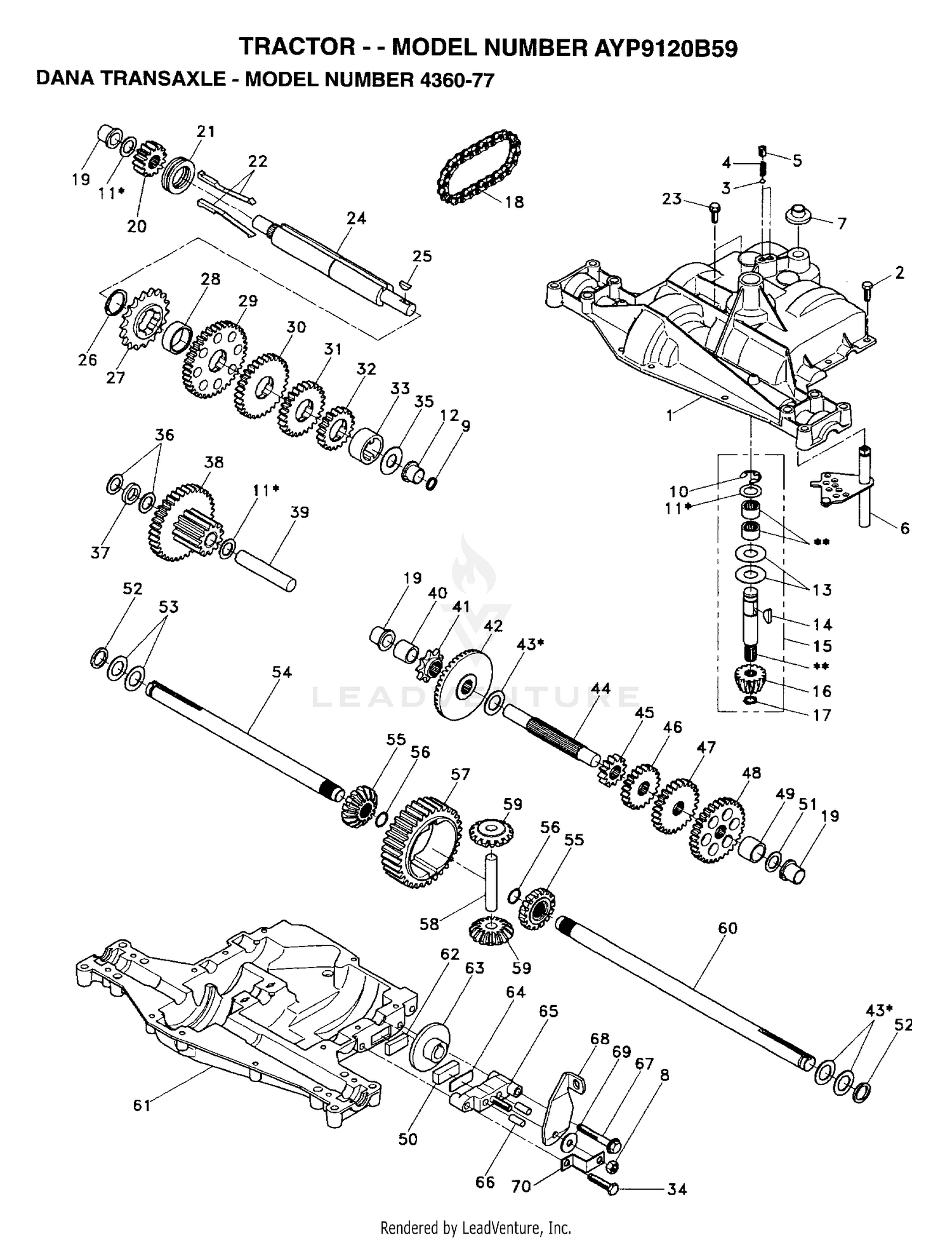

| Ref | Part Number | Description |
|---|
| 1 |
5305D |
HOUSING, UPPER Price: Call Us |
| 1 |
76-5610 |
PINION-OUTPUT Price: $436.03 |
| 2 |
1919 |
SCREW Price: Call Us |
| 3 |
5112 |
BALL, DETENT Price: Call Us |
| 3 |
76-5630 |
GEAR-SPUR Price: $109.36 |
| 4 |
3626 |
SPRING, DETENT Price: Call Us |
| 4 |
76-5640 |
GASKET-CASE & COVER Price: $57.02 |
| 5 |
3623 |
SCREW, SET Price: Call Us |
| 5 |
76-5650 |
WASHER-THRUST Price: $4.91 |
| 6 |
4731 |
SHIFTER ASSEMBLY Price: Call Us |
| 6 |
95-7236 |
PIN - DOWEL This part replaces 76-5660. Price: $3.56 |
| 7 |
5024 |
BOOT, SHIFTER Price: Call Us |
| 7 |
76-5670 |
SEAL-OIL Price: $27.67 |
| 8 |
3847 |
LOCKNUT 5/16-24 Price: Call Us |
| 9 |
5416 |
SEAL, OIL Price: Call Us |
| 9 |
76-5690 |
WASHER-THRUST Price: $7.71 |
| 10 |
1106 |
RING, RETAINING Price: Call Us |
| 10 |
76-5700 |
BEARING-THRUST Price: $21.09 |
| 11 |
4689 |
ASSY, KIT, SHIM .625 SHAFT Price: Call Us |
| 11 |
76-5710 |
PLUG-DRAIN, MAGNETIC Price: $9.38 |
| 12 |
5415 |
BEARING, FLANGE Price: Call Us |
| 12 |
76-5720 |
SCREW-HWHTF Price: $3.07 |
| 13 |
3876 |
WASHER, PLAIN .632 X 1.38 X .046 Price: Call Us |
| 14 |
1746 |
KEY, WOODRUFF, #9 Price: Call Us |
| 14 |
76-5680 |
WASHER-THRUST Price: $13.21 |
| 15 |
4551 |
ASSEMBLY, KIT, INPUT SHAFT Price: Call Us |
| 15 |
92-0639 |
TRANSAXLE CASE ASM Price: $1,083.47 |
| 16 |
3590 |
PINION, BEVEL, 14 TEETH Price: Call Us |
| 16 |
76-5760 |
TRANSAXLE COVER ASM Price: $1,125.72 |
| 17 |
3624 |
RING, RETAINING Price: Call Us |
| 17 |
92-0642 |
GEAR-OUTPUT Price: $362.07 |
| 18 |
3625 |
CHAIN, 24 PITCHES Price: Call Us |
| 18 |
76-5780 |
GEAR-SPUR Price: $158.15 |
| 19 |
1542 |
BEARING, FLANGE Price: Call Us |
| 19 |
92-0644 |
GEAR-CLUSTER Price: $570.98 |
| 20 |
5402 |
GEAR, SPUR, 14 TEETH Price: Call Us |
| 20 |
92-0641 |
SHAFT-COUNTER Price: $258.16 |
| 21 |
5303 |
COLLAR, CLUTCH Price: Call Us |
| 21 |
92-0645 |
SHIFTER-GEAR & SHAFT Price: $633.78 |
| 22 |
4758 |
ASSEMBLY, KIT, CLUTCH KEYS Price: Call Us |
| 22 |
76-5820 |
SCREW-HHF Price: $4.40 |
| 23 |
5131 |
SCREW TAPPING WITH SEALER Price: Call Us |
| 23 |
76-5830 |
BALL-STEEL Price: $3.25 |
| 24 |
5403 |
SHAFT, INTERMEDIATE Price: Call Us |
| 24 |
95-7202 |
SPRING This part replaces 76-5840. Price: $5.26 |
| 25 |
1375 |
KEY, WOODRUFF, #61 Price: Call Us |
| 25 |
76-5850 |
DISCONTINUED Price: Call Us |
| 26 |
3627 |
RING, RETAINING Price: Call Us |
| 27 |
3830 |
SPROCKET, 18 TEETH Price: Call Us |
| 28 |
3841 |
SPACER Price: Call Us |
| 28 |
4286 |
ASSY GEAR COMB 12&35 TEETH Price: Call Us |
| 29 |
5365 |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 29 |
76-5890 |
RING-RETAINING Price: $6.21 |
| 30 |
3867 |
GEAR, SPUR, 30 TEETH Price: Call Us |
| 30 |
76-5900 |
FORK-SHIFT Price: $38.25 |
| 31 |
3783 |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 31 |
92-0647 |
ROD-SHIFT, HI-LOW Price: $12.09 |
| 32 |
5026 |
SPACER 1.133 X 1.50 X .750 Price: Call Us |
| 32 |
99-7567 |
DIFFERENTIAL ASM Price: $1,045.63 |
| 33 |
3869 |
GEAR, SPUR, 22 TEETH Price: Call Us |
| 34 |
3724 |
SCREW TAPPING Price: Call Us |
| 35 |
3628 |
WASHER, PLAIN .640 X 1.37 X .061 Price: Call Us |
| 36 |
1423 |
WASHER, PLAIN .632 X 1.00 X .026 Price: Call Us |
| 36 |
76-5960 |
CARRIER-DIFFERENTIAL Price: $278.78 |
| 37 |
104-0195 |
BEARING-BALL, HI-CAP This part replaces 92-0646. Price: $63.13 |
| 37 |
3422 |
SPACER .630 X 1.00 X .169 Price: Call Us |
| 38 |
76-5980 |
SCREW-HHF Price: $13.37 |
| 39 |
3967 |
SHAFT, IDLER Price: Call Us |
| 39 |
98-3801 |
WASHER Price: $2.91 |
| 40 |
3901 |
SPACER .635 X .875 X .755 Price: Call Us |
| 40 |
76-5990 |
CARRIER-DIFFERENTIAL Price: $290.15 |
| 41 |
3645 |
SPROCKET, 9 TEETH Price: Call Us |
| 42 |
3853 |
GEAR, BEVEL, 42 TEETH Price: Call Us |
| 42 |
76-6010 |
SPACER Price: $18.94 |
| 43 |
4691 |
ASSY, KIT, SHIM .750 SHAFT Price: Call Us |
| 44 |
3882 |
SHAFT, DRIVE Price: Call Us |
| 44 |
76-6030 |
SEAL-OIL Price: $17.61 |
| 45 |
5364 |
GEAR SPUR, 12 TEETH Price: Call Us |
| 45 |
76-6040 |
PLUG-PIPE Price: $3.65 |
| 46 |
3866 |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 46 |
84-0080 |
DISCONTINUED Price: Call Us |
| 47 |
3719 |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 47 |
76-5680 |
WASHER-THRUST Price: $13.21 |
| 48 |
3683 |
GEAR, SPUR, 31 TEETH Price: Call Us |
| 48 |
76-5740 |
WASHER-THRUST Price: $19.72 |
| 49 |
3684 |
SPACER .781 X 1.00 X .750 Price: Call Us |
| 49 |
84-0090 |
WASHER-THRUST Price: $19.13 |
| 50 |
3907 |
PUCK, FRICTION Price: Call Us |
| 50 |
84-0130 |
WASHER-THRUST Price: $18.77 |
| 51 |
1145 |
WASHER, PLAIN .632 X 1.00 X .060 Price: Call Us |
| 52 |
5130 |
WASHER, NEOPRENE Price: Call Us |
| 53 |
3184 |
WASHER, PLAIN .758 X 1.25 X .031 Price: Call Us |
| 54 |
3880 |
AXLE LEFT HAND Price: Call Us |
| 55 |
3780 |
GEAR, MITER, 15 TEETH Price: Call Us |
| 56 |
3656 |
RING, RETAINING Price: Call Us |
| 57 |
3839 |
GEAR, SPUR, 32 TEETH Price: Call Us |
| 58 |
3919 |
SHAFT, CROSS Price: Call Us |
| 59 |
3781 |
GEAR, MITER, 15 TEETH Price: Call Us |
| 60 |
3881 |
AXLE, R.H. Price: Call Us |
| 61 |
5304-E |
HOUSING, LOWER Price: Call Us |
| 62 |
3920 |
PUCK, FRICTION Price: Call Us |
| 63 |
3276 |
DISC, BRAKE Price: Call Us |
| 64 |
3758 |
SPACER Price: Call Us |
| 65 |
3916 |
JAW, BRAKE Price: Call Us |
| 66 |
3843 |
PIN, DOWEL Price: Call Us |
| 67 |
5120 |
SCREW, SELF-TAPPING Price: Call Us |
| 68 |
5285 |
LEVER ACTUATING Price: Call Us |
| 69 |
3760 |
WASHER, PLAIN .321 X 1.00 X .055 Price: Call Us |
| 70 |
3917 |
BRACKET, ANTI-ROTATION Price: Call Us |
