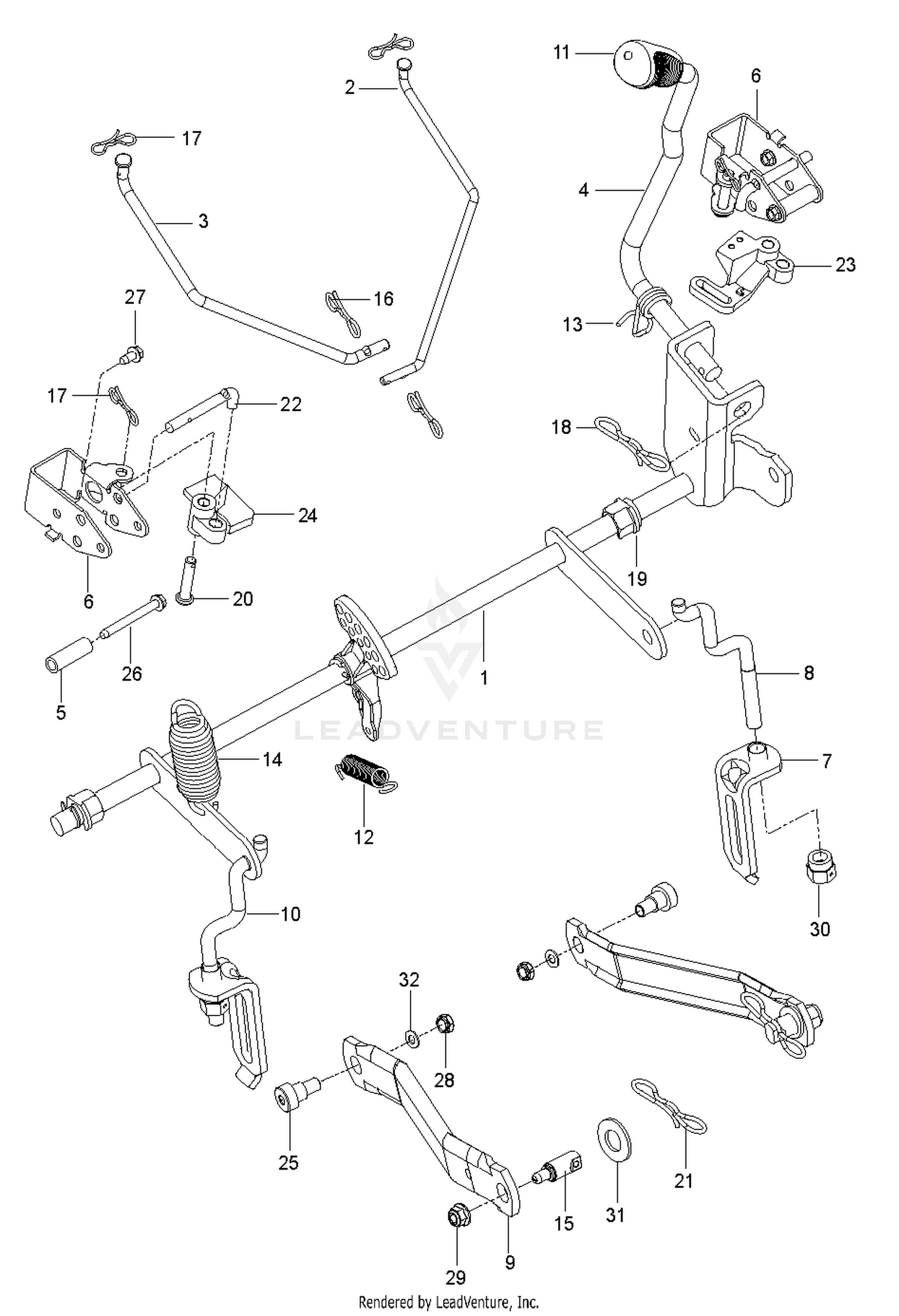

| Ref | Part Number | Description |
|---|
| 1 |
587623101 |
SHAFT.ASM.RZ.DECK.LIFT.SRV Price: $44.99 |
| 2 |
586457101 |
LINK.BRAKE.PARK.UPPER.LH Price: $8.99 |
| 3 |
586457201 |
LINK.BRAKE.PARK.UPPER.RH Price: $8.99 |
| 4 |
587622901 |
LIFT.LEVER.ASM.RZ.SERVICE Price: $11.99 |
| 5 |
580486102 |
Spacers This part replaces 580486101. Price: $3.99 |
| 6 |
585682102 |
BRACKET.BELLCRANK.PBRAKE X431 Price: $6.99 |
| 7 |
587623001 |
LINK.ASM.RZ.LIFT.SERVICE This part replaces 522858601. Price: $9.99 |
| 8 |
587623001 |
LINK.ASM.RZ.LIFT.SERVICE This part replaces 525847201. Price: $9.99 |
| 9 |
536050602 |
LINK FIXED MOWER DRAWBAR BLACK This part replaces 587140502. Price: $5.99 |
| 10 |
587623001 |
LINK.ASM.RZ.LIFT.SERVICE Price: $9.99 |
| 11 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 532445060. Price: $7.99 |
| 12 |
547190203 |
BRAKE SPRING This part replaces 586867601. Price: $2.99 |
| 13 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 14 |
596482001 |
Springs This part replaces 539118762. Price: $6.99 |
| 16 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 17 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 18 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 19 |
510184901 |
PLASTIC NUT Price: $4.99 |
| 20 |
585701401 |
PIN.5.16X1.5 Price: $2.99 |
| 21 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 22 |
585682001 |
ROD.PUSH.BRAKE Price: $2.99 |
| 23 |
586457401 |
BELLCRANK.LH Price: $5.99 |
| 24 |
586457501 |
BELLCRANK.RH Price: $5.99 |
| 25 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 26 |
586561301 |
SCREW THD;ROLL;1/4-20 X 2.25 Price: $12.99 |
| 27 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 28 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 29 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 30 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 31 |
596320001 |
Washers This part replaces 819212113. Price: $2.99 |
| 32 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
