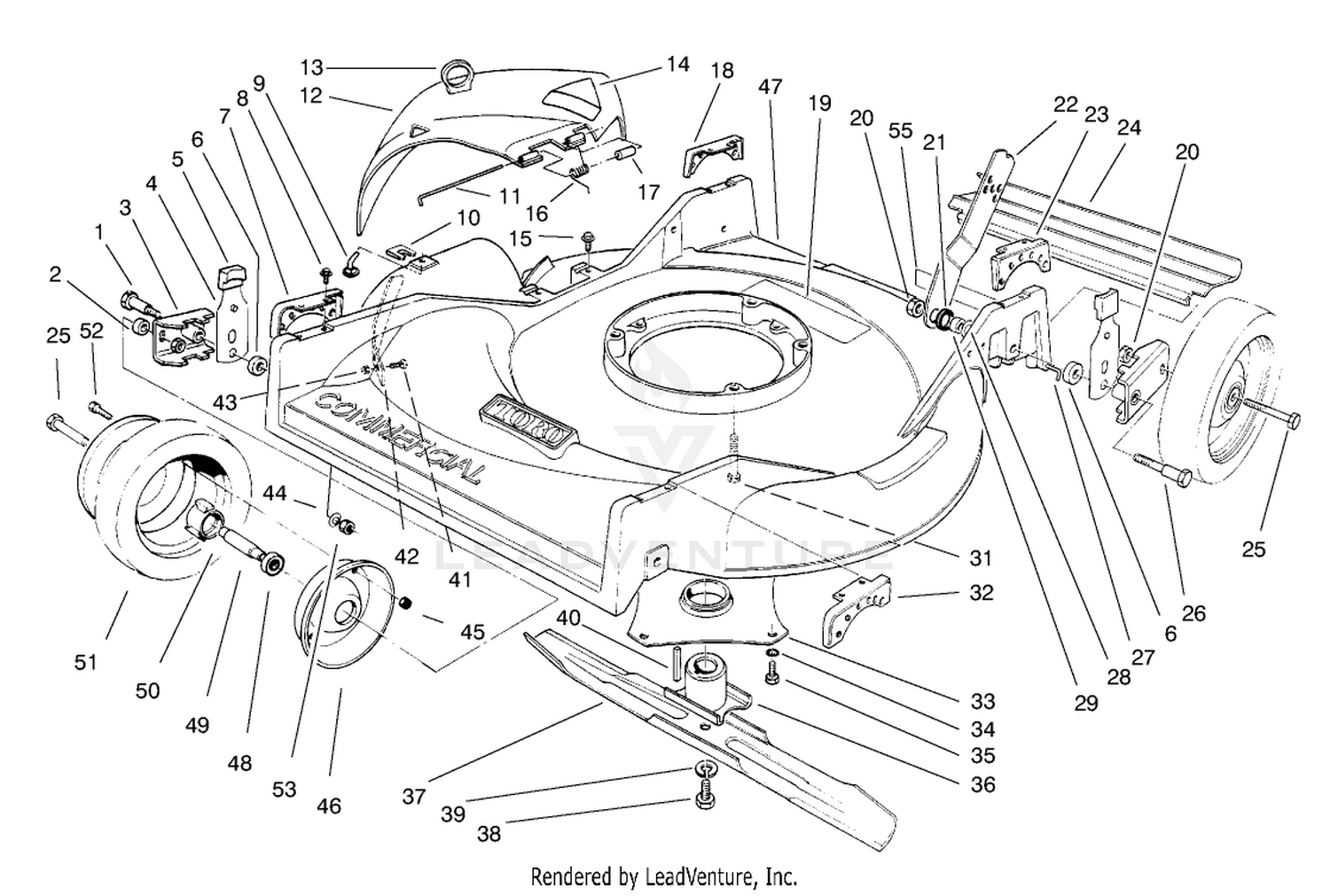

| Ref | Part Number | Description |
|---|
| 1 |
49-9180 |
PIVOT SCREW Price: $6.57 |
| 2 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 3 |
49-9160 |
PIVOT ARM Price: $42.73 |
| 4 |
49-8800 |
SPRING ARM ASM-FRONT Price: $26.74 |
| 5 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 6 |
53-7930 |
SPACER-PIVOT Price: $5.91 |
| 7 |
52-2510 |
FRT RIGHT QUAD Price: Call Us |
| 8 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 9 |
28-3260 |
BAG CHUTE PIN Price: $4.45 |
| 10 |
28-3250 |
BAG CHUTE CLIP PIN Price: $4.34 |
| 11 |
52-2570 |
DEFLECTOR HINGE PIN Price: Call Us |
| 12 |
12-4739 |
Deflector (Incl. Ref. #14) Price: $48.86 |
| 13 |
28-1430 |
LIFT LOOP Price: $2.95 |
| 14 |
39-5770 |
DECAL-DANGER Price: $5.12 |
| 15 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 16 |
52-2560 |
DEFLECTOR SPRING Price: Call Us |
| 17 |
28-3270 |
SLEEVE Price: Call Us |
| 18 |
52-2530 |
REAR RIGHT QUAD Price: Call Us |
| 19 |
71-1280 |
DECAL-INSTRUCTION, SAFETY Price: $19.73 |
| 20 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
27-6510 |
HANDLE LATCH SPACER Price: $2.97 |
| 22 |
27-7071 |
Latch-Handle Price: Call Us |
| 23 |
52-2540 |
REAR LEFT QUAD Price: Call Us |
| 24 |
117-5298 |
SHIELD-TRAILING This part replaces 52-2640. Price: $57.41 |
| 25 |
323-12 |
SCREW-HH Price: $1.14 |
| 26 |
52-2260 |
REAR PIVOT SCREW Price: $15.18 |
| 27 |
33-3201 |
SHIELD ROD Price: $7.35 |
| 28 |
3290-340 |
WASHER-BELLEVILLE Price: $7.19 |
| 29 |
52-2360 |
HANDLE LATCH SPACER Price: $6.30 |
| 30 |
68-7410 |
DECAL-BLADE Price: $7.18 |
| 31 |
100-2592 |
SCREW-HHF This part replaces 66-9303. Price: $9.09 |
| 32 |
52-2520 |
FRT LEFT QUAD Price: Call Us |
| 33 |
52-2500 |
CRNKSHFT PROTECT ASM Price: $68.51 |
| 34 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 35 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 36 |
52-2170-03 |
RETAINER-BLADE This part replaces 52-2170. Price: $48.60 |
| 37 |
8-5230-03 |
BLADE-21" This part replaces 8-5230. Price: $22.43 |
| 38 |
26-0671 |
SCREW-HH Price: $7.99 |
| 39 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 40 |
27-8590 |
KEY-SQUARE Price: $5.59 |
| 41 |
3230-16 |
SCREW-CARR Price: $1.79 |
| 42 |
52-2650 |
Bar-Safety Price: Call Us |
| 43 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 44 |
3290-455 |
WASHER-BELLEVILLE Price: $2.71 |
| 45 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 46 |
121-1365-06 |
RIM-HALF, WHEEL This part replaces 53-7780. Price: $14.21 |
| 47 |
12-4729 |
Housing (Incl. Ref. #19 30) Price: Call Us |
| 48 |
52-2450 |
BEARING-WHEEL Price: $13.12 |
| 49 |
52-2440 |
SPACER-BEARING Price: $5.95 |
| 50 |
52-2410 |
HUB-BEARING Price: $21.26 |
| 51 |
53-7740 |
TIRE Price: $37.99 |
| 52 |
321-2 |
SCREW-HH Price: $2.79 |
| 53 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 54 |
71-8650 |
DECAL-DANGER DEFLECTOR Price: $6.93 |
| 55 |
92-1779 |
DECAL-WARNING Price: $4.76 |
