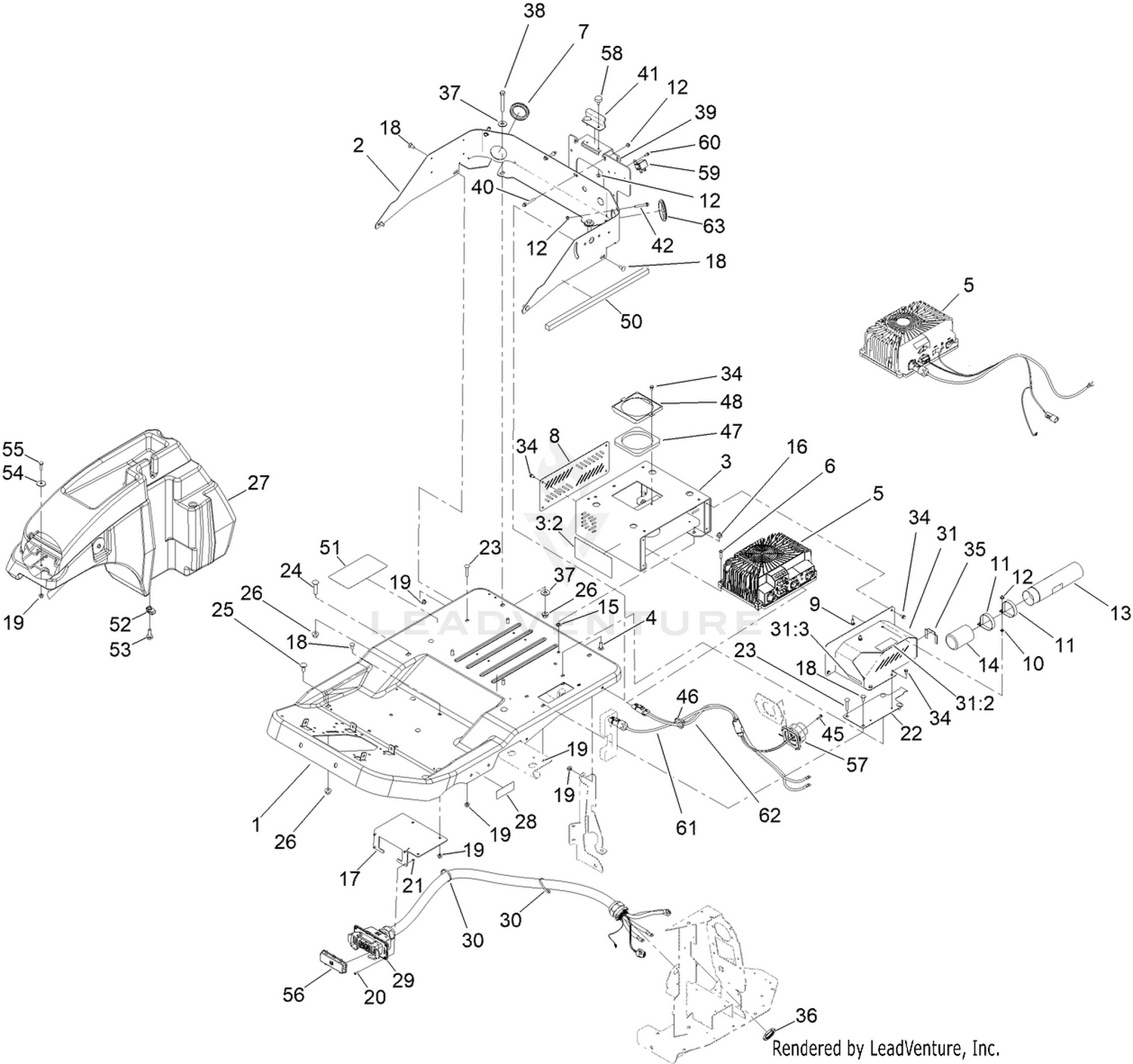

| Ref | Part Number | Description |
|---|
| 1 |
144-4030-01 |
PLATFORM-STAMPED Price: $416.89 |
| 2 |
161-5134-03 |
SHIELD-PLATFORM, REAR Price: Call Us |
| 3 |
147-5144 |
SEAT BASE ASM Price: Call Us |
| 4 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 5 |
145-5070 |
CHARGER-ONBOARD,3.3KW,EVSE CAPABLE Price: $2,325.75 |
| 6 |
132-6777 |
SCREW-TTH Price: $0.95 |
| 7 |
240-12 |
GROMMET Price: $28.58 |
| 8 |
147-5139-01 |
PLATE-COVER, RH Price: Call Us |
| 9 |
1-807512 |
BOLT-CARR Price: $1.29 |
| 10 |
104-8310 |
RING-RETAINING Price: $0.25 |
| 11 |
107-1865 |
R-Clamp Price: $6.86 |
| 12 |
104-7201 |
NUT-HF Price: $0.69 |
| 13 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 14 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 15 |
107-3154 |
NUT-PUSH Price: $0.99 |
| 16 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 17 |
147-2073-0P |
BRKT-CONNECTOR Price: Call Us |
| 18 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
119-7444 |
SCREW-HSBH Price: $0.22 |
| 21 |
140-3749 |
NUT-LOCK ROHS Price: $0.22 |
| 22 |
147-2096-01 |
PLATE-COVER Price: Call Us |
| 23 |
116-0629 |
SCREW-CARR Price: $1.71 |
| 24 |
3232-5 |
SCREW-CARR Price: $2.72 |
| 25 |
3232-1 |
SCREW-CARR Price: $4.19 |
| 26 |
114-8417 |
NUT-HF, NI Price: $0.87 |
| 27 |
147-2093 |
STORAGE BIN ASM Price: $797.67 |
| 28 |
106-9206 |
DECAL-TORQUE, WHEEL Price: $10.62 |
| 29 |
122-2784 |
HARNESS-WIRE, MACHINE Price: $2,215.39 |
| 30 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 31 |
161-7642 |
COVER ASM Price: Call Us |
| 34 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 35 |
147-5147 |
TRIM Price: Call Us |
| 36 |
32180-563 |
NUT - LOCKNUT, M40x1.5 Price: Call Us |
| 37 |
3256-40 |
WASHER-FLAT Price: $2.10 |
| 38 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 39 |
161-2489-03 |
MOUNT-CONTROLLER Price: Call Us |
| 40 |
3234-34 |
SCREW-HHF Price: $0.49 |
| 41 |
161-7680 |
SHIELD-HOOD Price: Call Us |
| 42 |
125-4287 |
SCREW-HHF Price: $1.56 |
| 45 |
100-4351 |
SCREW-HWH Price: $1.49 |
| 46 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 47 |
161-2462 |
FOAM-BAFFLE Price: $13.48 |
| 48 |
161-2460-0P |
BAFFLE ASM, WELDED Price: Call Us |
| 50 |
139-6207 |
FOAM-STRIP Price: $3.72 |
| 51 |
161-5125 |
DECAL-SERVICE, GM E3300 Price: Call Us |
| 52 |
140-1146 |
NUT-CLIP, U Price: $5.45 |
| 53 |
33105-030 |
SCREW-HHF Price: $1.56 |
| 54 |
105-3048 |
WASHER-FLAT Price: $0.89 |
| 55 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 56 |
32180-636 |
COVER-HARTING, HAN 24B, PLASTIC Price: Call Us |
| 57 |
122-4099 |
HARNESS-WIRE, INLET, 60309 Price: Call Us |
| 58 |
138-2662 |
BUMPER-RUBBER Price: $19.56 |
| 59 |
122-3199 |
RELAY - DG57CM Price: $63.30 |
| 60 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 61 |
122-3467 |
HARNESS-WIRE, AC INLET Price: Call Us |
| 62 |
122-3468 |
HARNESS-WIRE, DC AUX Price: Call Us |
