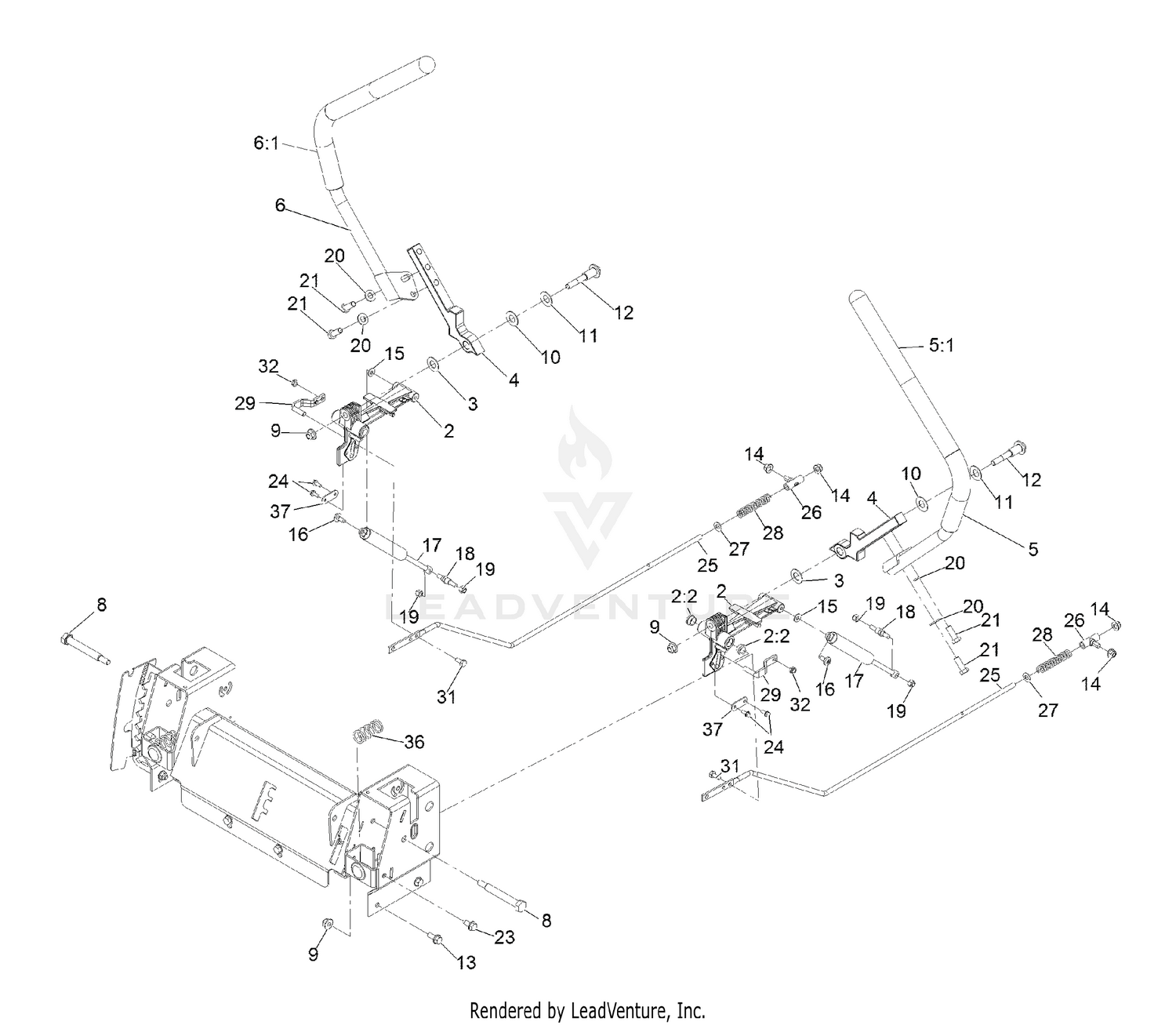

| Ref | Part Number | Description |
|---|
| 2 |
119-3470 |
ACTUATOR ARM ASM Price: $24.99 |
| 3 |
120-2273 |
WASHER-NYLON Price: $2.29 |
| 4 |
133-9299-05 |
ARM-CONTROL Price: $46.99 |
| 5 |
133-7055 |
HANDLE-CONTROL, LH Price: $60.99 |
| 6 |
133-7057 |
HANDLE-CONTROL, RH Price: $60.99 |
| 8 |
115-5099 |
BOLT-PIVOT Price: $4.79 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.19 |
| 10 |
117-1240 |
WASHER Price: $2.29 |
| 11 |
119-8925 |
WASHER-BELLEVILLE Price: $1.19 |
| 12 |
117-1198 |
BOLT-PIVOT Price: $2.69 |
| 13 |
3234-47 |
SCREW-HHF Price: $2.29 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.89 |
| 15 |
119-8952 |
WASHER Price: $0.39 |
| 16 |
120-7950 |
SCREW-SHOULDER Price: $2.29 |
| 17 |
131-4132 |
DAMPER Price: $65.99 |
| 18 |
138-7215 |
STUD-DAMPER This part replaces 110-6810. Price: $2.29 |
| 19 |
3296-42 |
NUT-LOCK, NI Price: $0.39 |
| 20 |
3256-24 |
WASHER-FLAT Price: $0.59 |
| 21 |
323-6 |
SCREW-HH Price: $2.29 |
| 23 |
32144-70 |
Screw-HWH 5/16-18 X 3/4 Tf Price: $2.29 |
| 24 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 25 |
138-7217 |
Screw-HWH #10-24 X 1/2 Taptite This part replaces 117-5388. Price: $11.99 |
| 26 |
138-7218 |
Rod-Hydro This part replaces 119-8842. Price: $11.99 |
| 27 |
3256-23 |
WASHER-PLAIN Price: $1.99 |
| 28 |
1-603807 |
SPRING-RETURN, NEUTRAL Price: $3.29 |
| 29 |
121-1753 |
PIN-ROD, HYDRO Price: $5.89 |
| 31 |
321-3 |
SCREW-HH Price: $1.19 |
| 32 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 36 |
119-8876 |
SPRING-RETURN Price: $2.39 |
