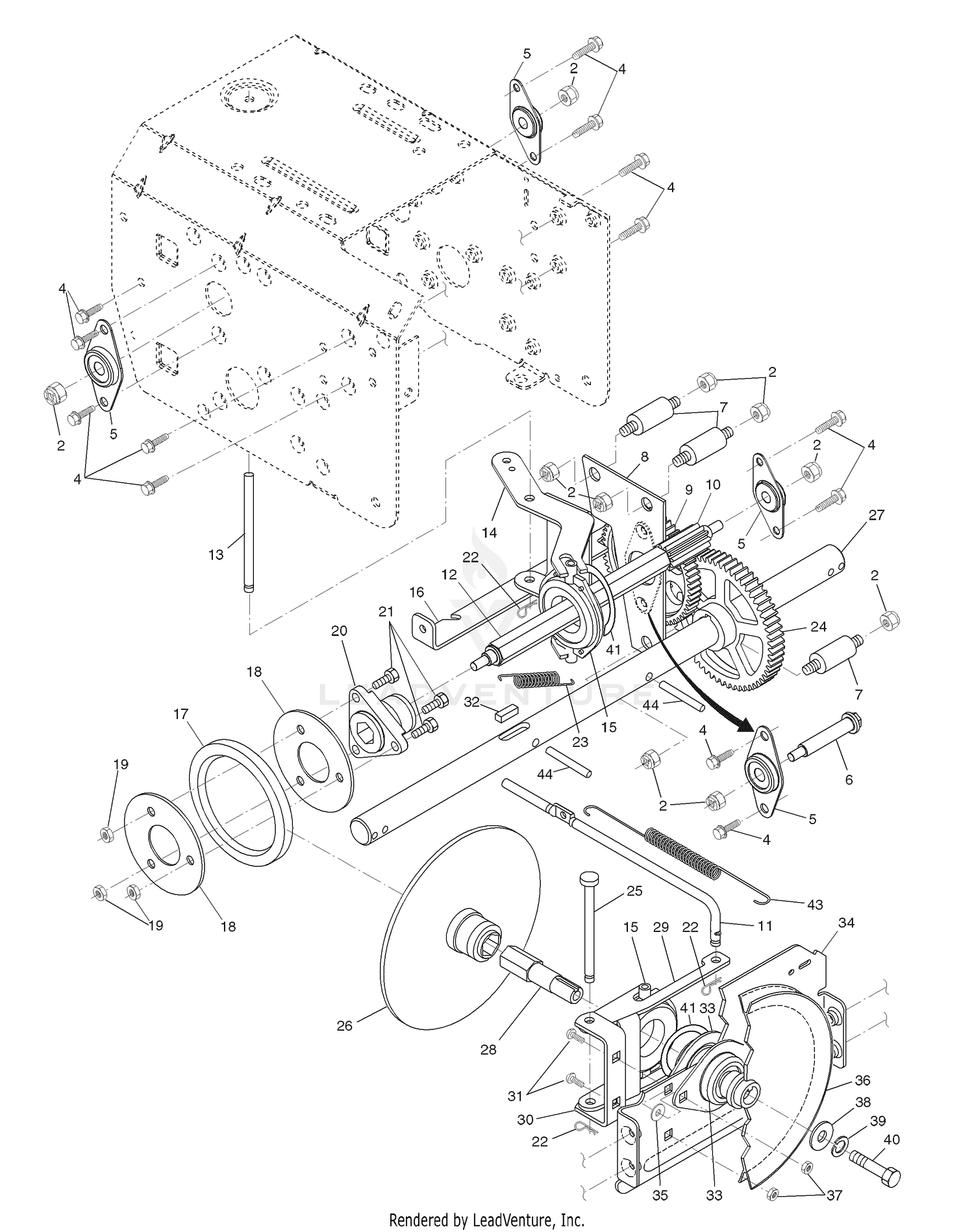

| Ref | Part Number | Description |
|---|
| 1 |
66-6370 |
LIFT ARM ASM Price: $430.43 |
| 2 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 2 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 3 |
32136-2 |
NUT-SHH Price: $3.55 |
| 4 |
21-3020-01 |
MOUNT-BALLJOINT, RH This part replaces 21-3020. Price: $178.87 |
| 4 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 5 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 5 |
532180017 |
BEARING, FLANGE Price: $22.99 |
| 6 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 6 |
532180134 |
SHAFT, AUXILIARY Price: $6.99 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 7 |
532179270 |
SPACER, PLATE Price: $9.99 |
| 8 |
3217-8 |
NUT-HEX Price: $1.34 |
| 8 |
532192616 |
PLATE.AUXILIARY.BLACK This part replaces 532192907. Price: $4.99 |
| 9 |
66-7150 |
ARM-PUSH, RH Price: $536.26 |
| 10 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 10 |
532180065 |
GEAR, PINION Price: $12.99 |
| 11 |
24-9510 |
PIN Price: $77.49 |
| 11 |
532187714 |
ROD.CLUTCH.YELLOW.ZINC Price: $9.99 |
| 12 |
532180066 |
SHAFT.HEX.LONG Price: $84.99 |
| 12 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 13 |
532178807 |
PIN, PIVOT Price: $3.99 |
| 14 |
46-8840-01 |
SPRING-LIFT ARM This part replaces 46-8840. Price: $35.71 |
| 14 |
532184080 |
LEVER, SPEED CONTROL Price: $12.99 |
| 15 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 15 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 16 |
256-126 |
BUSHING Price: $9.36 |
| 16 |
532435793 |
BRACKET.SHIFT.PIVOT.BLACK This part replaces 532187857. Price: $5.99 |
| 17 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 17 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99 |
| 18 |
23-1950-01 |
SUPPORT-REINFORCEMENT This part replaces 23-1950. Price: $69.64 |
| 18 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK This part replaces 532199509. Price: $7.99 |
| 19 |
324-4 |
SCREW-HH Price: $0.95 |
| 19 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 20 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 20 |
532178613 |
HUB, RUBBER WHEEL Price: $22.99 |
| 21 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 21 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 22 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 22 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 23 |
21-3750 |
SUPPORT PLT Price: $14.42 |
| 23 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 24 |
21-2860-01 |
PUSH ARM BRACKET ASM This part replaces 21-2860. Price: $154.46 |
| 25 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 25 |
532178695 |
PIN, PIVOT LEVER Price: $4.99 |
| 26 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 26 |
532197763 |
DRIVE PLATE WELDMENT Price: $54.99 |
| 27 |
32128-42 |
NUT-HF Price: $0.98 |
| 27 |
532404307 |
SHAFT.AXLE.POWER.STEERING Price: $59.99 |
| 28 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 28 |
532197764 |
SHAFT.HEX.SHORT Price: $11.99 |
| 29 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 29 |
532184077 |
LEVER.SHIFTER.PLATE.BLACK Price: $9.99 |
| 30 |
21-2900-01 |
SPRING-TORSION, LH This part replaces 21-2900. Price: $566.83 |
| 30 |
532175349 |
BRACKET, SHIFTER SUPPORT This part replaces 532184076. Price: $4.99 |
| 31 |
21-2890-01 |
SPRING-TORSION, RH This part replaces 21-2890. Price: $566.83 |
| 31 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 32 |
21-3050-01 |
LH BALL JOUNT MOUNT ASM This part replaces 21-3050. Price: $153.41 |
| 32 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 33 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 33 |
86-8100-01 |
BALL JOINT ASM This part replaces 86-8100. Price: $137.53 |
| 34 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 34 |
532184075 |
PLATE.DRIVE.MOUNTING.BLACK Price: $14.99 |
| 35 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 35 |
532182504 |
SPACER, BEARING Price: $5.99 |
| 36 |
3-1365 |
CHAIN Price: $72.97 |
| 36 |
532191080 |
PULLEY.TRACTION.7.75 Price: $49.99 |
| 37 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 37 |
68-3270 |
BUMPER-RUBBER This part replaces 67-9800. Price: $37.99 |
| 38 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 38 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 39 |
5-2942 |
SHACKLE Price: $16.99 |
| 39 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 40 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 41 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 43 |
532179095 |
SPRING.RETURN Price: $3.99 |
