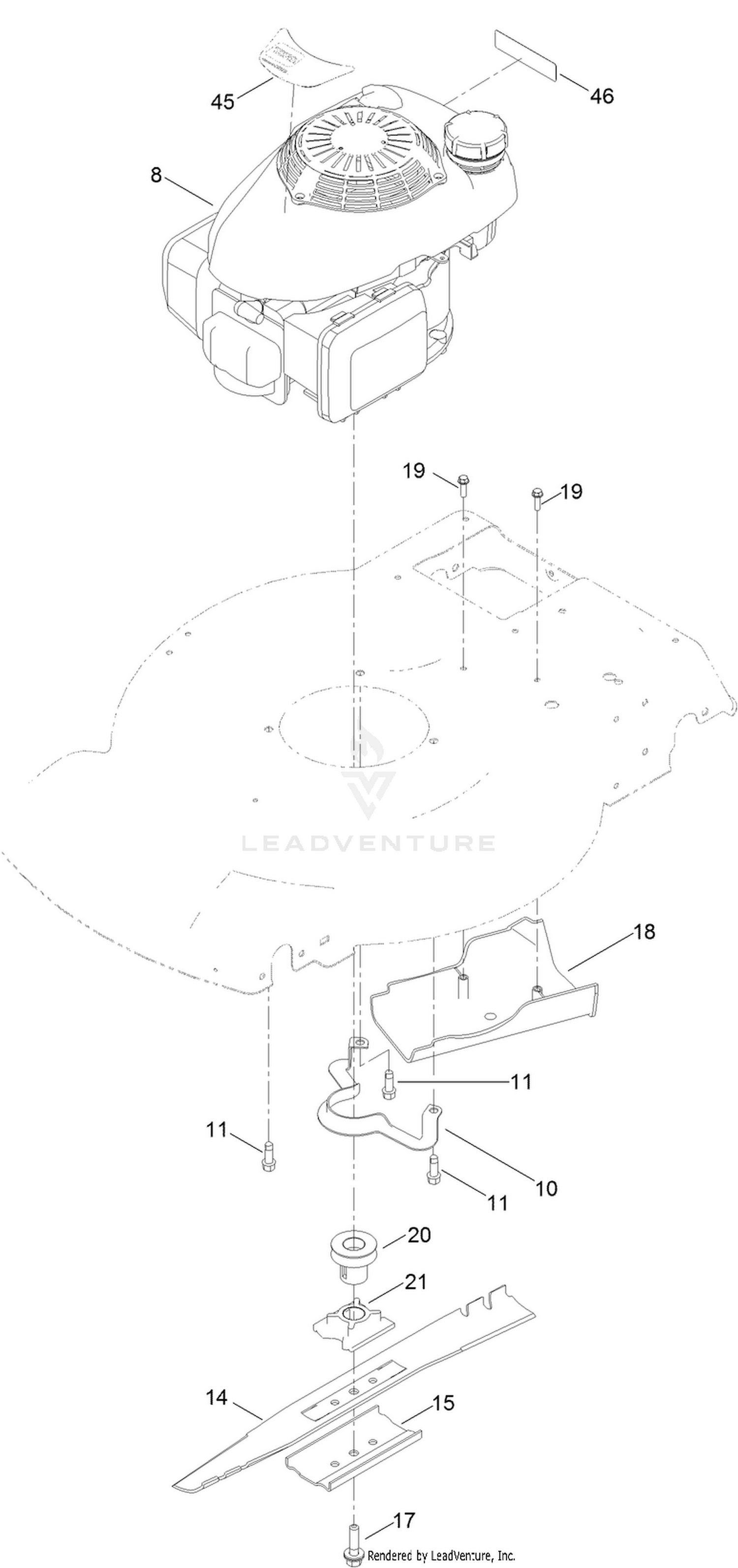

Engine and Blade Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 105-3030-03 | GUIDE-BELT Price: $9.83 |
| 11 | 95-1726 | SCREW-TAPTITE Price: $1.79 |
| 14 | 131-4547-03 | BLADE-22 INCH Price: $21.88 |
| 15 | 108-3766-03 | SUPPORT-BLADE Price: $7.65 |
| 17 | 117-5270 | BOLT-BLADE Price: $2.30 |
| 18 | 114-7937 | COVER-BELT Price: $12.23 |
| 19 | 46-8091 | SCREW-HWH Price: $3.59 |
| 20 | 130-6684 | PULLEY Price: $21.91 |
| 21 | 130-6674 | RETAINER-BLADE Price: $24.78 |
| 45 | 131-0854 | DECAL-SHROUD, HONDA Price: $2.38 |
