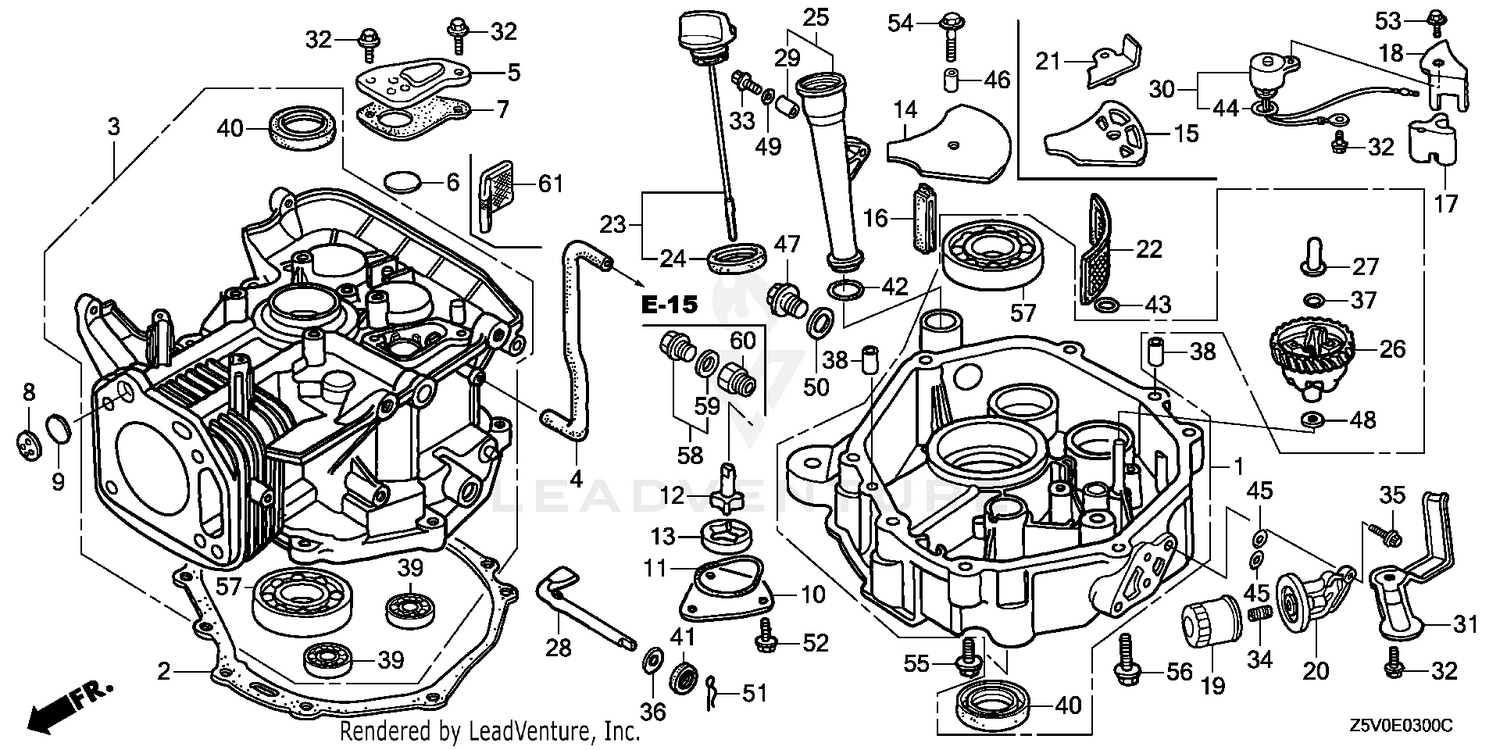

| Ref | Part Number | Description |
|---|
| 1 |
11300-Z1E-407 |
SEE PART DETAILS - PRI; PAN ASSY., OIL Price: $466.28 |
| 2 |
11381-ZE9-801 |
SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 6495758). Price: $17.14 |
| 3 |
12000-Z1E-415 |
CYLINDER ASSY. Price: $208.03 |
| 4 |
12315-ZF5-000 |
TUBE, BREATHER (Honda Code 3131828). Price: $9.10 |
| 5 |
12370-ZF5-000 |
CAP, BREATHER CHAMBER (Honda Code 3131836). Price: $9.10 |
| 6 |
12372-ZE2-300 |
VALVE, BREATHER (Honda Code 2061620). Price: $3.88 |
| 7 |
12373-ZE8-000 |
GASKET, BREATHER CAP (Honda Code 2089647). Price: $3.34 |
| 10 |
15130-ZE8-000 |
COVER, OIL PUMP (Honda Code 2089886). Price: $9.60 |
| 11 |
15131-ZE9-003 |
SEE PART DETAILS - PRI; O-RING, PUMP COVER (Honda Code 2278331). Price: $4.30 |
| 12 |
15330-ZE8-000 |
ROTOR (INNER) (Honda Code 2089902). Price: $23.22 |
| 13 |
15332-891-003 |
ROTOR, OIL PUMP (OUTER) (Honda Code 0800219). Price: $18.48 |
| 14 |
15334-ZE8-010 |
PLATE, OIL FILTER (Honda Code 2461655). Price: $4.38 |
| 16 |
15335-ZE9-000 |
RUBBER, OIL RETURN (Honda Code 2278349). Price: $5.64 |
| 22 |
15421-ZE9-003 |
SEE PART DETAILS - PRI; SCREEN, OIL FILTER (Honda Code 2608644). Price: $15.40 |
| 23 |
15600-Z5N-800 |
SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER Price: $4.28 |
| 24 |
15625-ZE8-000 |
SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP Price: $5.22 |
| 25 |
15630-Z5N-800 |
EXTENSION, OIL FILLER Price: $5.56 |
| 26 |
16510-ZE3-000 |
GOVERNOR ASSY. (Honda Code 3713187). Price: $32.20 |
| 27 |
16531-Z0A-000 |
SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117). Price: $3.72 |
| 28 |
16541-ZE8-010 |
SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM (Honda Code 4751293). Price: $14.94 |
| 29 |
17240-ZE6-000 |
COLLAR, EXTENSION Use up to Engine SN 1257294. Price: $4.58 |
| 32 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 33 |
90014-ZE6-000 |
BOLT, FLANGE (6X35) (Honda Code 1688076). Price: $2.60 |
| 36 |
90406-VM6-000 |
WASHER, THRUST (8.1MM) (Honda Code 1806934). Price: $3.50 |
| 37 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 38 |
90701-HC4-000 |
PIN, DOWEL (8X12) (Honda Code 2978443). Price: $3.72 |
| 39 |
91001-ZF5-003 |
BEARING, RADIAL BALL (6202) (Honda Code 3132263). Price: $18.48 |
| 40 |
91201-Z1C-003 |
OIL SEAL (35X52X8) (NOK) Price: $10.22 |
| 41 |
91201-ZE9-003 |
SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713). Price: $5.26 |
| 42 |
91301-ZE9-003 |
SEE PART DETAILS - PRI; O-RING (22.5X2.2) Use from Engine SN 1257295. Price: $2.32 |
| 43 |
91302-ZE9-003 |
SEE PART DETAILS - PRI; O-RING (11.8X2.4) Price: $3.22 |
| 46 |
91501-ZF5-000 |
COLLAR, OIL FILTER SETTING (Honda Code 3132271). Price: $3.70 |
| 47 |
92800-20000 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (20MM) (Honda Code 0209635). Price: $7.00 |
| 48 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 49 |
94103-06700 |
WASHER, PLAIN (6MM) (Honda Code 0622324). Price: $0.90 |
| 50 |
94109-20000 |
SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728). Price: $1.76 |
| 51 |
94251-10000 |
PIN, LOCK (10MM) (Honda Code 0159269). Price: $1.50 |
| 52 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 54 |
95701-06025-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831). Price: $2.26 |
| 55 |
95701-08040-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775). Price: $2.78 |
| 56 |
95701-08060-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X60) (Honda Code 2488526). Price: $3.08 |
| 57 |
96100-62070-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207) Price: $54.86 |
