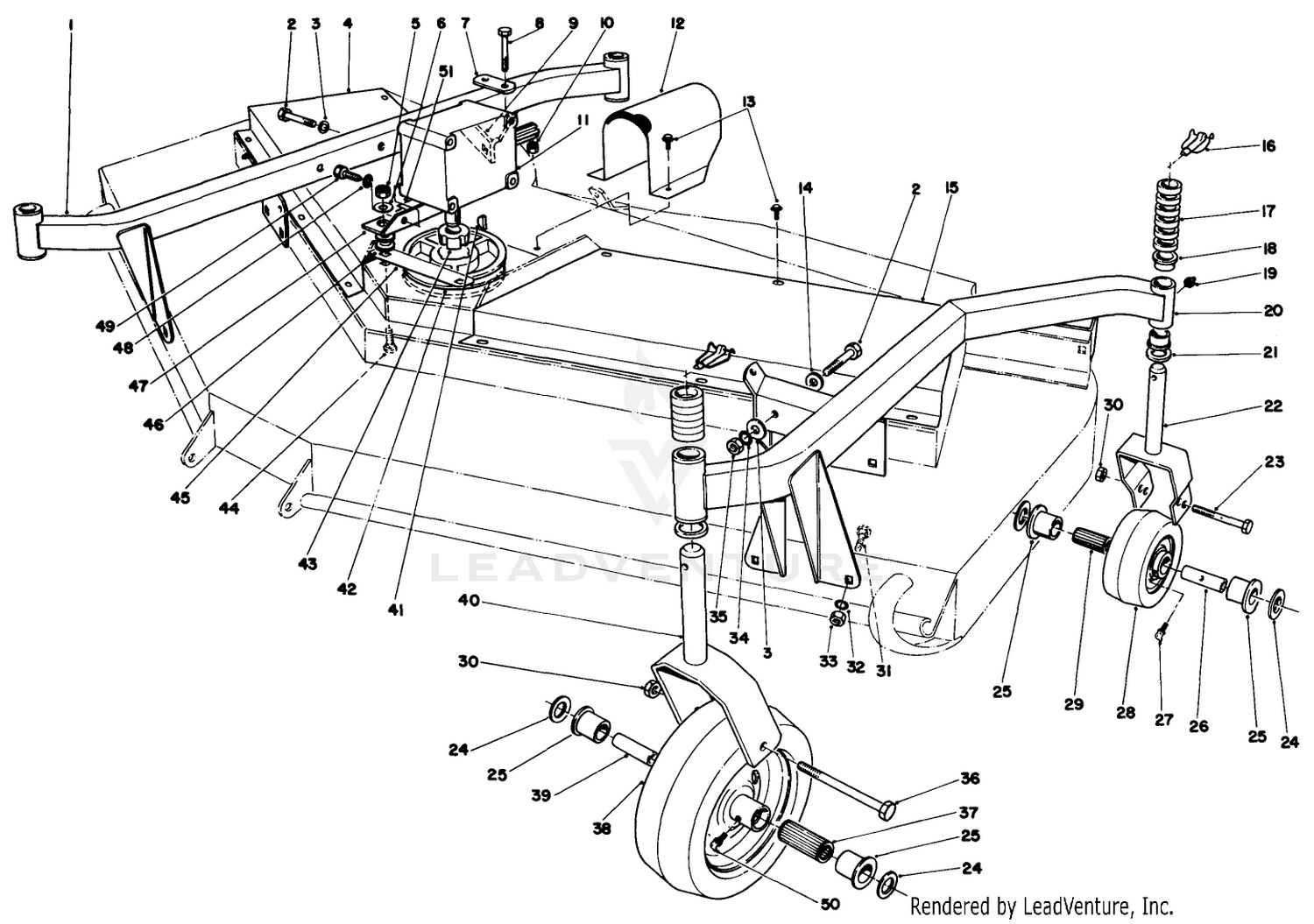

| Ref | Part Number | Description |
|---|
| 1 |
38-9370 |
RH CASTOR ARM ASM Price: $946.82 |
| 2 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 3 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 4 |
26-1890 |
DISCONTINUED Price: Call Us |
| 5 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 6 |
63-8410 |
WASHER Price: $1.76 |
| 7 |
39-3330-01 |
PLATE-CLAMP, CASTOR ARM This part replaces 39-3330. Price: $36.10 |
| 8 |
325-14 |
SCREW-HH Price: $2.64 |
| 9 |
39-3340-01 |
BRACKET-ARM CLAMP This part replaces 39-3340. Price: $101.90 |
| 10 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 11 |
108-1370 |
GEARBOX REPLACEMENT KIT This part replaces 68-6810. Price: $862.61 |
| 12 |
93-9838-03 |
SHROUD-SHAFT, DRIVE This part replaces 63-1970. Price: $56.70 |
| 13 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 14 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 15 |
26-1900 |
DISCONTINUED Price: Call Us |
| 16 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 17 |
63-0070 |
SPACER Price: $1.82 |
| 18 |
94-1291 |
BUSHING This part replaces 28-9290. Price: $10.99 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
38-9420 |
LH CASTOR ARM ASM Price: $993.47 |
| 21 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 22 |
99-5690 |
CASTOR FORK ASM This part replaces 26-1560. Price: $183.50 |
| 23 |
325-17 |
SCREW-HH Price: $2.90 |
| 24 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 25 |
62-5580 |
BEARING-OUTSIDE Price: $6.58 |
| 26 |
63-1770 |
SPANNER Price: $17.94 |
| 27 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 28 |
63-8400 |
CASTER WHEEL ASM Price: $75.13 |
| 29 |
63-8580 |
BEARING-ROLLER Price: $12.48 |
| 30 |
32153-5 |
NUT-HEX Price: $1.59 |
| 31 |
3233-2 |
SCREW-CARR Price: $1.49 |
| 32 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 33 |
3217-9 |
NUT-HH Price: $0.37 |
| 34 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 35 |
3217-8 |
NUT-HEX Price: $1.34 |
| 36 |
325-22 |
SCREW-HH Price: $4.26 |
| 37 |
62-5570 |
BEARING-ROLLER Price: $18.63 |
| 39 |
62-4340 |
SPANNER Price: $16.93 |
| 40 |
26-1530-01 |
FORK-CASTOR This part replaces 26-1530. Price: $178.41 |
| 41 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 42 |
26-1400 |
PULLEY-DECK Price: $539.17 |
| 43 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 44 |
3231-26 |
SCREW-CARR Price: $0.86 |
| 45 |
68-9890-01 |
COVER-GEARBOX, FRONT This part replaces 68-9890. Price: $47.21 |
| 46 |
63-9750 |
MOUNT Price: $18.92 |
| 47 |
68-8560-03 |
BRACKET-GEARBOX This part replaces 68-8560. Price: $57.56 |
| 48 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 49 |
323-4 |
SCREW-HH Price: $1.02 |
| 50 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
