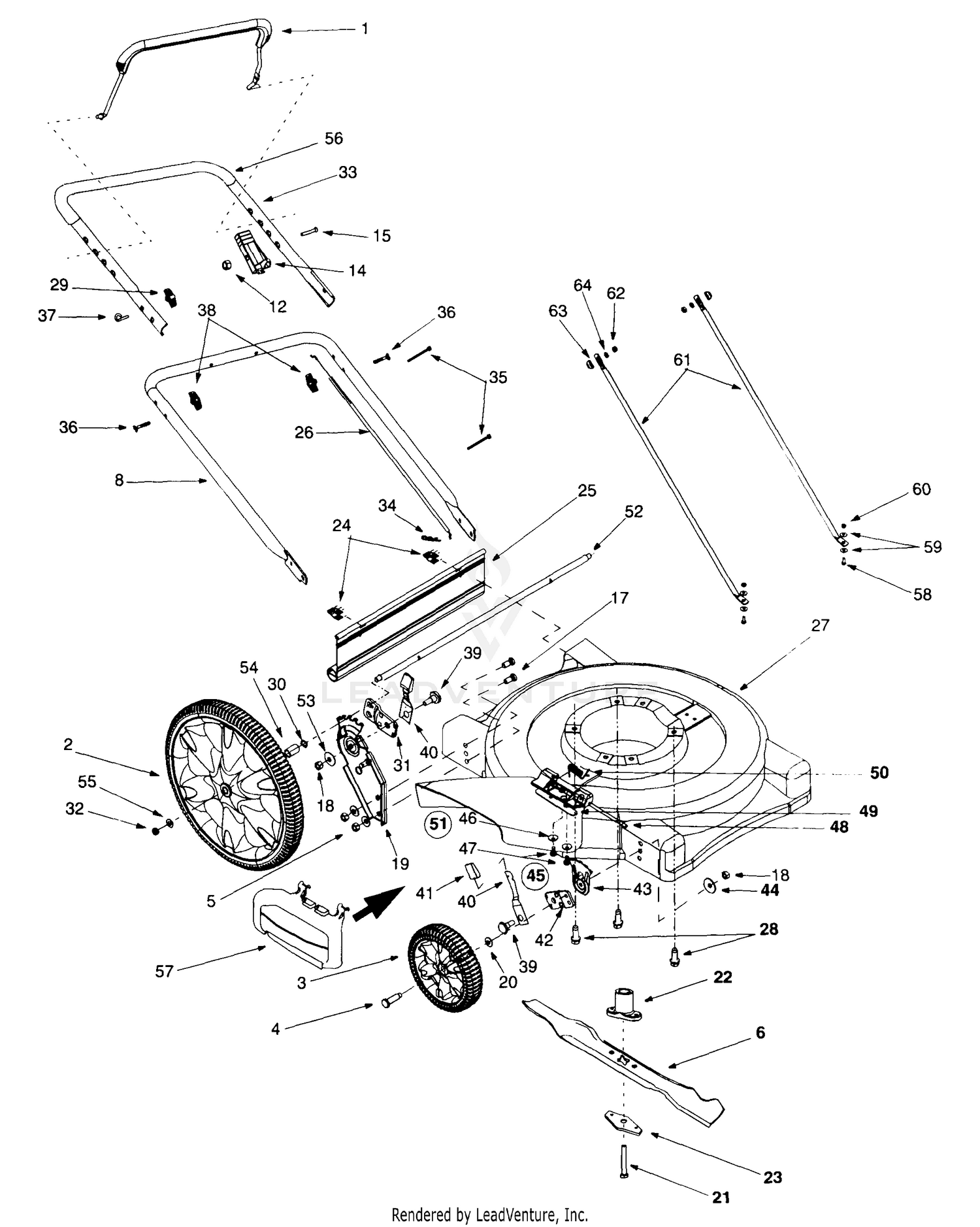

| Ref | Part Number | Description |
|---|
| 1 |
747-0824B-0637 |
Std. Control Handle This part replaces 747-0824. Price: $57.85 |
| 2 |
734-04030 |
WHEEL ASSEMBLY 14X1.8 This part replaces 734-1864. Price: $67.28 |
| 3 |
734-1987 |
Front Wheel Bar Grey Price: $21.78 |
| 4 |
738-0102 |
Front Axle Bolt Price: $9.22 |
| 5 |
712-0241 |
Hex Nut 3/8-24 Thd. This part replaces 712-0328. Price: $3.86 |
| 6 |
942-0642A |
Standard Blade 22-inch This part replaces 742-0642. Price: $24.37 |
| 8 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928. Price: $29.67 |
| 12 |
N/A |
UNKNOWN |
| 14 |
746-0883 |
Control Cable Housing Price: $15.66 |
| 15 |
710-1270 |
SCREW 1/4-20 x 1.310 Not Available Price: |
| 17 |
710-0793 |
SCREW 3/8-24 x .80 Not Available Price: |
| 18 |
712-0798 |
Hex Nut 3/8-16 Price: $3.86 |
| 19 |
682-0518 |
HANDLE BRACKET ASSEMBLY (RH) Not Available Price: |
| 20 |
736-0105 |
Bell Washer Price: $3.96 |
| 21 |
710-1044 |
Hex Bolt 3/8-24 x 1.5" Price: $3.48 |
| 22 |
748-0376E |
Blade Adapter This part replaces 748-0376C. Price: $19.13 |
| 23 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524A. Price: $5.34 |
| 24 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 25 |
731-1026 |
TRAILSHED Not Available Price: |
| 26 |
946-0551 |
Control Cable 43.0" Lg. This part replaces 746-0551. Price: $22.65 |
| 27 |
682-0084 |
DECK 22"SD Not Available Price: |
| 28 |
710-0654A |
Hex Washer Screw Price: $3.75 |
| 29 |
720-0279 |
Handle Knob 1/4-20 Price: $3.93 |
| 30 |
936-0504 |
Wave Washer.510 ID x.750 OD This part replaces 736-0504. Price: $3.90 |
| 31 |
782-0519A |
PIVOT BAR Not Available Price: |
| 32 |
912-3020 |
Top Lock Jam Nut 3/8-16 This part replaces 712-3020. Price: $5.50 |
| 33 |
749-0705 |
UPPER HANDLE Not Available Price: |
| 34 |
714-0104 |
Internal Cotter Pin Price: $3.90 |
| 35 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 36 |
710-1174 |
Curved Bolt 5/16-18 x 2" Price: $6.28 |
| 37 |
710-1205 |
Rope Guide Price: $3.53 |
| 38 |
920-0276 |
Hand Knob This part replaces 720-0276. Price: $3.23 |
| 39 |
738-0507B |
Shoulder Bolt Price: $3.86 |
| 40 |
94832 |
Front Spring Lever This part replaces 732-0404. Price: $9.48 |
| 41 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 42 |
15262B |
Pivot Bar Price: $13.59 |
| 43 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 44 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 45 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 46 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 47 |
710-0599 |
Hex Tap Screw 1/4-20 x .5" Price: $3.86 |
| 48 |
747-0710A |
Hinge Pin This part replaces 747-0710. Price: $3.86 |
| 49 |
17032A |
PLATE-ADAPTER Not Available This part replaces 17032. Price: |
| 50 |
932-0593 |
Torsion Spring This part replaces 732-0593. Price: $4.24 |
| 51 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 731-1034. Price: |
| 52 |
738-0878 |
AXLE-RR Not Available Price: |
| 53 |
736-0331 |
Bell Washer Price: $3.50 |
| 54 |
950-0151 |
Spacer .550 ID x .750 OD This part replaces 750-0151. Price: $9.70 |
| 55 |
736-3050 |
Flat Washer Price: $3.90 |
