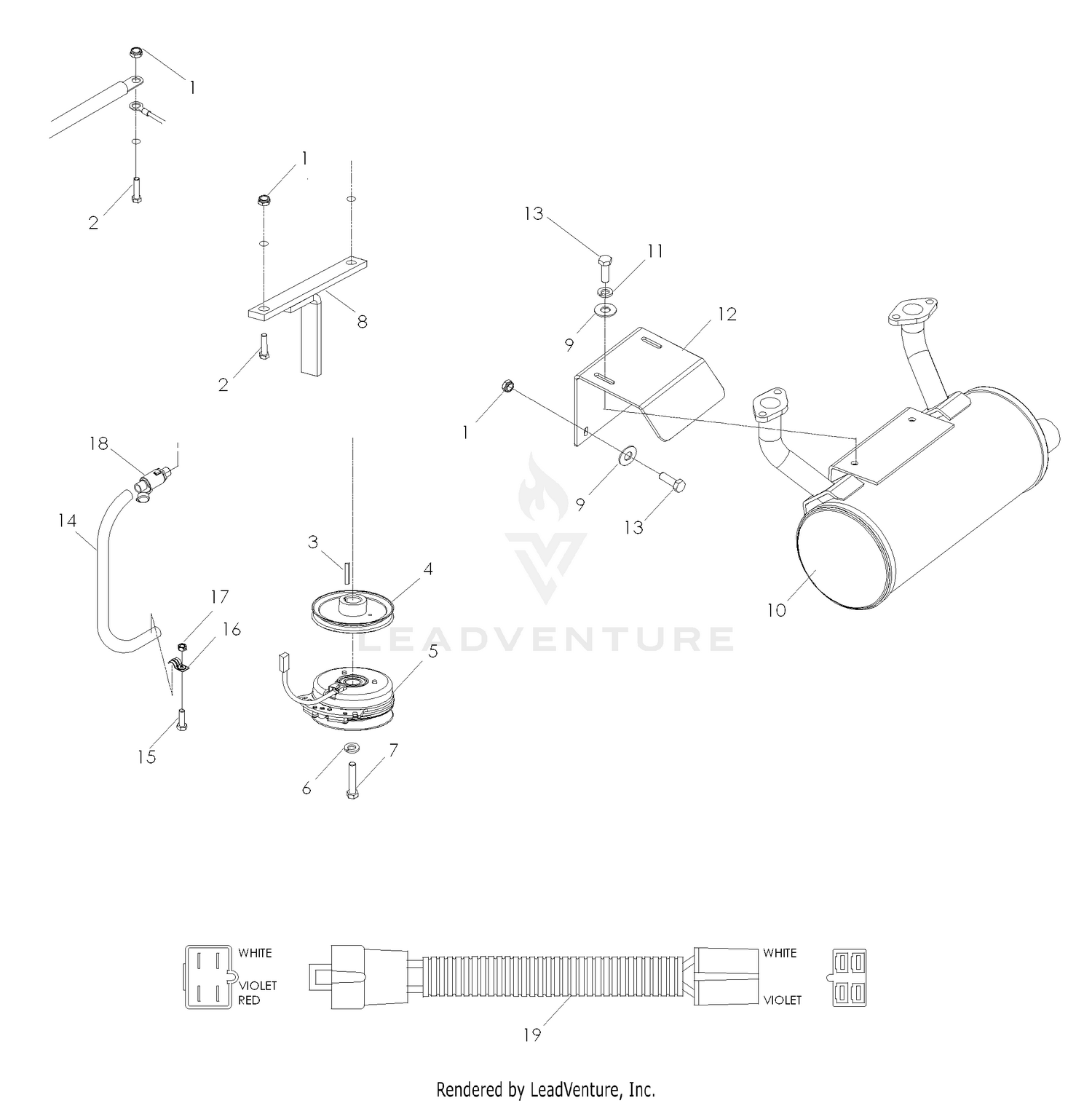

| Ref | Part Number | Description |
|---|
| 1 |
46-7620 |
SETSCREW Price: $14.11 |
| 1 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 2 |
46-7630 |
FRONT BRKT Price: $237.04 |
| 2 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 3 |
46-7540 |
Lever Assembly Price: Call Us |
| 3 |
539100152 |
KEY 1/4" SQ X 1 7/8" Price: $2.99 |
| 4 |
43-0190 |
SPRING SET Price: $37.18 |
| 4 |
539106057 |
PULLEY Price: $54.99 |
| 5 |
46-7650 |
COVER BRKT Price: $130.16 |
| 5 |
539105406 |
ELECTRIC CLUTCH W/CABLE Price: $329.99 |
| 6 |
46-7660 |
SWITCH ASM Price: $544.90 |
| 6 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 7 |
46-7680 |
BEARING Price: $55.78 |
| 7 |
539991120 |
BOLT 7/16F X 2 1/2 Price: $5.99 |
| 8 |
46-7670 |
ARMATURE SET Price: $749.05 |
| 8 |
539106819 |
CLUTCH TIE DOWN Price: $36.99 |
| 9 |
107-4398 |
BEARING This part replaces 46-7690. Price: $45.79 |
| 9 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 10 |
46-8050 |
PACKING Price: $29.35 |
| 10 |
539105896 |
MUFFLER KOHLER GEN II Price: $299.99 |
| 11 |
46-7780 |
YOKE ASM Price: $698.42 |
| 11 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 12 |
46-8030 |
DISCONTINUED Price: Call Us |
| 12 |
539111093 |
MUFFLER BRACKET BLACK Price: $29.99 |
| 13 |
51-7810 |
BRUSH HOLDER This part replaces 46-7790. Price: $90.99 |
| 13 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 14 |
46-8040 |
DISCONTINUED Price: Call Us |
| 14 |
539107937 |
OIL DRAIN HOSE Price: $2.99 |
| 15 |
46-7700 |
DISCONTINUED Price: Call Us |
| 15 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 16 |
46-7770 |
DISCONTINUED Price: Call Us |
| 16 |
539101363 |
CLAMP Price: $2.99 |
| 17 |
46-7760 |
GEAR Price: $65.02 |
| 17 |
539990761 |
NUT 1/4C CENTER LOCK Price: $2.99 |
| 18 |
46-7750 |
PINION SHAFT Price: $879.94 |
| 18 |
532428287 |
VALUE.OIL.DRAIN This part replaces 539110093. Price: $14.99 |
| 19 |
46-7720 |
PINION SET Price: $80.04 |
| 20 |
46-7730 |
DISCONTINUED Price: Call Us |
