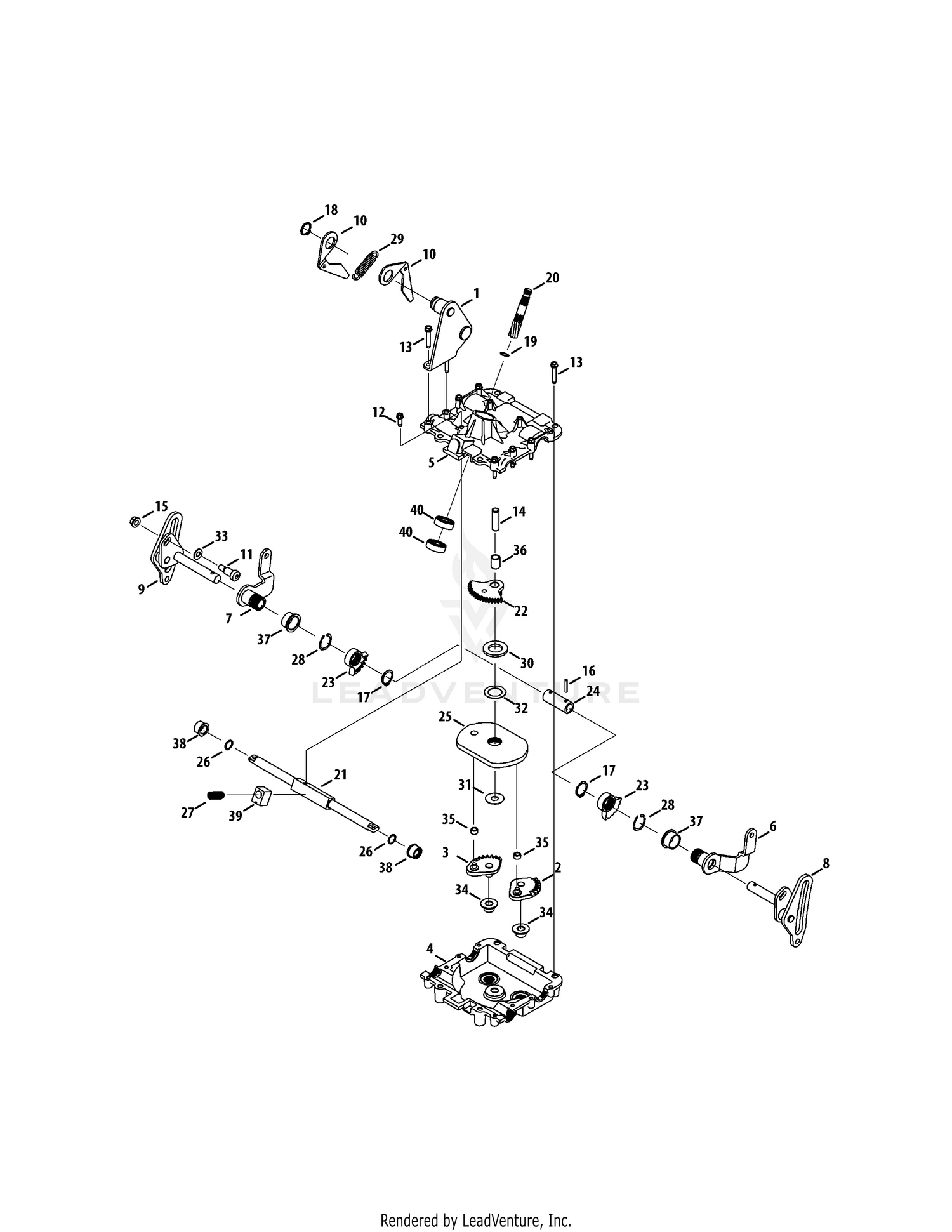

| Ref | Part Number | Description |
|---|
| 1 |
607-04243 |
STEERING BRACKET ASSEMBLY Not Available Price: |
| 2 |
617-04047 |
STEERING GEAR ASSEMBLY (LH) Not Available Price: |
| 3 |
617-04048 |
STEERING GEAR ASSEMBLY (RH) Not Available Price: |
| 4 |
919-04153 |
LOWER STEERING HOUSRING Not Available This part replaces 619-04153. Price: |
| 5 |
919-04206 |
UPPER STEERING HOUSING Not Available Price: |
| 6 |
647-04083 |
LH Hydro Arm Price: $57.67 |
| 7 |
647-04084 |
HYDRO ARM ASSEMBLY (RH) Not Available Price: |
| 8 |
647-04228 |
CAM ASSEMBLY (LH) Not Available Price: |
| 9 |
647-04229 |
CAM ASSEMBLY (RH) Not Available Price: |
| 10 |
703-2441 |
NEUTRAL ARM Not Available Price: |
| 11 |
710-04040 |
Shoulder Screw, 3/8-16 x .497 x .75 Price: $13.28 |
| 12 |
710-0642 |
Hex Washer Screw, 1/4-20 x .5 Price: $4.05 |
| 13 |
710-0778 |
Hex Washer Screw, 1/4-20 x 1.5 Price: $3.90 |
| 14 |
911-04587A |
STEERING SHAFT Not Available Price: |
| 15 |
912-0431 |
Flange Lock Nut, 3/8 -16 Price: $4.29 |
| 16 |
715-0120 |
Spring Pin Roll 3/16" Dia. x 1.00" Lg. This part replaces 915-0120. Price: $9.14 |
| 17 |
716-0102 |
Snap Ring, 1.0 Dia. Shaft This part replaces 916-0102. Price: $4.40 |
| 18 |
716-0111 |
External Retaining Ring, .875 Price: $5.78 |
| 19 |
916-0114 |
Retaining Ring, .56 Price: $5.99 |
| 20 |
717-04318 |
Pinion Gear, 7T Price: $70.56 |
| 21 |
717-04319 |
GEAR-RACK:SYNCHRO Not Available Price: |
| 22 |
917-04328 |
Steering Gear, 17T Price: $59.61 |
| 23 |
917-04330 |
Steering Gear, 26T Price: $17.77 |
| 24 |
718-04388A |
STEERING CAM CONNECTOR TUBE Not Available Price: |
| 25 |
718-04644 |
Hydro Steering Cam Price: $31.54 |
| 26 |
721-04186 |
O-Ring, .625 x .07 Price: $6.85 |
| 27 |
732-04523 |
COMPRESSION SPRING .531 OD x 1.25 Not Available Price: |
| 28 |
732-04711 |
Wave Spring Price: $3.42 |
| 29 |
732-1162 |
Extension Spring, .56 x 2.31 x .105 Price: $7.61 |
| 30 |
736-0274 |
Washer, Special This part replaces 936-0274. Price: $7.70 |
| 31 |
736-04237 |
Flat Washer, .508 x 1.32 x .04 Price: $3.42 |
| 32 |
736-0615 |
Thrust Washer, 1.007 x 1.542 x .03 Price: $8.02 |
| 33 |
936-0864 |
Thrust Washer, .375 x .812 x .060 Price: $3.71 |
| 34 |
741-04203 |
Flange Bearing, .5 x .7 Not Available Price: |
| 35 |
741-04204 |
Sleeve Bearing, .437 x .3425 Price: $17.28 |
| 36 |
741-04206A |
Sleeve Bearing, .623 x .5025 x .25 Price: $3.07 |
| 37 |
741-04231 |
Sleeve Bearing, 1.2 x 1.0 Price: $10.38 |
| 38 |
741-04235 |
Flange Bearing, .625 x .875 Not Available Price: |
| 39 |
741-04257 |
Caster Rack Bearing Price: $5.07 |
