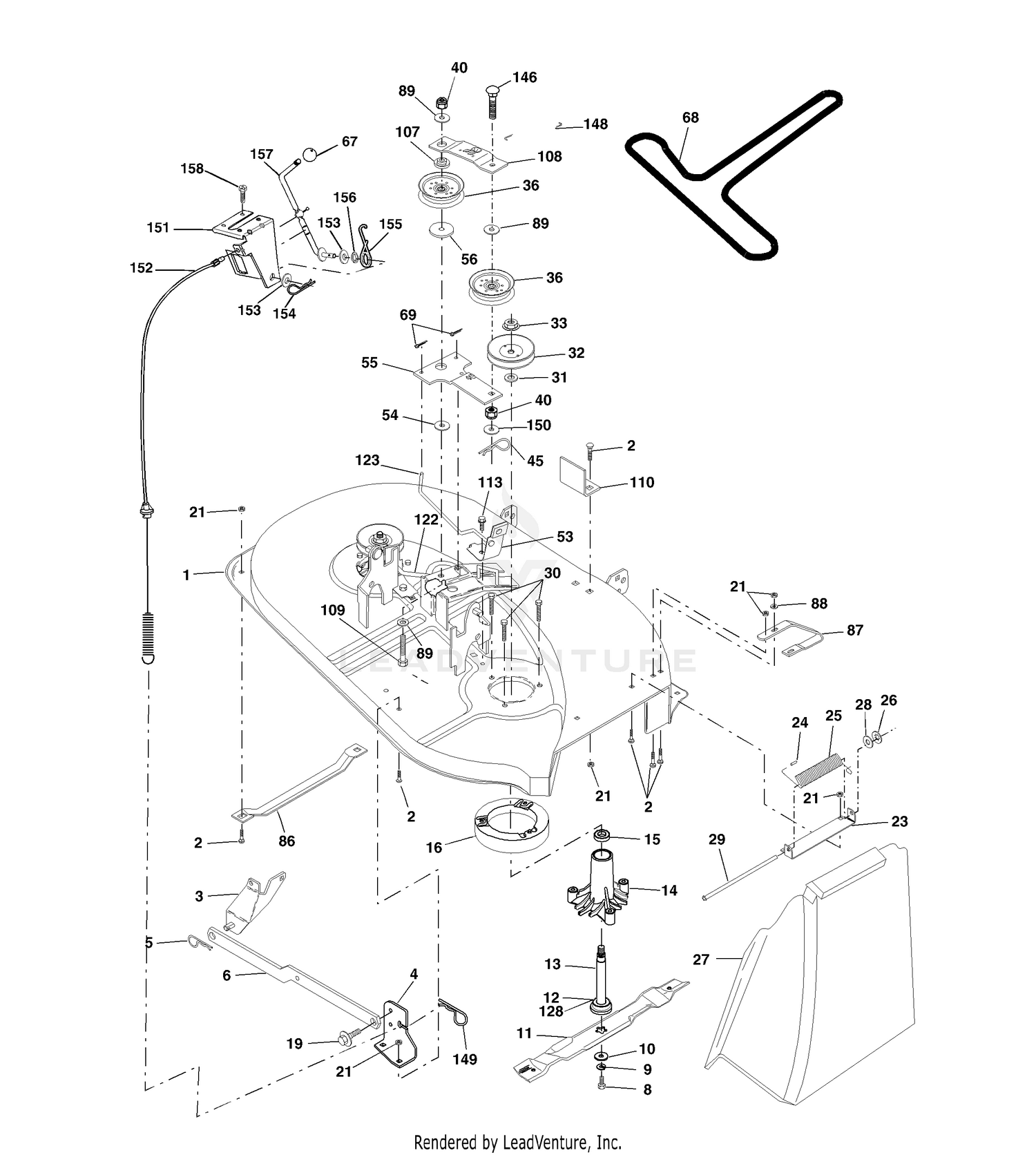

| Ref | Part Number | Description |
|---|
| 1 |
170280 |
Mower Housing Assembly Price: Call Us |
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |
| 2 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 2 |
72140506 |
Bolt Carriage 5/16-18 x 3/4 Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar Price: Call Us |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
169970 |
Bracket Deck Sway Bar 38"/42" Price: Call Us |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
130832 |
Arm, Suspension, Rear Price: Call Us |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Grade 8 Price: Call Us |
| 9 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 11 |
138497 |
Blade Mower Price: Call Us |
| 11 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 12 |
129895 |
Bearing, Ball Price: Call Us |
| 12 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 16 |
140329 |
Stripper, Vented Mower Deck Price: Call Us |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 20 |
21-7850 |
PLUG-CUP Price: $23.35 |
| 21 |
43-6550 |
RING-SNAP Price: $0.94 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
46-2210 |
SHIM-BEARING, FRONT Price: $6.91 |
| 22 |
46-2213 |
SHIM-FRONT BEARING, .037 Price: $6.40 |
| 22 |
46-2412 |
DISCONTINUED Price: Call Us |
| 23 |
137607 |
Bracket, Mower Deflector Price: Call Us |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
254-90 |
BEARING-CUP Price: $11.29 |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
86-9580 |
UPPER HOUSING SUB ASM Price: $961.30 |
| 27 |
106736X428 |
Shield, Deflector Price: Call Us |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 29 |
106735X |
Rod, Hinge Price: Call Us |
| 30 |
157722 |
Screw Thdrol. Washer Head Price: Call Us |
| 30 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 31 |
129963 |
Washer, Spacer Price: Call Us |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 33 |
137266 |
Nut, Toplock 9/16 Price: Call Us |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 34 |
43-6840 |
HOUSING-LOWER Price: $1,467.48 |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 39 |
72-9420 |
VENT Price: $6.85 |
| 42 |
3217-9 |
NUT-HH Price: $0.37 |
| 43 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 44 |
24-9830-01 |
AXLE SUPPORT ASM This part replaces 24-9830. Price: $83.43 |
| 45 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 45 |
4497H |
Retainer Price: Call Us |
| 53 |
130840 |
Brake Assembly Price: Call Us |
| 54 |
133943 |
Washer, Hardened Price: Call Us |
| 55 |
133840 |
Idler Arm Assembly Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
144200 |
V-Belt, 42" Mower Price: Call Us |
| 69 |
76020312 |
Pin, Cotter 3/32 x 3/4 Price: Call Us |
| 86 |
7631J |
Runner, LH Price: Call Us |
| 87 |
128772 |
Runner, RH Price: Call Us |
| 88 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga Price: Call Us |
| 89 |
19131612 |
Washer 13/32 x 1 x 12 Ga. Price: Call Us |
| 107 |
133502 |
Spacer Retainer Price: Call Us |
| 108 |
133503 |
Stiffener, Idler Arm Price: Call Us |
| 109 |
74760640 |
Bolt, Hex Hd 3/8-16 x 2-1/2 Price: Call Us |
| 110 |
142587 |
Upstop Deck Front 38" Price: Call Us |
| 113 |
17060512 |
Screw 5/16-1/ x 3/4 Price: Call Us |
| 122 |
131289 |
Rod, Brake LH Price: Call Us |
| 123 |
169971 |
Rod, Brake RH Price: Call Us |
| 128 |
153390 |
Washer Felt Price: Call Us |
| 146 |
165891 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 151 |
169670 |
Bracket Clutch Cable Price: Call Us |
| 152 |
172758 |
Clutch Cable 38"/46" Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention LVR CLTCH CAB Price: Call Us |
| 156 |
169672 |
Spacer Clutch Cable Price: Call Us |
| 157 |
169669 |
Rod Clutch Cable 3/8" Price: Call Us |
| 158 |
17720410 |
Screw Hex Thd Cut 1/4-20 x 5/8 Price: Call Us |
