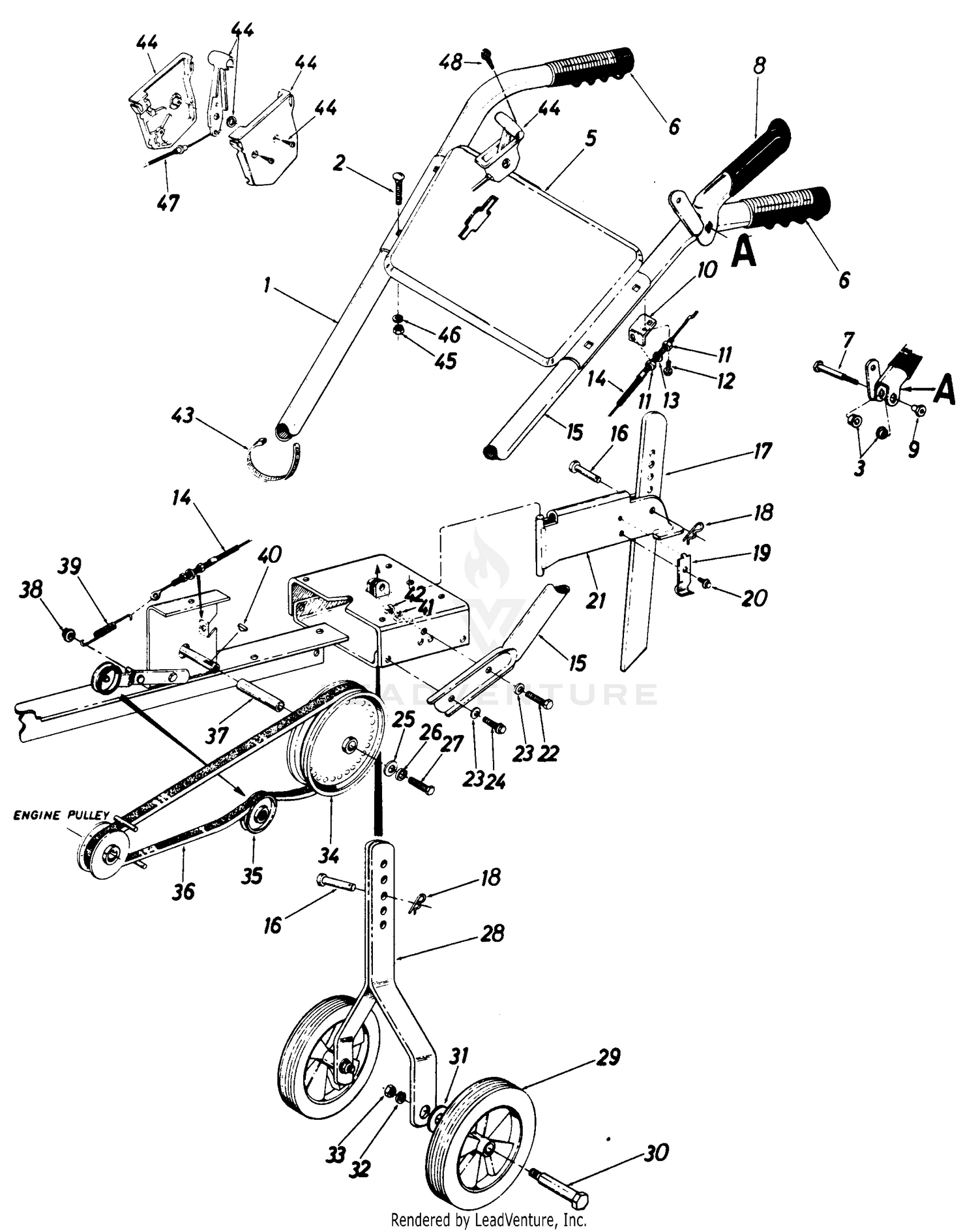

| Ref | Part Number | Description |
|---|
| 1 |
749-0356A |
Handle R . H . Price: Call Us |
| 2 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 3 |
741-0402 |
BEARING-FL Not Available Price: |
| 5 |
784-0036 |
PANEL Not Available Price: |
| 6 |
720-04083 |
Grip This part replaces 720-0180. Price: $12.95 |
| 7 |
938-0560 |
Shoulder Bolt .374 Dia. x 1.53" Lg. This part replaces 738-0560. Price: $9.09 |
| 8 |
784-0031 |
GRIP ASSEMBLY-CLUTCH (LH) Not Available Price: |
| 9 |
938-0561 |
SHOULDER NUT Not Available This part replaces 738-0561. Price: |
| 10 |
15093C |
BRACKET-CL Not Available Price: |
| 11 |
712-0256 |
HEX JAM NUT 5/16-24 Not Available Price: |
| 12 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 13 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 14 |
946-0370 |
CLUTCH CONTROL Not Available This part replaces 746-0370. Price: |
| 15 |
749-0639 |
Handle L.H. Price: Call Us |
| 16 |
711-0415 |
Clevis Pin Price: $4.04 |
| 17 |
04927 |
BAR-DEPTH Not Available Price: |
| 18 |
714-0149B |
Hairpin Cotter Price: $3.95 |
| 19 |
732-0380 |
SPRING Not Available Price: |
| 20 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 21 |
04944 |
TAIL PIECE Not Available Price: |
| 22 |
710-0514 |
Hex Bolt 3/8-16 x 1" Lg. This part replaces 710-0253. Price: $3.78 |
| 23 |
736-0105 |
Belleville Wash. 3/8" I.D. Price: $3.96 |
| 24 |
710-0649 |
HEX SCREW WASH HD 3/8-24X7/8 Not Available Price: |
| 25 |
736-0176 |
Fl-Wash. .25" I.D. x .930" O.D. x .120" Thk. Price: $3.95 |
| 26 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 27 |
710-0412 |
Hex Scr. 1/4-28 x .75" Lg. Price: $4.95 |
| 28 |
06813 |
BRACKET AS Not Available Price: |
| 29 |
753-04874 |
WHEEL KIT REPLACEM'T Not Available This part replaces 734-0968. Price: |
| 30 |
738-0318 |
SCREW-SHLD Not Available Price: |
| 31 |
736-0253 |
Belleville Washer 1/2" I.D. Price: $3.58 |
| 32 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 33 |
712-0200A |
Hex Nut 1/2-20 Thd. Price: $3.85 |
| 34 |
756-0389A |
PULLEY Not Available Price: |
| 35 |
756-0137 |
FLAT IDLER PULLEY-2 1/4 OD X Not Available Price: |
| 36 |
954-0190 |
V-Belt 1/2" X 39.0" Lg. This part replaces 754-0190. Price: $28.78 |
| 37 |
750-0472 |
SPACER Not Available Price: |
| 38 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 39 |
732-0387 |
EXTENSION SPRING Not Available Price: |
| 41 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 42 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 43 |
725-0157 |
Cable Ties Price: $3.46 |
| 44 |
831-0823A |
Throttle Control Box Price: $30.59 |
| 45 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 46 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
