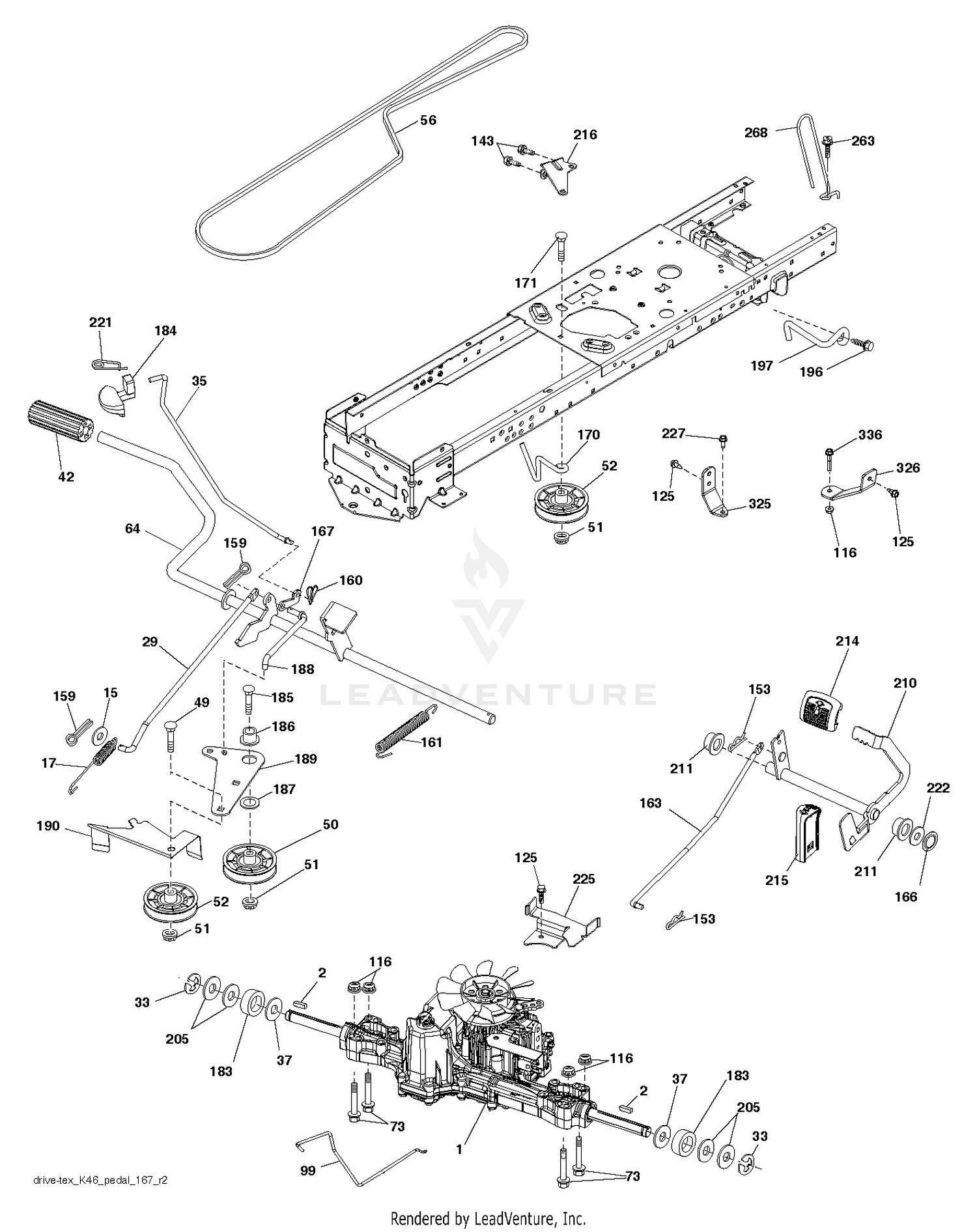

| Ref | Part Number | Description |
|---|
| 1 |
56-7983 |
DISCONTINUED Price: Call Us |
| 2 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
68-5750 |
HOSE ASSEMBLY #25 Price: $152.28 |
| 4 |
237-21 |
O-RING This part replaces 237-35. Price: $0.70 |
| 5 |
68-5760 |
HOSE ASSEMBLY #24 Price: $120.61 |
| 6 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 7 |
237-78 |
O-RING Price: $3.85 |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
322-3 |
SCREW-HH Price: $0.79 |
| 10 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 11 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 12 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 13 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 14 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
70-8330 |
DISCONTINUED Price: Call Us |
| 16 |
70-8370 |
BOLT Price: $73.52 |
| 17 |
114-4643 |
WHEEL This part replaces 242-86. Price: $149.61 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 20 |
254-78 |
BEARING-CONE Price: $12.22 |
| 21 |
253-111 |
SEAL-OIL Price: $6.87 |
| 22 |
70-8490 |
SPACER-SPINDLE, REAR Price: $24.99 |
| 23 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 24 |
75-9440 |
HUB ASM Price: $131.34 |
| 25 |
70-8500 |
TIRE-SMOOTH, 2-PLY Price: $133.31 |
| 26 |
232-24 |
STEM-VALVE Price: $4.03 |
| 27 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 28 |
70-8400 |
REAR FENDER WA *R Price: $142.25 |
| 29 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 31 |
68-4770 |
DISCONTINUED Price: Call Us |
| 32 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
596874801 |
Rods This part replaces 532401031. Price: $6.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532448275. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532411484 |
HANDLE.PARKNG BRK.PRED.LT.428 Price: $24.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
586606502 |
PEDAL.COVER.REVERSE.CRD.X428BK Price: $17.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 268 |
583122001 |
GUARD.MUFFLER This part replaces 532182402. Price: $5.99 |
| 325 |
585668505 |
BRACKET TORQUE STRAP This part replaces 585668502. Price: $5.99 |
| 326 |
585670803 |
BRACKET TORQUE STRAP This part replaces 585670802. Price: $4.99 |
| 336 |
587259602 |
Bolts This part replaces 587259601. Price: $3.99 |
