| Ref | Part Number | Description |
|---|
| 1 |
180358X421 |

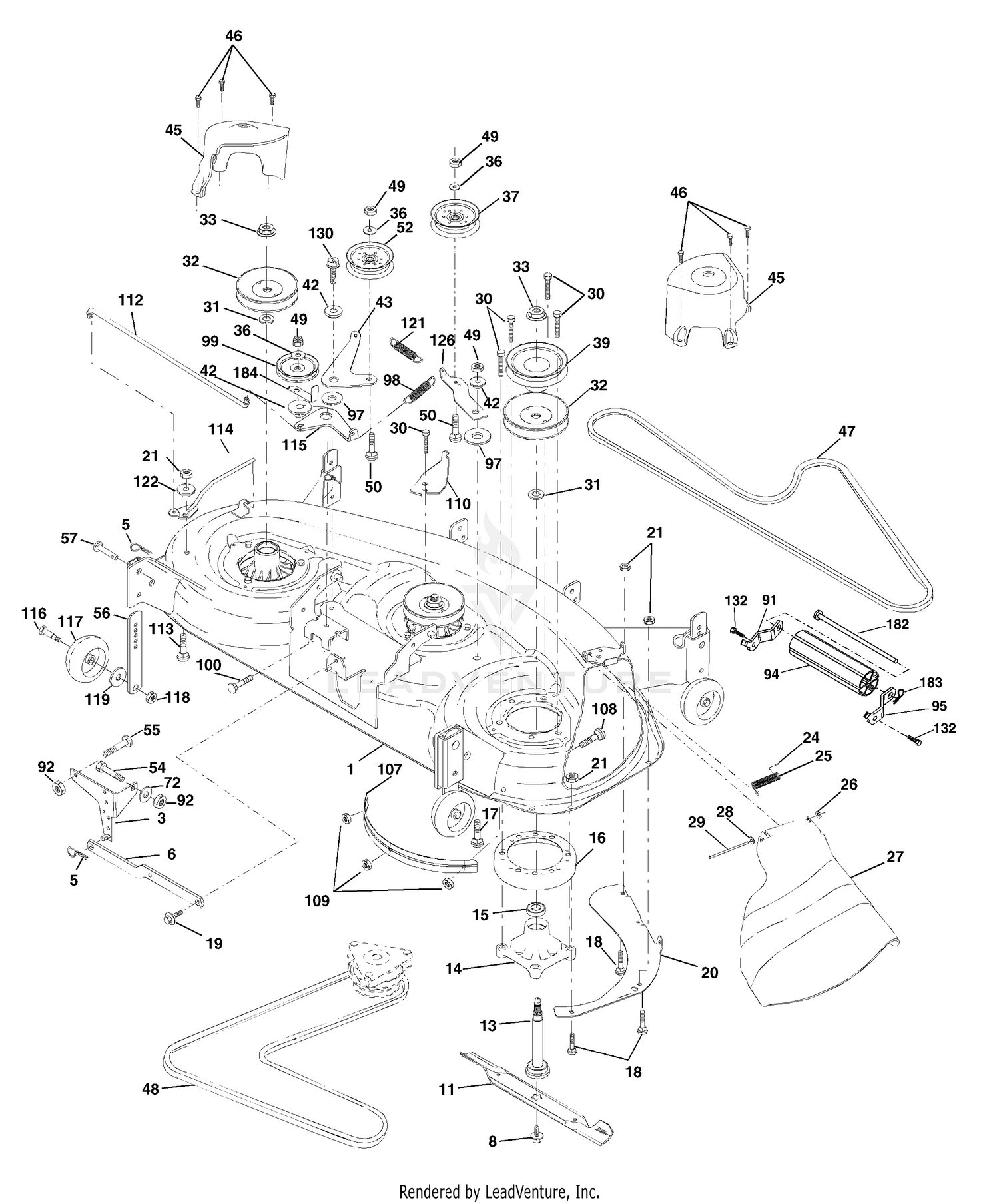

Deck Weldment Mower 48 Price: Call Us |
| 1 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 2 |
93-2279 |
CLAMP-CABLE Price: $7.12 |
| 3 |
138017 |
Bracket Asm., Sway Bar Price: Call Us |
| 4 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 5 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Arm, Suspension, Rear Sway Bar Deck Price: Call Us |
| 7 |
94-9611 |
HANDLE Price: $151.08 |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 8 |
256-311 |
BUSHING-SPLIT Price: $13.37 |
| 9 |
112-0278 |
SWITCH-REED This part replaces 93-2055. Price: $55.79 |
| 10 |
120-5341 |
KIT-SERVICE, ACTUATOR This part replaces 93-2056. Price: $43.38 |
| 11 |
180054 |
Blade Price: Call Us |
| 11 |
94-1378 |
TUBE-PIVOT, HANDLE Price: $9.66 |
| 12 |
33115-040 |
SCREW-HH Price: $1.22 |
| 13 |
174360 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 13 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 14 |
174358 |
Mandrel Asm. Housing Price: Call Us |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
94-6398 |
BRACKET-TRACTION Price: $31.52 |
| 16 |
174493 |
Stripper Mandrel Deck Price: Call Us |
| 16 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 17 |
72110610 |
Bolt RDHD Sq Neck 3/8-16 x 1.25 Price: Call Us |
| 17 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 18 |
251-259 |
BEARING-BALL Price: $13.67 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Hex Hd, Shoulder 5/16-18 Price: Call Us |
| 19 |
94-9617 |
PIN-SPRING Price: $9.91 |
| 20 |
174378 |
Baffle, Vortex Mower Price: Call Us |
| 20 |
233-42 |
KNOB Price: $12.88 |
| 21 |
120-3198 |
ROLLER-PIVOT This part replaces 94-9614. Price: $9.78 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 UNC Price: Call Us |
| 22 |
94-9619 |
BUSHING Price: $17.13 |
| 23 |
3256-67 |
WASHER Price: $0.49 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
94-9618 |
SPACER-SPRING Price: $9.85 |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 25 |
94-9620 |
SPRING-TORSION Price: $20.28 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 27 |
105-5417-03 |
BRACKET-CABLE, SHIFTER Price: $21.91 |
| 27 |
180655X428 |
Deflector Shield Price: Call Us |
| 28 |
106-6356 |
SHIELD-SWITCH Price: $12.11 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 29 |
322-2 |
SCREW-HH Price: $0.69 |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 30 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 31 |
129963 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 32 |
177865 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Flg. Top Lock Cntr. 9/16 Price: Call Us |
| 36 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 37 |
177968 |
Pulley, Idler, Flat Price: Call Us |
| 39 |
174375 |
Pulley, Idler, Driven Price: Call Us |
| 42 |
122052X |
Spacer, Retainer Price: Call Us |
| 43 |
174373 |
Arm, Idler Secondary Price: Call Us |
| 45 |
174343 |
Cover, Mandrel Deck Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
180808 |
V-Belt, Mower, Secondary Price: Call Us |
| 48 |
174368 |
V-Belt, Mower, Primary Price: Call Us |
| 49 |
73680600 |
Nut, Crownlock 3/8-16 UNC Price: Call Us |
| 50 |
72110612 |
Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 52 |
175820 |
Pulley Idler Flat Price: Call Us |
| 54 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Price: Call Us |
| 55 |
72140608 |
Bolt Carriage Sqnk. 3/8-16 x 1 Price: Call Us |
| 56 |
155986 |
Bar Pnt Adj. Price: Call Us |
| 57 |
156941 |
Pin Head Rivet Price: Call Us |
| 72 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 91 |
180534 |
Bracket, Asm Noseroller, LH Price: Call Us |
| 92 |
73800600 |
Nut Lock Hex 3/8-16 Price: Call Us |
| 94 |
176066 |
Noseroller Price: Call Us |
| 95 |
180535 |
Bracket, Asm Noseroller RH Price: Call Us |
| 97 |
133943 |
Washer Hardened Price: Call Us |
| 98 |
174371 |
Spring Primary Drive Price: Call Us |
| 99 |
175080 |
Pulley Idler"V" Price: Call Us |
| 100 |
72110616 |
Bolt RDHD Sqnk 3/8-16 UNC x 2 Price: Call Us |
| 107 |
175294 |
Baffle Vac Edge Mower Price: Call Us |
| 108 |
72140404 |
Bolt RDHD Sqnk 1/4-20 x 1/2 Price: Call Us |
| 109 |
73680400 |
Nut Crownlock 1/4-20 Price: Call Us |
| 110 |
175016 |
Arm Spring Secondary Price: Call Us |
| 112 |
174387 |
Link Tension Relief Lever Price: Call Us |
| 113 |
72110508 |
Bolt Carr. 5/16-18 x 1 Price: Call Us |
| 114 |
174384 |
Tension Asm. Relief Lever Price: Call Us |
| 115 |
174609 |
Arm Spring Tension Relief Price: Call Us |
| 116 |
137644 |
Bolt, Shoulder Price: Call Us |
| 117 |
133957 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 UNC Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 121 |
174371 |
Spring Secondary Drive Price: Call Us |
| 122 |
174606 |
Bushing Pivot Tension Relief Price: Call Us |
| 126 |
174372 |
Arm, Idler, Primary Deck Price: Call Us |
| 130 |
17000616 |
Screw 3/8-16 x 1.0 Price: Call Us |
| 132 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
| 182 |
179127 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
| 184 |
173979 |
Keeper Belt Idler Price: Call Us |
| 180939 |
Relplacement |
Mower, Complete Price: Call Us 180939 |
