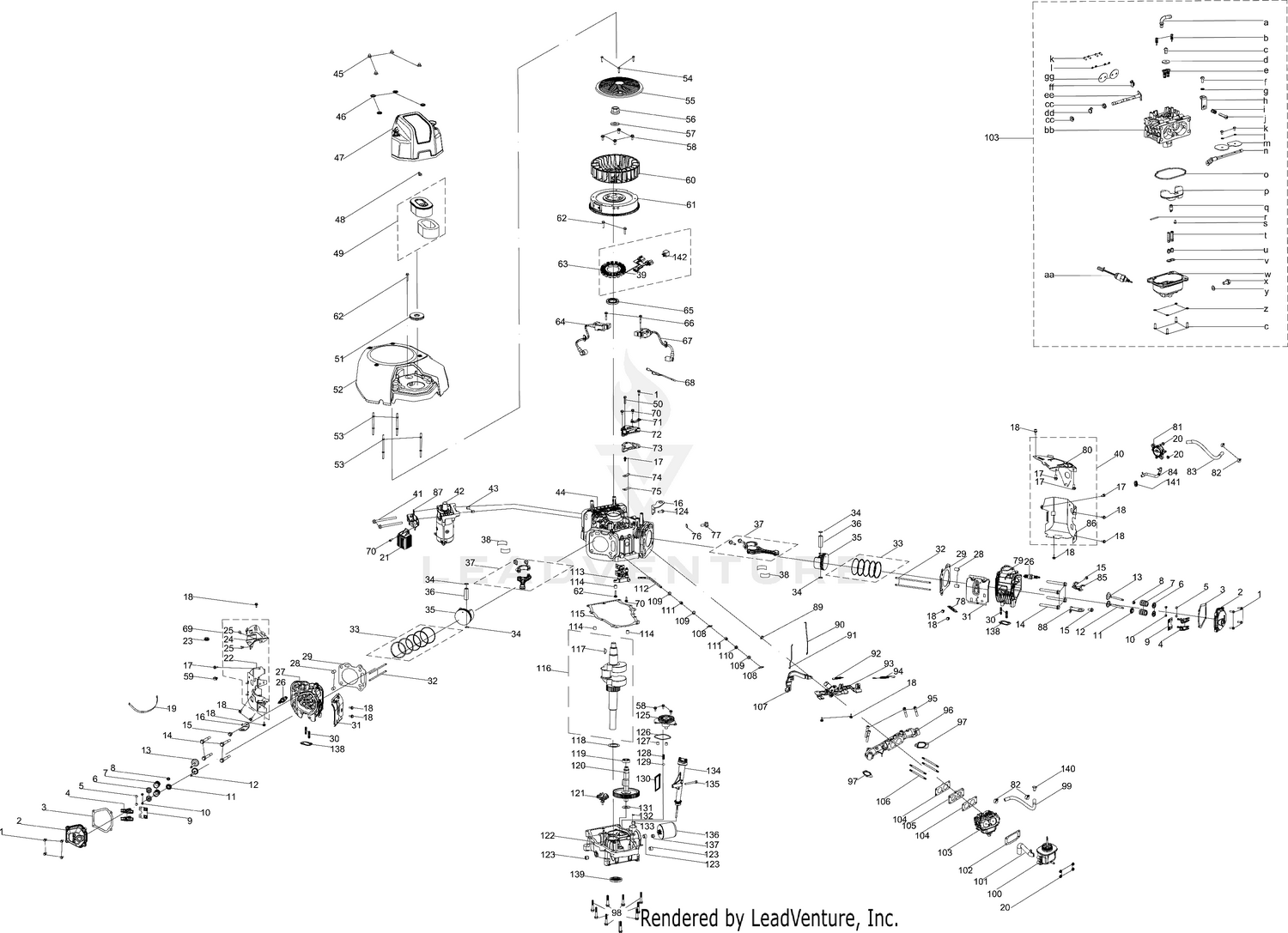

8Q78HUC General Assembly
Parts (173)
| Ref | Part Number | Description |
|---|---|---|
| a | None | Fuel Nipple |
| aa | None | Solenoid Valve |
| b | 793P00129A | IDLE MIXTURE SCREW Price: $2.45 |
| bb | None | Carburetor Body |
| c | None | Screw, M4x12 |
| cc | None | Throttle Shaft Sleeve |
| d | None | Idle Jet Board |
| dd | None | Throttle Shaft Spring |
| e | None | Idle Jet |
| ee | None | Throttle Shaft |
| f | None | Screw, M5x10 |
| ff | None | Throttle Cable Joint |
| g | None | Screw |
| gg | None | Throttle Plate |
| h | None | Idle Adjusting Screw Base |
| i | None | Spring |
| k | None | Bolt, M3x6 |
| l | 736P05209A | LOCK WASHER 3MM Price: $2.45 |
| m | None | Choke Plate |
| n | None | Choke Shaft |
| o | None | O-Ring, Float Bowl |
| p | None | Float |
| q | None | Needle Valve |
| r | None | Float Pin |
| s | None | Screw, M4x6 |
| t | None | Nozzle Tube |
| u | None | Main Jet |
| v | None | Seal |
| w | 951-15914 | FLOAT BOWL Price: $16.02 |
| x | 910-06752 | DRAIN BOLT Price: $4.45 |
| y | 951-11349A | FUEL DRAIN PLUG GASKET Price: $3.66 |
| z | None | Washer, 4 |
| 1 | 710-06292 | BOLT M6 x 22 Price: $4.40 |
| 2 | 951-15352 | VALVE COVER Price: $17.52 |
| 3 | 951-15576 | VALVE COVER GASKET Price: $8.76 |
| 4 | 951-11981A | ROCKER ARM ASSEMBLY Price: $35.16 |
| 5 | 951-12269 | EXHAUST VALVE ADJUSTER Price: $5.48 |
| 6 | 951-14911A | VALVE SPRING SEAT Price: $4.64 |
| 7 | 951-15356 | VALVE SPRING Price: $4.91 |
| 8 | 951-11964A | INTAKE VALVE SEAL Price: $9.96 |
| 9 | 951-11965B | PUSH ROD GUIDE Price: $5.75 |
| 10 | 951-14912A | VALVE CAP Price: $3.03 |
| 11 | 951-12077A | VALVE SPRING RETAINER Price: $3.49 |
| 12 | 951-15374 | EXHAUST VALVE Price: $21.94 |
| 13 | 951-15373 | INTAKE VALVE Price: $18.44 |
| 14 | 710-06507 | HEX HEAD BOLT - M10X1.25X87 Price: $6.24 |
| 15 | 710-06593 | HEX HEAD BOLT M8X16 Not Available Price: |
| 16 | 907-06699 | LIFT HOOK BRACKET - LH Price: $11.56 |
| 17 | 710-04914 | BOLT M6-1 x 10 GR8.8 Price: $3.71 |
| 18 | 710-04915 | BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 19 | 725-06031A | CABLE TIE 3x150 Price: $2.04 |
| 20 | 712-05015 | HEX NUT Price: $5.78 |
| 21 | 951-15920 | REGULATOR ASSEMBLY Price: $120.63 |
| 22 | 907-07190 | CYLINDER HEAD BAFFLE Price: $15.49 |
| 23 | 931-13497 | HEAT SHIELD GROMMET Price: $4.69 |
| 24 | 907-06783 | FLYWHEEL SHROUD - LH Price: $9.84 |
| 25 | 710-06604 | HEX HEAD SCREW M6X10 Not Available Price: |
| 26 | 951-10292A | SPARK PLUG (F6RTC/RN11YC/BPR6ES) Price: $6.35 |
| 27 | 951-15804 | CYLINDER HEAD - LH Price: $228.32 |
| 28 | 715-04097A | DOWEL PIN 12x20 Price: $4.64 |
| 29 | 921-04967 | CYLINDER HEAD GASKET Price: $13.13 |
| 30 | 710-04911 | STUD M8 x 36 Price: $3.65 |
| 31 | 951-15922 | SHROUD Price: $9.61 |
| 32 | 951-15355 | PUSH ROD Price: $5.78 |
| 33 | 951-05422 | PISTON RIN SET Price: $24.21 |
| 34 | 951-11632A | PISTON PIN SNAP RING Price: $3.53 |
| 35 | 951-15385 | PISTON ASSEMBLY Price: $40.38 |
| 36 | 911-06733 | PISTON PIN Price: $5.90 |
| 37 | 951-05376 | CONNECTING ROD Price: $109.76 |
| 38 | 951-15587 | CONNETING ROS BEARING Price: $12.96 |
| 39 | 751P21432 | CHARGING COIL Price: $70.34 |
| 40 | 651P06696 | SHROUD ASSEMBLY (RH) Price: $17.49 |
| 41 | 710-06522 | HEX HEAD BOLT M8X110 Price: $4.09 |
| 42 | 751P21448 | STARTER MOTOR Price: $276.33 |
| 43 | 915-05026 | DOWEL PIN Price: $4.40 |
| 44 | 951-15865A | CRANKCASE Price: $605.64 |
| 45 | 712-04276A | ACORN NUT M6-1 Price: $5.38 |
| 46 | 736-05109 | WASHER Price: $5.34 |
| 47 | 931-05665 | AIR FILTER COVER ASSEMBLY Price: $43.06 |
| 48 | 712-05227 | WING NUT Price: $4.11 |
| 49 | 937-05145 | AIR FILTER ELEMENT Price: $27.55 |
| 50 | 710-04943 | BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 51 | 951-15444 | SEAL Price: $5.48 |
| 52 | 931-05664 | BLOWER HOUSING Price: $67.21 |
| 53 | 710-06496 | STUD - M6-1.0X69.8X117 Price: $6.06 |
| 54 | 710-05303 | BOLT 5.5 x 25 Price: $3.56 |
| 55 | 951-12205 | DEBRIS SHIELD Price: $9.07 |
| 56 | 912-05102 | NUT M20 x 1.5 Price: $7.35 |
| 57 | 936-05110 | WASHER 20.5 x 5 x 40 Price: $5.34 |
| 58 | 710-05003A | BOLT M6-1 x 18 This part replaces 710-05003. Price: $3.11 |
| 59 | 931-10630A | WIRE SUPPORT CLAMP Price: $4.75 |
| 60 | 751P21449 | COOLING FAN Price: $18.59 |
| 61 | 951-16066 | FLYWHEEL Price: $258.53 |
| 62 | 710-04919 | BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 63 | 651P08135 | CHARGING COIL Price: $67.21 |
| 64 | 951-15868 | IGNITION MODULE (LH) Price: $77.53 |
| 65 | 937-05067 | OIL SEAL 38 x 58 x 8 Price: $13.55 |
| 66 | 710-04969 | BOLT-M6-1 x 30 GR8.8 Price: $3.66 |
| 67 | 951-15869 | IGNITION MODULE (RH) Price: $77.53 |
| 68 | 925-07545 | WIRE HARNESS Price: $10.34 |
| 69 | 651P06615 | SHROUD ASSEMBLY (LH) Price: $14.45 |
| 70 | 710-04968 | BOLT M6 x 16 Price: $5.77 |
| 71 | 751P18654 | FLYWHEEL GUARD BRACKET Price: $5.61 |
| 72 | 951-15810 | BEATHER COVER Price: $15.94 |
| 73 | 951-15811 | BREATHER COVER GASKET Price: $8.76 |
| 74 | 951-15399 | BREATHER REED BRACKET Price: $5.35 |
| 75 | 951-15398 | BREATHER REED ASSEMBLY Price: $5.25 |
| 76 | 736-05221 | WASHER 20.5X1.5X18 Not Available Price: |
| 77 | 710-06607 | HEX HEAD BOLT M10X1X10 Not Available Price: |
| 78 | 951-15889 | CLIP Price: $4.62 |
| 79 | 951-15805 | CYLINDER HEAD - RH Price: $228.32 |
| 80 | 951-15871 | SHROUD (RH) Price: $14.21 |
| 81 | 751P22453 | FUEL PUMP This part replaces 951-15872. Price: $28.47 |
| 82 | 951-11700A | CARBURETOR HOSE CLAMP Price: $3.60 |
| 83 | 735-05053A | FUEL HOSE Price: $8.96 |
| 84 | 935-05273 | FUEL LINE Price: $10.34 |
| 85 | 951-15460 | MOUNTING BRACKET Price: $6.24 |
| 86 | 951-15873 | CYLINDER HEAD BAFFLE Price: $14.21 |
| 87 | 951-15890 | STARTER RELAY SUPPORT Price: $17.21 |
| 88 | 907-06675 | REAR LIFT BRACKET Price: $5.64 |
| 89 | 931-13505 | CHOKE LINKAGE LOCK CLAMP Price: $4.29 |
| 90 | 951-15874 | THROTTLE LINKAGE Price: $6.53 |
| 91 | 951-15875 | CHOKE LEVER Price: $4.97 |
| 92 | 932-05617 | GOVERNOR SPRING Price: $5.67 |
| 94 | 932-05618 | GOVERNOR SPRING Price: $5.67 |
| 95 | 710-06505 | SCREW - M8X50 Not Available Price: |
| 96 | 919-05266 | INTAKE MANIFOLD Price: $118.92 |
| 97 | 921-04914 | INTAKE MANIFOLD GASKET 9Q78 Price: $8.76 |
| 98 | 710-06501 | HEX HEAD FLANGE BOLT M8X48 Price: $5.01 |
| 99 | 951-15877 | FUEL LINE 6.3 x 12.5 x 470 Price: $42.65 |
| 100 | 931-05667 | INTAKE MANIFOLD Price: $43.06 |
| 101 | 951-15878 | BREATHER HOSE Price: $8.61 |
| 102 | 921-04990 | AIR FILTER HOUSING GASKET Price: $6.88 |
| 103 | 651P08886 | CARBURETOR This part replaces 951-05588A. Price: $146.27 |
| 104 | 921-04991 | CARBURETOR GASKET Price: $6.88 |
| 105 | 951-15879 | INSULATOR This part replaces 751-15879. Price: $9.16 |
| 106 | 710-04910 | STUD M6-1 x 105 Price: $5.51 |
| 107 | 951-15880 | GOVERNOR LEVER Price: $12.04 |
| 108 | 714-04077 | GOVERNOR SHAFT CLIP Price: $5.30 |
| 109 | 736-05188 | FLAT WASHER 8.5X15.8X2 Price: $2.73 |
| 110 | 951-12388 | GOVERNOR SEAL Price: $3.69 |
| 111 | 941-05216 | NEEDLE BEARING 8X12X10 Price: $7.99 |
| 112 | 951-15403 | GOVERNOR ARM ROD Price: $12.27 |
| 113 | 951-15384 | ROACKER ARM Price: $79.54 |
| 114 | 715-05064 | PIN 8X12 Price: $3.33 |
| 115 | 921-04887 | CRANKCASE GASKET Price: $20.90 |
| 116 | 951-15366 | CRANKSHAFT ASSEMBLY Price: $377.43 |
| 117 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 118 | 736-05187 | WASHER - 38.5X1.0X54 Price: $3.71 |
| 119 | 941-05213 | CAMSHAFT BEARING Price: $9.78 |
| 120 | 951-15375 | CAMSHAFT ASSEMBLY Price: $157.36 |
| 121 | 951-05589 | GOVERNOR GEAR Price: $16.02 |
| 122 | 951-15360 | CRANKCASE COVER Price: $87.65 |
| 123 | 951-11644 | ENGINE PLUG 3/8 NPT Price: $8.96 |
| 124 | 710-06506 | HEX HEAD SCREW M8X16 Price: $4.26 |
| 125 | 951-05449 | OIL PUMP ASSEMBLY Price: $68.93 |
| 126 | 921-04916 | OIL PUMP GASKET Price: $5.60 |
| 127 | 715-04088A | DOWEL PIN Price: $2.97 |
| 128 | 932-05534 | OIL PUMP SPRING Price: $4.49 |
| 129 | 951-15588 | OIL PUMP STEEL BALL Price: $3.50 |
| 130 | 951-15383 | OIL PUMP SCREEN Price: $10.52 |
| 131 | 736-05199 | THRUST WASHER 17.4X25.9X1.0 Price: $3.58 |
| 132 | 951-15589 | O-RING 13.2X2.65 Price: $3.50 |
| 133 | 951-15590 | CRANKCASE OIL PASSAGE PIN Price: $3.25 |
| 134 | 951-05450B | DIPSTICK Price: $29.58 |
| 135 | 710-05234 | SCREW M6-1:50:CL5. Price: $5.38 |
| 136 | 951-12690 | ENGINE OIL FILTER Price: $15.89 |
| 137 | 951-12253 | SCREW JOINT OIL FILTER ADAPTER Price: $6.87 |
| 138 | 921-04936 | EXHAUST GASKET Price: $7.02 |
| 139 | 937-05190 | OIL SEAL 38 x 58 x 8 Price: $16.38 |
| 140 | 951-14091A | PLUG Price: $2.68 |
| 141 | 731P18651 | GROMMET Price: $0.98 |
| 142 | 725P08065 | RELAY Price: $17.51 |
