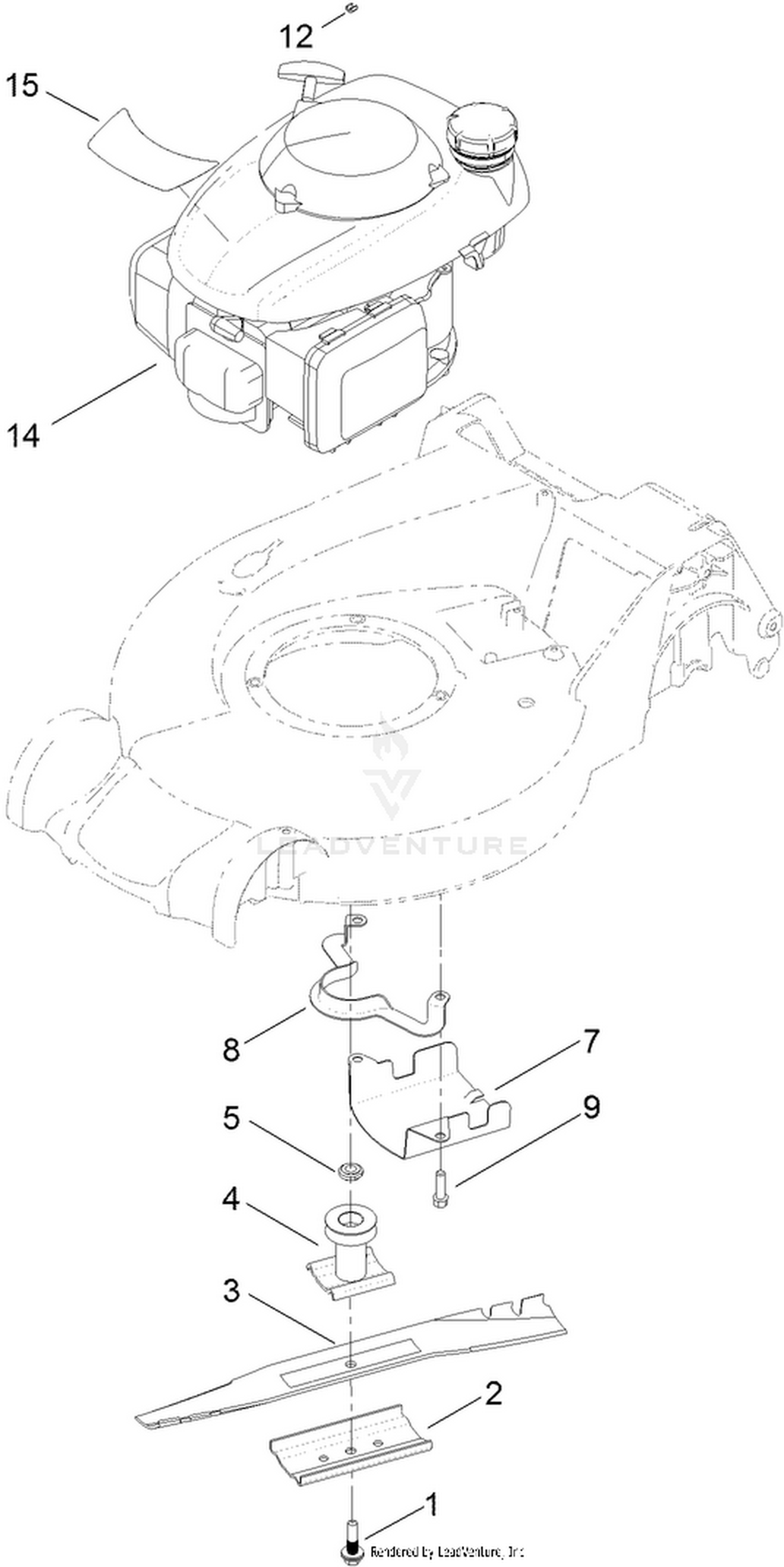

Engine and Blade Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-5270 | BOLT-BLADE Price: $2.30 |
| 2 | 108-3766-03 | SUPPORT-BLADE Price: $7.65 |
| 3 | 110-7080 | BLADE Price: Call Us |
| 4 | 114-2774 | DRIVER-BLADE Price: $22.37 |
| 5 | 106-3999 | SPACER-DRIVER Price: $2.22 |
| 7 | 107-7489-03 | SHIELD-GRASS Price: $10.94 |
| 8 | 108-8110-03 | GUIDE-BELT Price: $10.46 |
| 9 | 95-1727 | SCREW-TAPTITE This part replaces 92-1648. Price: $1.79 |
| 12 | 2210-316 | STOP-ROPE This part replaces 92-1701. Price: $4.41 |
