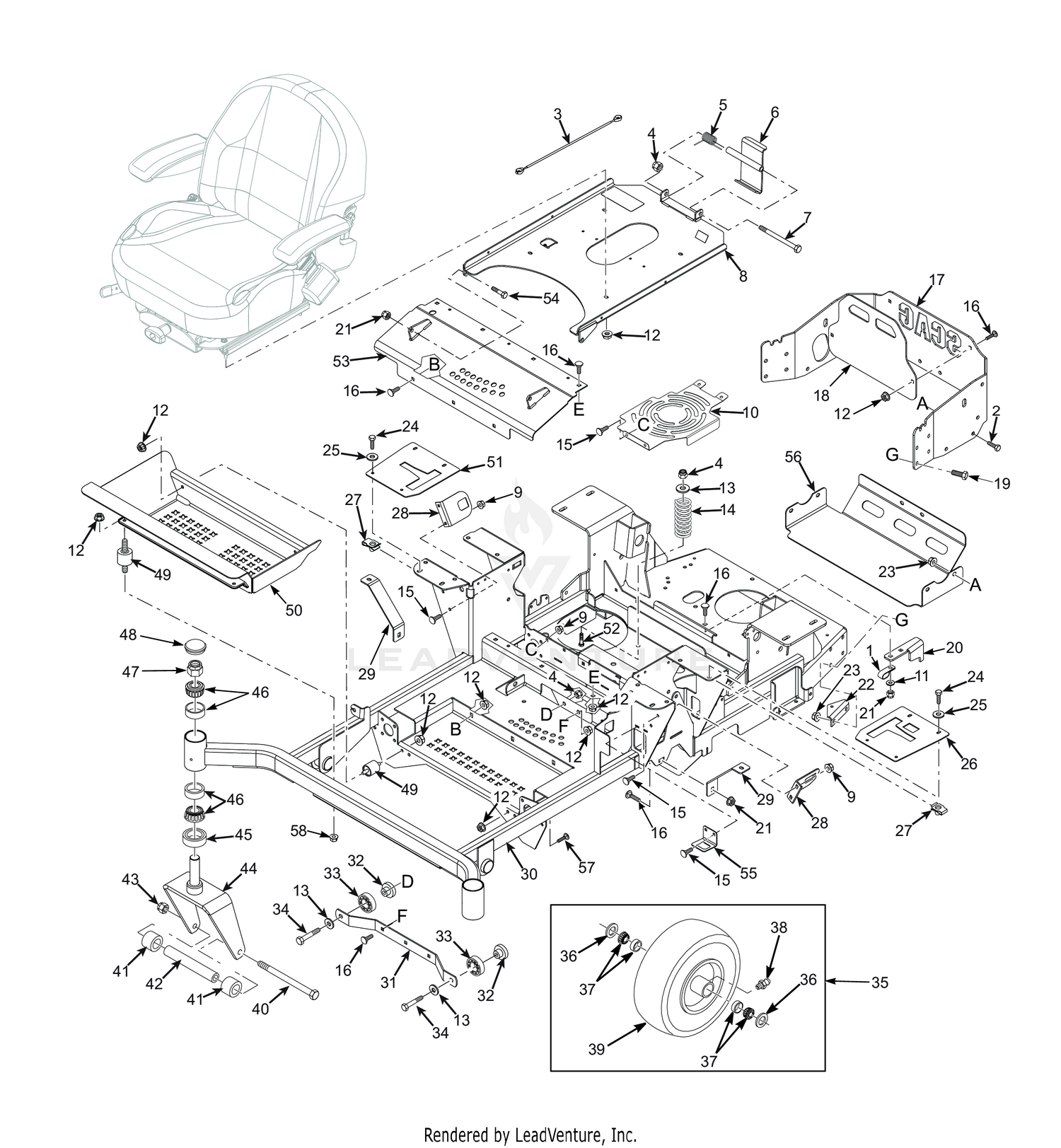

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 1 |
486545 |
Seat Assembly Price: Call Us |
| 2 |
04017-27 |
Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd Price: Call Us |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 3 |
26-1840 |
PULLEY-IDLER Price: $42.68 |
| 3 |
483559 |
Cable, Seat Stop Price: Call Us |
| 4 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 4 |
26-1760 |
PULLEY AND HUB ASM Price: $214.86 |
| 5 |
26-1860 |
SPACER-IDLER PULLEY Price: $4.75 |
| 5 |
483371 |
Spring, Seat Latch Price: Call Us |
| 6 |
32128-21 |
NUT-HF Price: $0.39 |
| 6 |
451883 |
Weldment, Seat Latch Price: Call Us |
| 7 |
04001-100 |
Bolt, 3/8-16 x 6.00" Hex Head Price: Call Us |
| 7 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 8 |
26-1870-03 |
MOUNT-IDLER This part replaces 26-1870. Price: $74.13 |
| 8 |
462998 |
Seat Plate Weldment Price: Call Us |
| 9 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 9 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 10 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
428503 |
Fan Cover, RH Price: Call Us |
| 11 |
26-1850 |
STUD-IDLER Price: $32.97 |
| 11 |
428502 |
Fan Cover, LH Price: Call Us |
| 12 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 12 |
21-0890 |
V-BELT Price: $32.90 |
| 13 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 13 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 14 |
3-8514 |
WASHER-THRUST Price: $1.58 |
| 14 |
483372 |
Spring, Seat Price: Call Us |
| 15 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 15 |
84-2060 |
PULLEY AND HUB ASM This part replaces 26-9100. Price: $276.94 |
| 16 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 16 |
253-138 |
SEAL-OIL Price: $10.33 |
| 17 |
427546 |
Bumper, (Black) Price: Call Us |
| 18 |
38-9200 |
DISCONTINUED X-REF Price: Call Us |
| 18 |
427862 |
Guard, Engine, (Scag Gold) Price: Call Us |
| 19 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 19 |
68-7280 |
DECAL - BLD BOLT TORQUE This part replaces 26-7960. Price: $11.26 |
| 20 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 20 |
425696 |
Bracket, Anti-Rotation Price: Call Us |
| 21 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 21 |
84-2020 |
HOUSING-SPINDLE This part replaces 26-1630. Price: $297.31 |
| 22 |
302-52 |
FITTING-GREASE Price: $1.49 |
| 22 |
424639 |
Bracket, Dump Mounting Price: Call Us |
| 23 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 23 |
26-1690 |
DISCONTINUED Price: Call Us |
| 24 |
04017-06 |
CAP SCREW, 1/4-20 X 1" SERRATED FLANGE HEX Price: Call Us |
| 24 |
29-5530-03 |
BLADE-STANDARD, 25 INCH, LH This part replaces 29-5530. Price: $40.07 |
| 25 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 25 |
26-1990 |
WASHER-BELLEVILLE Price: $16.49 |
| 26 |
26-1820 |
CAPSCREW Price: $37.35 |
| 26 |
463168 |
Control Plate w/Decal, LH (Black) Price: Call Us |
| 27 |
04110-01 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 27 |
49-8320 |
BEARING ASM This part replaces 26-1730. Price: $104.42 |
| 28 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 28 |
424511 |
Bracket, Switch Mount Price: Call Us |
| 29 |
26-1880 |
SPACER-IDLER MOUNT Price: $13.91 |
| 30 |
323-12 |
SCREW-HH Price: $1.14 |
| 31 |
3231-29 |
SCREW-CARR Price: $0.68 |
| 31 |
424480 |
Support, Deck Guide Price: Call Us |
| 32 |
43703 |
Spacer, Bearing Price: Call Us |
| 32 |
84-5370 |
SPINDLE This part replaces 26-1680. Price: $259.86 |
| 33 |
31-0750 |
ROLLER-FRONT Price: $42.15 |
| 33 |
483379 |
Bearing Price: Call Us |
| 34 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 34 |
3296-38 |
NUT-LOCK, NI This part replaces 32-9610. Price: $1.89 |
| 35 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 35 |
486294 |
Wheel Assembly, (Black) Price: Call Us |
| 36 |
20-4690 |
TORO LOGO DECAL Price: $6.67 |
| 36 |
482622 |
Roller Bearing, Short Price: Call Us |
| 37 |
482621 |
Bearing, Tapered Roller Price: Call Us |
| 38 |
48114-10 |
Fitting, Grease Price: Call Us |
| 39 |
482619 |
Tire, 13 x 6.50 4-Ply (61A, 72A) Price: Call Us |
| 40 |
04001-167 |
Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS) Price: Call Us |
| 41 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 42 |
43583 |
Sleeve, Caster Wheel (61V, 72A/VS) Price: Call Us |
| 43 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 44 |
453007 |
Yoke Weldment, (Black)) Price: Call Us |
| 45 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 46 |
48668 |
Bearing Set Price: Call Us |
| 47 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 48 |
484195 |
Cap, Grease Price: Call Us |
| 49 |
483493 |
Rubber Isolator Price: Call Us |
| 51 |
463169 |
Control Plate w/Decal, RH (Black) Price: Call Us |
| 52 |
04003-11 |
SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4" Price: Call Us |
| 54 |
04017-27 |
Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd Price: Call Us |
| 55 |
425889 |
Switch Bracket Price: Call Us |
| 56 |
427864 |
Heat Shield, (Scag Gold) Price: Call Us |
| 57 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 58 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 59 |
48030-18 |
Cable Clamp, Double Price: Call Us |
| 425700 |
Bracket, |
Tank Mount, SFZ61 Price: Call Us 425700 |
| 428937 |
Heat |
Shield - Scag SR / Kohler ZT Price: Call Us 428937 |
| 453004 |
Footplate |
Weldment, (Black) - SPZ61 Price: Call Us 453004 |
| 463109 |
Deck |
Lift Cover w/Decal, (Scag Gold Logo) - SPZ61 Price: Call Us 463109 |
| 463484 |
Mainframe |
Assy., w/Decals (Black)- SPZ61H Price: Call Us 463484 |
