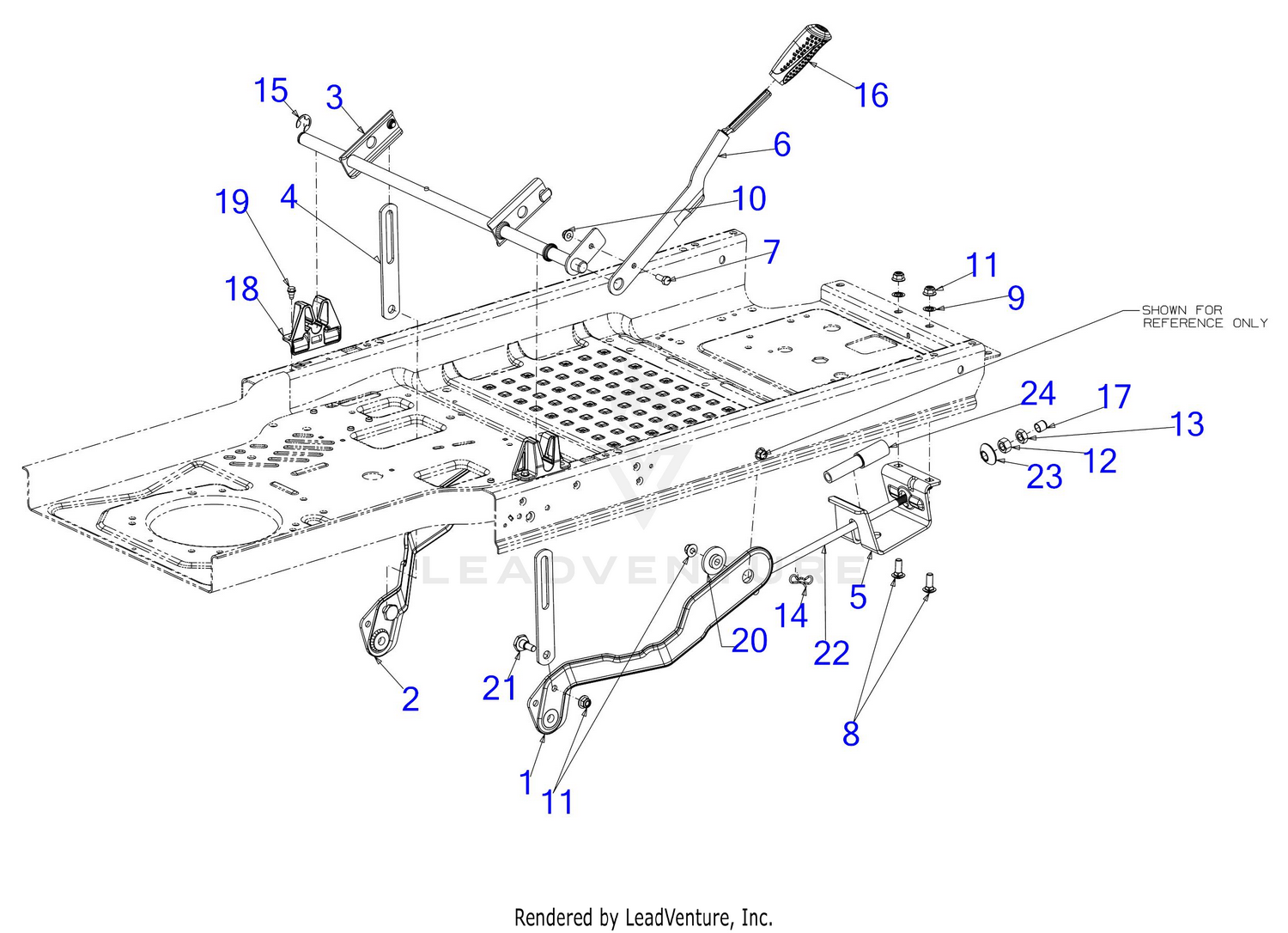

| Ref | Part Number | Description |
|---|
| 1 |
603-05107B-0637 |
DECK LIFT PLATE ASSEMBLY (RH) (POWDER BLACK) Price: $83.99 |
| 2 |
603-05108B-0637 |
DECK LIFT PLATE ASSEMBLY (LH) (POWDER BLACK) Price: $83.99 |
| 3 |
603E05306B |
DECK LIFT SHAFT ASSEMBLY Price: $108.27 |
| 5 |
703-08644A-0637 |
FRONT LIFT ROD MOUNTING BRACKET (POWDER BLACK) This part replaces 703-08644-0637. Price: $16.10 |
| 6 |
703Z09621A |
DECK LIFT HANDLE Price: $12.96 |
| 7 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 8 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 9 |
712-0229 |
PUSH NUT Price: $3.14 |
| 10 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 11 |
712-04065 |
NUT Price: $3.68 |
| 12 |
712-05046 |
HEX NUT NYLOK 1/2-13 Price: $3.74 |
| 13 |
712-3048 |
Nut, Hex Jam, 1/2-13 GR5 This part replaces 912-3048. Price: $4.08 |
| 14 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 15 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 16 |
720-04139B |
GRIP Price: $16.45 |
| 17 |
726-05009 |
LIFT ROD END CAP Price: $3.70 |
| 18 |
731-08782 |
DECK LIFT BRACKET Price: $7.71 |
| 19 |
738-04278 |
SHOULDER SCREW 1/4-20X.50 19"PSH Price: $5.99 |
| 20 |
738-05029 |
SHOULDER SPACER -S Price: $8.34 |
| 21 |
738-0507B |
Shoulder Screw, .5D x .434 This part replaces 938-0507B. Price: $3.86 |
| 22 |
747-06946 |
FRONT LIFT DECK ROD Price: $23.29 |
| 23 |
748-04069A |
LIFT PIVOT CUP Price: $4.93 |
