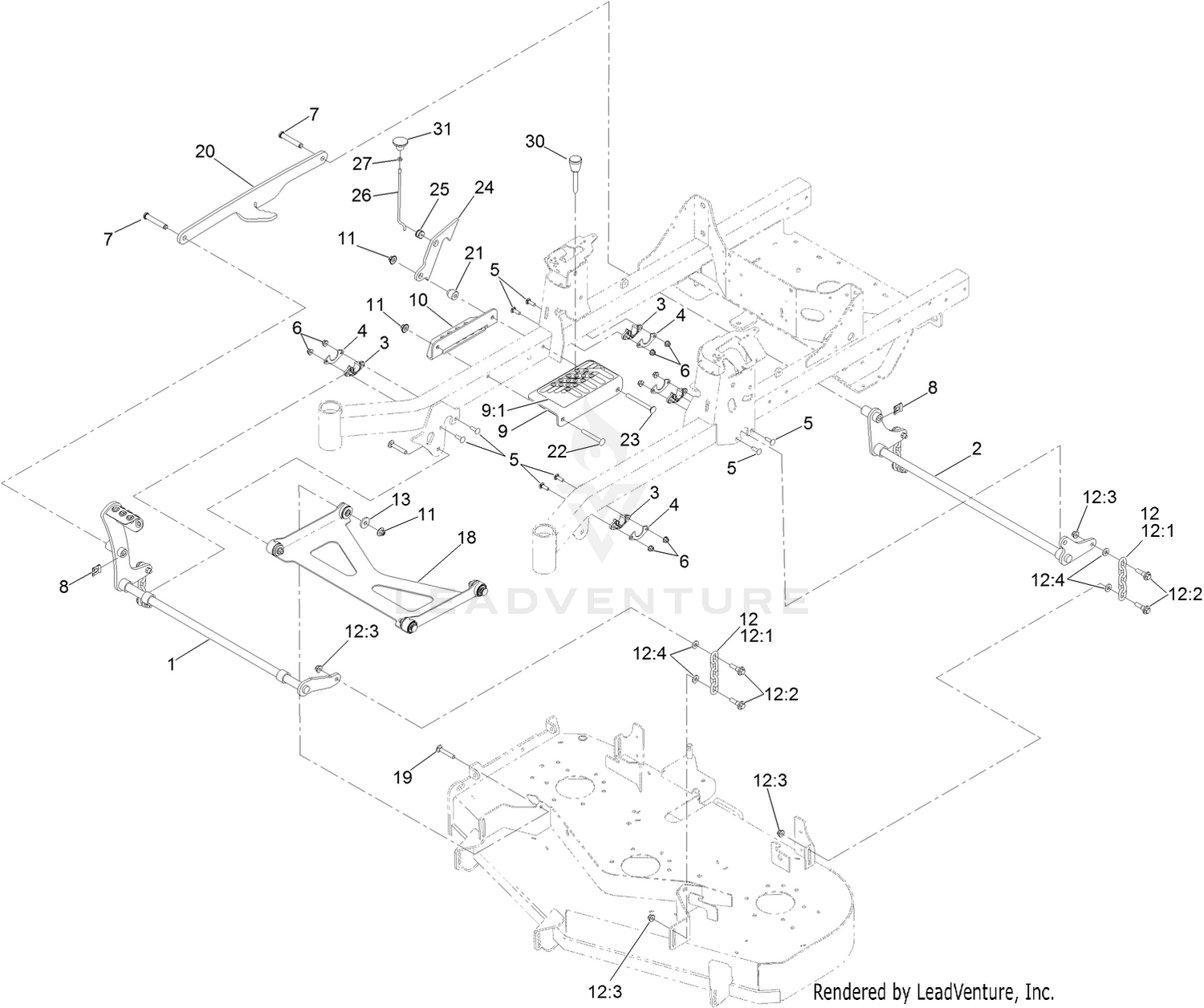

Deck Lift Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 126-3342-03 | SHAFT-LIFT, DECK Price: $71.38 |
| 2 | 126-3343-03 | SHAFT-LIFT, DECK (REAR) Price: $58.40 |
| 3 | 115-5065 | BUSHING-FLANGE Price: $4.58 |
| 4 | 116-2887 | GUSSET-LIFT, DECK Price: $3.10 |
| 5 | 3230-22 | SCREW-CARR Price: $1.99 |
| 6 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 7 | 126-9181 | PIN-CLEVIS Price: $5.44 |
| 8 | 138-8491 | CLIP-PIN Price: $4.31 |
| 9 | 126-4535 | BRACKET ASM Price: $23.37 |
| 10 | 126-4640-03 | ANGLE-HOC, LOWER Price: $73.52 |
| 11 | 109-6658 | NUT-FLANGE, NI Price: $0.89 |
| 12 | 126-8877 | DECK CHAIN ASM Price: $9.06 |
| 13 | 1-373034 | WASHER Price: $3.19 |
| 18 | 126-8365 | DECK STRUT ASM Price: $90.85 |
| 19 | 3231-7 | SCREW-CARR Price: $1.01 |
| 20 | 126-4639-03 | LINK-LIFT Price: $40.10 |
| 21 | 126-5221 | SPACER-STEPPED Price: $3.90 |
| 22 | 3231-42 | SCREW-CARR Price: $2.29 |
| 23 | 135-0313 | SCREW-CARR Price: $1.89 |
| 24 | 126-5222 | PLATE-LOCK, TRANSPORT Price: $12.02 |
| 25 | 126-5593 | GROMMET Price: $0.92 |
| 26 | 126-5223 | ROD-LOCK, TRANSPORT Price: $2.40 |
| 27 | 3218-1 | NUT-JAM Price: $1.29 |
| 30 | 126-5401 | PIN-HOC Price: $13.36 |
