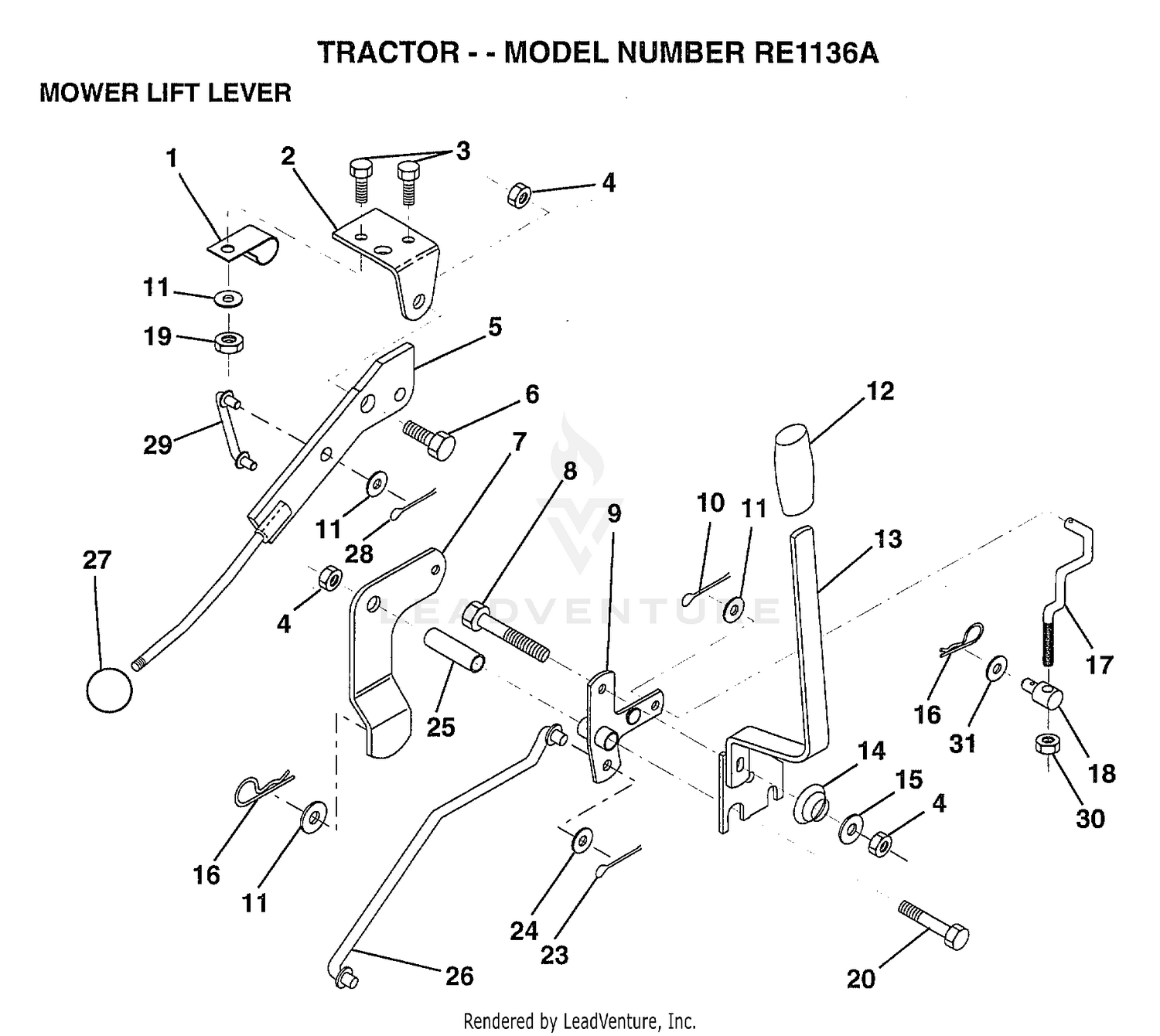

| Ref | Part Number | Description |
|---|
| 2 |
122018X |
BRKT CLUTCH Price: Call Us |
| 3 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 4 |
73680600 |
SUB= 73690600 Price: Call Us |
| 5 |
145187 |
LEVER.ASM.CLUTCH Price: Call Us |
| 7 |
135371 |
MWR CLUTCH ARM AS Price: Call Us |
| 8 |
74760636 |
BOLT Price: Call Us |
| 010 |
115-4117 |
COMPLETE GEAR CASE This part replaces 105-3707. Price: $569.64 |
| 10 |
76020412 |
COTTER PIN Price: Call Us |
| 11 |
19131316 |
WASHER Price: Call Us |
| 12 |
131861 |
SUB= 532131861 Price: Call Us |
| 13 |
139352 |
HANDLE.ASM.LIFT Price: Call Us |
| 14 |
123496X |
SPRING COMPRESSIO Price: Call Us |
| 15 |
19131212 |
WASHER T Price: Call Us |
| 16 |
4921H |
SPRING.RETAINER Price: Call Us |
| 18 |
142028 |
TRUNION ADJ Price: Call Us |
| 19 |
73680400 |
SUB= 73690400 Price: Call Us |
| 020 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 20 |
74760644 |
BOLT Price: Call Us |
| 23 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 24 |
19171612 |
WASHER GT Price: Call Us |
| 25 |
121933X |
TUBE SPACER Price: Call Us |
| 26 |
141470 |
ROD LIFT MOWER Price: Call Us |
| 27 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 28 |
76020312 |
SUB= 3145 Price: Call Us |
| 29 |
131655 |
CLUTCH LINK Price: Call Us |
| 030 |
98-9388 |
JOINT-PIPE Price: $31.66 |
| 30 |
73350600 |
NUT Price: Call Us |
| 040 |
98-9544 |
SPRING Price: $0.94 |
| 050 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 060 |
98-9380 |
BALL Price: $0.84 |
| 110 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 120 |
105-3708 |
COVER-PUMP, OIL Price: $18.70 |
| 130 |
98-9592 |
SCREW Price: $0.70 |
| 140 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 150 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 160 |
105-3797 |
BOLT Price: $1.40 |
| 170 |
98-9356 |
BOLT Price: $2.06 |
| 180 |
98-9437 |
BOLT Price: $1.05 |
| 190 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 200 |
99-3511 |
BOLT Price: $5.29 |
| 210 |
105-3709 |
STUD Price: $1.13 |
| 220 |
98-7572 |
NUT Price: $0.32 |
| 230 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 240 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 250 |
98-9372 |
O-RING Price: $1.66 |
| 260 |
105-3777 |
O-RING Price: $1.72 |
| 270 |
105-3710 |
STUD Price: $1.16 |
| 280 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 290 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-9449. Price: $7.25 |
