Home / OPE / 0057890 / Transaxle-Gear Drive-SN 70001 & Up

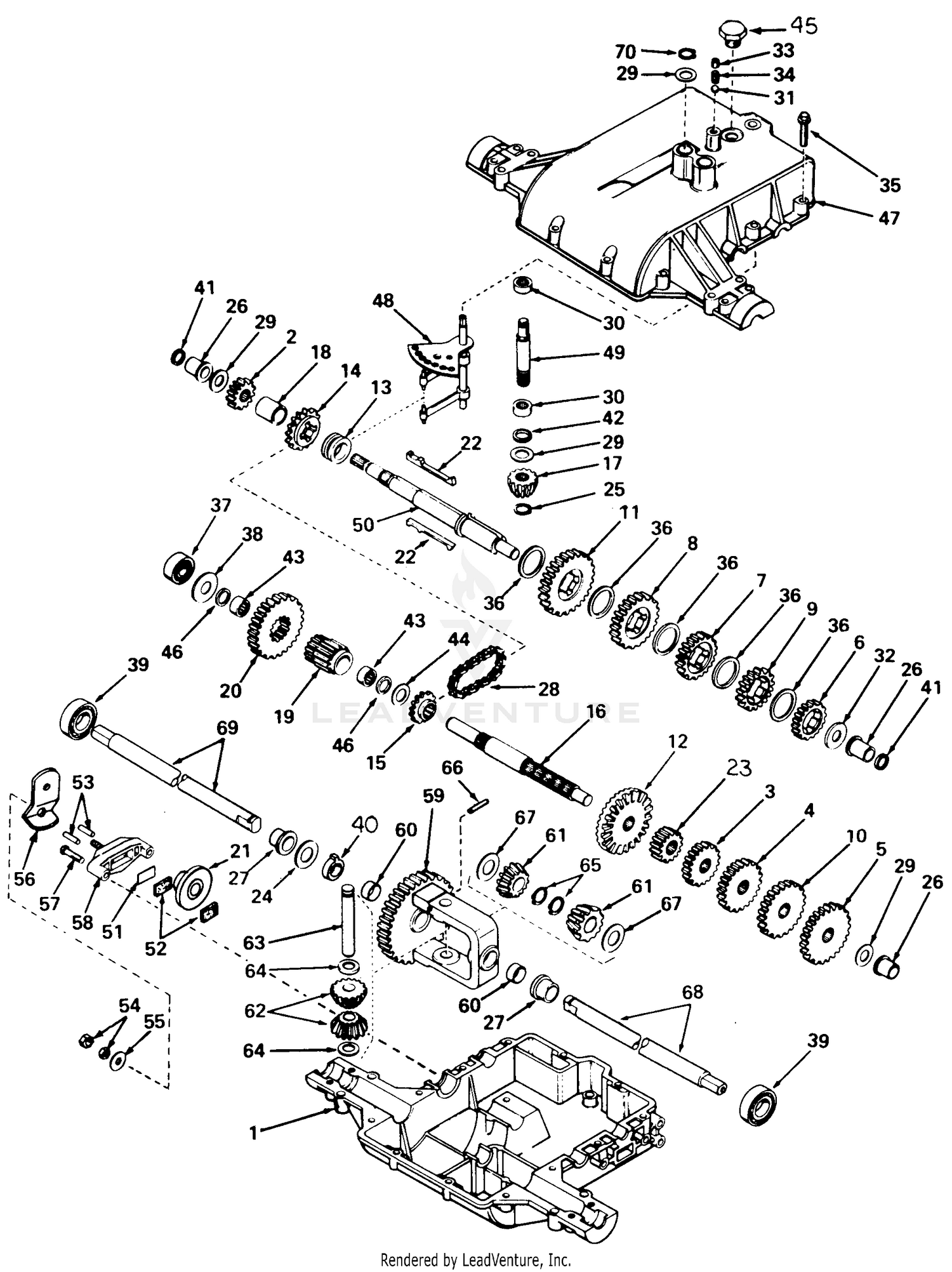

Transaxle-Gear Drive-SN 70001 & Up

Transaxle-Gear Drive-SN 70001 & Up

Parts (110)

RefPart NumberDescription
1 321-4 SCREW-HH Price: $0.99
1 532439822 SEAT.TH150.MS498.GRY.HUSQ.TEX Price: $159.99
1 TC-770071A CASE-TRANS Not Available Price:
2 3296-42 NUT-LOCK, NI Price: $0.28
2 532180166 BRKT.PIVOT.FENDER Price: $11.99
2 TC-778136 SPUR GEAR (FIRST) Not Available Price:
3 3256-22 WASHER-FLAT Price: $0.39
3 532140675 STRAP Price: $5.99
3 TC-778126A SPUR GEAR (20 TEET Not Available Price:
4 3256-23 WASHER-PLAIN Price: $0.28
4 TC-778127A SPUR GEAR (25 TEET Not Available Price:
5 32105-13 SCREW-HWH Price: $1.59
5 TC-778129A SPUR GEAR Not Available Price:
6 596322601 Nuts This part replaces 873800600. Price: $2.99
6 92-8877 SEAT FRAME ASM This part replaces 92-7894. Price: $257.82
6 TC-778121A SPUR GEAR-20T Not Available Price:
7 322-13 SCREW-HH Price: $2.73
7 587613301 SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99
7 TC-778123A SPUR GEAR (25 TEET Not Available Price:
8 3272-4 PIN-COTTER Price: $0.25
8 532171877 BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99
8 TC-778124A SPUR GEAR (30 TEET Not Available Price:
9 66-2630 LATCH-SEAT Price: $18.77
9 TC-778122A SPUR GEAR (22 TEET Not Available Price:
10 32128-33 NUT-HF Price: $0.25
10 596768801 KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99
10 TC-778128A SPUR GEAR (28 TEET Not Available Price:
11 TC-778207A SPUR GEAR 37T Not Available This part replaces TC-778146A. Price:
12 66-8750 DECAL - THROTTLE LIFT Price: $18.86
12 TC-778137A SPUR GEAR-42T Not Available Price:
13 67-1710 DECAL-WARNING Price: $7.83
13 TC-784266 COLLAR-SHIFT Not Available Price:
14 321-6 SCREW-HH Price: $0.25
14 TC-786083 SPROCKET (18 TEET Not Available Price:
15 43-9071 LIMIT SWITCH ASM Price: $182.60
15 TC-786082 SPROCKET (9 TEET Not Available Price:
16 92-7892 SEAT SWITCH BRKT. ASM Price: $46.04
16 TC-776204 SHAFT Not Available Price:
17 3296-12 NUT-LOCK, NI Price: $1.29
17 TC-778113A BEVEL GEAR-INPUT Not Available Price:
18 3256-69 WASHER-FLAT Price: $0.62
18 TC-786074 SPACER Not Available Price:
19 32148-6 NUT-CLINCH Price: $1.24
19 TC-778138 GEAR-OUTPU Not Available Price:
20 37-9590 DISCONTINUED Price: Call Us
20 TC-778139 GEAR-OUTPU Not Available Price:
21 3256-27 WASHER-FLAT Price: $0.47
21 587907801 BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99
21 TC-790003 BRAKE-DISC Not Available Price:
22 32121-6 PIN-ROLL, SLOTTED Price: $0.28
22 TC-792089B KEY Not Available This part replaces TC-792089A. Price:
23 63-7590 RELAY Price: $78.15
23 TC-778145 GEAR Not Available Price:
24 3253-3 WASHER-LOCK Price: $0.31
25 3234-17 SCREW-HHF Price: $0.72
25 TC-788040 E-RINGXT RET .521 Not Available Price:
26 66-2590 DISCONTINUED Price: Call Us
26 TC-780105A FLANGED BUSHING Not Available Price:
27 43-8870 BOOT-SWITCH Price: $47.92
27 TC-780118A BUSHING Not Available Price:
28 218-461 NUT-HH Price: $2.50
29 43-8620 PIN-GUIDE, SWITCH Price: $88.57
29 TC-780072 THRUST WASHER Not Available Price:
30 43-8860 PLUNGER-SWITCH Price: $11.85
30 941-0478 NEEDLE BEARING Not Available This part replaces IH-106640-C91. Price:
31 43-8600 SPRING-COMPRESSION Price: $3.03
31 TC-792077A BALL-5/16 GRADE 20 Not Available This part replaces TC-792077. Price:
32 43-8610 GUIDE Price: $23.35
32 TC-780109 THRUST WASHER Not Available Price:
33 237-30 O-RING Price: $2.50
33 TC-792078 SCREW Not Available Price:
34 237-7 O-RING Price: $8.82
34 TC-792079 SPRING Not Available Price:
35 TC-792073A HEX SCREW HD TAP-1 Not Available This part replaces TC-792073. Price:
36 TC-780108 Washer, Thrust Not Available Price:
37 TC-780121 BEARING Not Available Price:
38 TC-780113 WASHER Not Available Price:
39 HG-44121P BEARING BALL Not Available This part replaces TC-780119. Price:
40 595088102 Handles This part replaces 532197661. Price: $4.99
40 TC-780120 BUSHING Not Available Price:
41 532198200 SPRING.LATCH.SEAT.TEX Price: $3.99
41 TC-788051A SEAL Not Available This part replaces TC-788051. Price:
42 TC-788057 O-RING Not Available Price:
43 874760612 BOLT Price: $3.99
43 TC-780112 BEARING Not Available This part replaces IH-80289-C91. Price:
44 583789501 WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99
44 TC-780114 FLAT WASHER Not Available Price:
45 TC-792074 PLUG Not Available Price:
46 TC-788053 SEAL Not Available Price:
47 TC-772082 COVER, TRANSAXLE Not Available Price:
48 TC-784290 ROD&FORD-S Not Available Price:
49 TC-776140 INPUT SHAFT Not Available Price:
50 TC-776183A SHAFT Not Available Price:
51 TC-790007 PLATE-BRAKE PAD Not Available Price:
52 TC-799021 BRAKE PAD KIT (1 PKG = 2 PADS ) This part replaces TC-790006. Price: $11.03
53 TC-786026 DOWEL PIN Not Available Price:
54 712-0237 Nut, 5/16-NF Cad P/T Lock Type 5 Price: $4.37
55 736-3078 Washer, .344 x 1.000 x .098 Phc Hdn Price: $3.95
56 TC-790028 BRAKE LEVER Not Available Price:
57 TC-792073A HEX SCREW HD TAP-1 Not Available This part replaces TC-792073. Price:
58 TC-790025 HOLDER-BRAKE PAD Not Available This part replaces TC-790005. Price:
60 TC-780064 BUSHING Not Available Price:
61 TC-778067 GEAR, BEVEL Not Available Price:
62 TC-778068 BEVEL GEAR Not Available Price:
63 TC-786034 PIN-DRIVE Not Available Price:
64 TC-780065 WASHER Not Available Price:
65 716-3001 Ring, .689 Hvy Ext Ret Price: $3.96
66 TC-792040 ROLL PIN Not Available Price:
68 TC-774436 AXLE Not Available Price:
69 TC-774435 AXLE Not Available Price:
