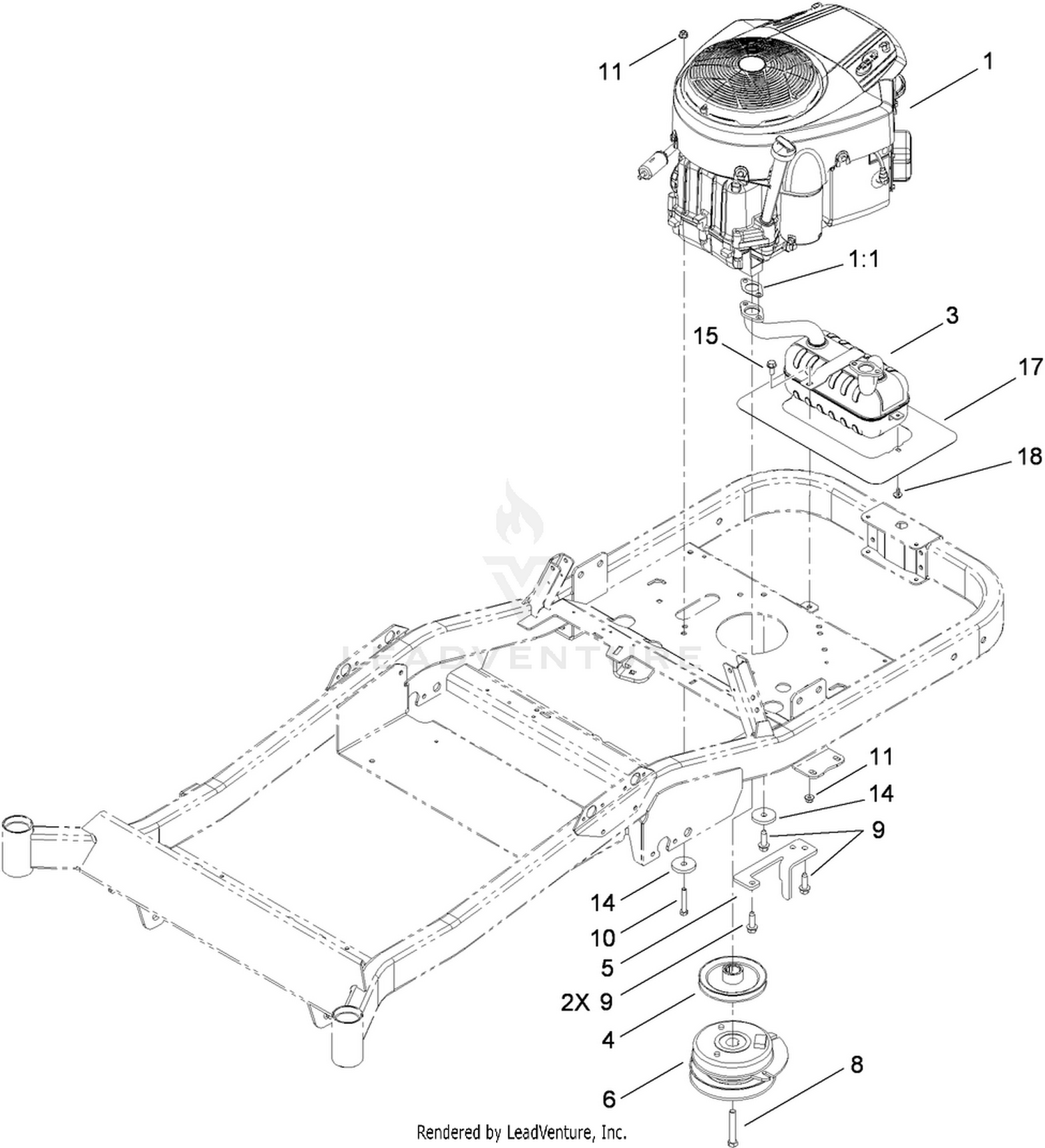

Engine Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 117-7464 | MUFFLER-BRIGGS TWIN Price: $163.40 |
| 4 | 125-5576 | PULLEY-ENGINE This part replaces 115-2568. Price: $42.82 |
| 5 | 117-1269-03 | BRACKET-STOP, PTO Price: $22.47 |
| 6 | 110-6766 | CLUTCH-ELECTRIC, PTO Price: $392.90 |
| 8 | 3212-11 | SCREW-HH Price: $7.59 |
| 9 | 32144-109 | SCREW-THD Price: $1.29 |
| 10 | 322-10 | SCREW-HH Price: $0.70 |
| 11 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 14 | 110-9981 | WASHER-PLAIN Price: $13.99 |
| 15 | 3234-47 | SCREW-HHF Price: $1.79 |
| 17 | 117-5331-03 | SHIELD-HEAT Price: $28.16 |
