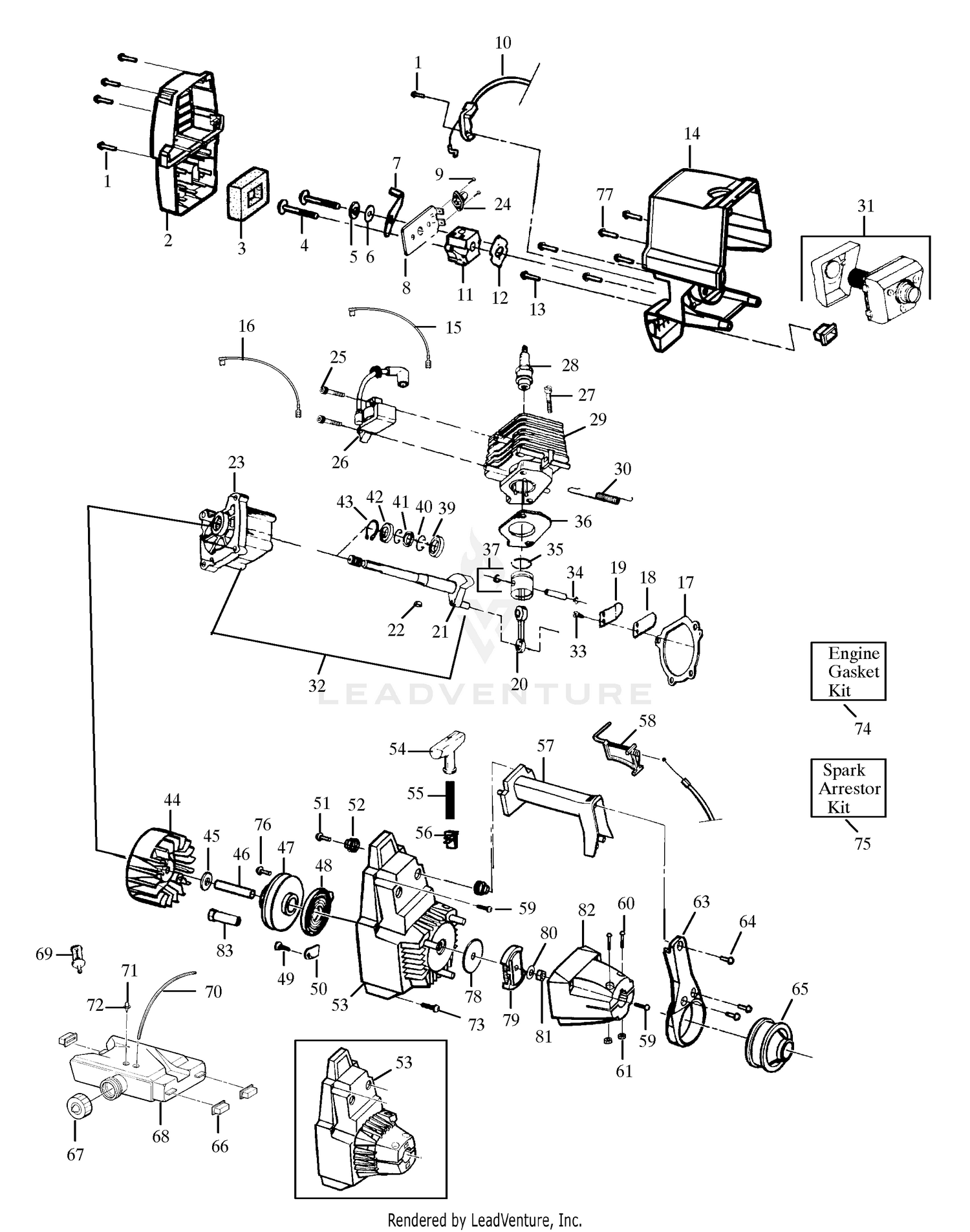

| Ref | Part Number | Description |
|---|
| 1 |
115-8293-0P |
TUBE-SHORT This part replaces 115-8293-03. Price: $224.35 |
| 1 |
530015775 |
Screw Price: $1.99 |
| 2 |
114-5410 |
SHAFT-SHORT, REAR ROLLER Price: $128.74 |
| 2 |
530036380 |
Muffler/Air Box Cover Price: $6.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
530036429 |
Air Filter Foam Price: $1.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
530015849 |
Screw Price: $1.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
530015852 |
Spacer Price: $1.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
530015254 |
Wave Washer Price: $1.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
530038103 |
Choke Shutter Price: $1.99 |
| 8 |
530037931 |
Air Filter Plate Price: $4.99 |
| 9 |
530016085 |
Screw Price: $0.20 |
| 10 |
530037495 |
Throttle Cable Ass'y. Price: $6.99 |
| 11 |
530035349 |
Carburetor Model HP30SBP Price: $3.33 |
| 11 |
530035360 |
Carburetor Model HP28P Price: $3.33 |
| 13 |
530015772 |
Screw Price: $1.99 |
| 14 |
530037501 |
Shroud Price: $14.99 |
| 15 |
530014663 |
Lead Wire Ass'y Price: $5.99 |
| 16 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 18 |
530036233 |
Reed Price: $0.70 |
| 19 |
530027594 |
Reed Stop Price: $1.99 |
| 21 |
530010934 |
Crankshaft Ass'y. Model HP30SBP Price: $24.99 |
| 21 |
530010945 |
Crankshaft Ass'y. Model HP28P Price: $49.19 |
| 22 |
530015126 |
Flywheel Key Price: $1.99 |
| 24 |
530038874 |
Bulb Ass'y. This part replaces 530037972. Price: $5.99 |
| 25 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 26 |
530039134 |
Ignition Module Price: $44.99 |
| 27 |
530015239 |
Screw Price: $1.99 |
| 28 |
530030077 |
Spark Plug Price: $2.27 |
| 29 |
530012235 |
Cylinder Price: $3.33 |
| 30 |
530036409 |
Muffler Attachment Spring Price: $1.99 |
| 31 |
530069310 |
Muffler Kit This part replaces 530069257. Price: $9.99 |
| 33 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 34 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 35 |
530025875 |
Piston Ring Price: $4.99 |
| 39 |
530032103 |
Inner Bearing Price: Call Us |
| 40 |
530015787 |
Retaining Ring Price: $1.99 |
| 41 |
530019158 |
Crankshaft Seal Price: $2.99 |
| 42 |
530032102 |
Outer Bearing Price: $8.99 |
| 43 |
530015789 |
Crankshaft Retaining Ring Price: $2.99 |
| 44 |
530039189 |
Flywheel Ass'y This part replaces 530039136. Price: $22.99 |
| 44 |
530047198 |
Flywheel Ass'y This part replaces 530039111. Price: $23.99 |
| 45 |
530015828 |
Washer Model HP28P Price: $1.99 |
| 45 |
530016030 |
Washer Model HP30SBP Price: $1.99 |
| 46 |
530027511 |
Flywheel Spacer - Model HP30SBP Price: $4.99 |
| 47 |
530071387 |
Kit-Starter Pulley This part replaces 530069291. Price: $6.99 |
| 48 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 49 |
530015496 |
Screw Price: $1.99 |
| 50 |
114-5430 |
ROLLER REBUILD KIT Price: $99.53 |
| 50 |
530027523 |
Retainer Price: $2.99 |
| 51 |
530015843 |
Screw Price: $1.99 |
| 52 |
530037105 |
Handle Isolator Price: $0.99 |
| 53 |
530014793 |
Fan Housing Model HP28P Price: $17.99 |
| 53 |
530014794 |
Fan Housing Model HP30SBP Price: $14.99 |
| 54 |
530027569 |
Starter Handle Price: $1.99 |
| 55 |
530069232 |
Rope Kit Price: $3.99 |
| 56 |
530038113 |
Switch Model HP30SBP Price: $3.99 |
| 56 |
530071356 |
Switch-Momentary This part replaces 530038114. Price: $4.99 |
| 57 |
530036385 |
Handle Price: $2.96 |
| 58 |
530036428 |
Trigger Price: $6.99 |
| 59 |
530015814 |
Screw Price: $1.99 |
| 60 |
530015767 |
Screw Price: $1.99 |
| 61 |
530015768 |
Locknut Price: $1.99 |
| 63 |
530036174 |
Handle Cover Price: $32.99 |
| 64 |
530015934 |
Screw Price: $1.99 |
| 65 |
530037115 |
Isolator AV Price: $3.33 |
| 65 |
530047128 |
Fuel Tank Ass'y. Units with primer bulb Price: Call Us |
| 66 |
530029760 |
Fuel Tank Isolator Price: $0.99 |
| 67 |
530014777 |
Fuel Cap Ass'y. Price: $0.60 |
| 68 |
530014797 |
Fuel Tank Ass'y. Non Primer units Price: $5.28 |
| 69 |
530095646 |
Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 70 |
530069238 |
Fuel Line Kit Return Line Price: $3.33 |
| 70 |
530069247 |
Fuel Line Kit Fuel Line Price: $3.99 |
| 71 |
530026119 |
Check Valve Price: $1.99 |
| 72 |
530029696 |
Retainer Price: Call Us |
| 73 |
530015935 |
Screw Price: $0.99 |
| 74 |
530069302 |
Gasket Kit This part replaces 530069325. Price: $3.99 |
| 75 |
952701612 |
Spark Arrestor Kit Price: Call Us |
| 76 |
530016080 |
Screw Price: $1.99 |
| 77 |
530015771 |
Screw Price: $1.99 |
| 78 |
530094189 |
Clutch Washer - Model HP30SBP Price: $2.99 |
| 79 |
530069254 |
Clutch Ass'y. Kit - Model HP30SBP Price: $8.99 |
| 80 |
530015796 |
Washer - Model HP30SBP Price: $1.99 |
| 81 |
530001733 |
Nut - Model HP30SBP Price: $2.99 |
| 82 |
530014795 |
Clutch Housing - Model HP30SBP Price: $29.99 |
