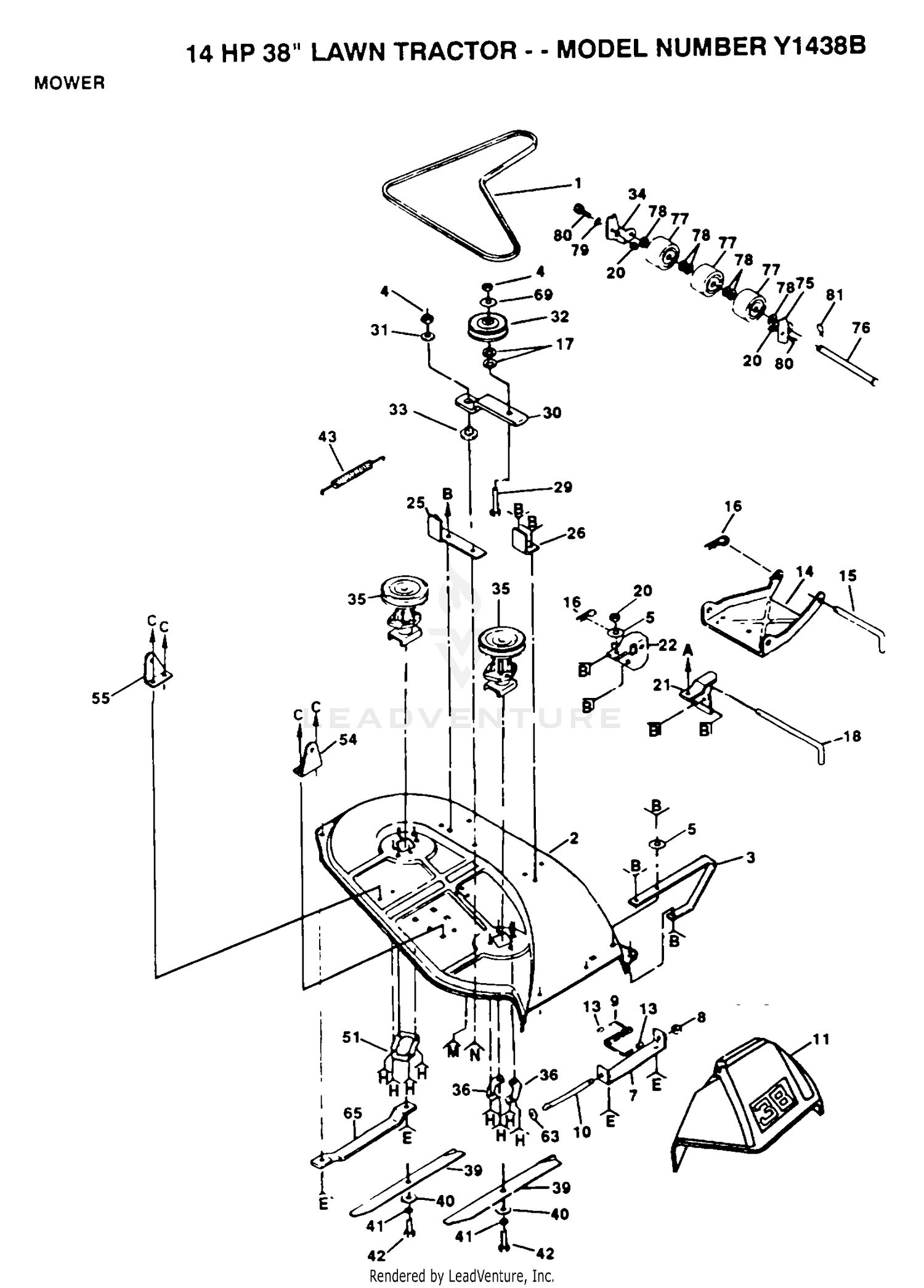

| Ref | Part Number | Description |
|---|
| 1 |
106085X |
BELT-V.79.1.MWR Price: Call Us |
| 2 |
121458X |
SUB= 144726 Price: Call Us |
| 3 |
8417J |
SUB= 128772 Price: Call Us |
| 4 |
73680600 |
SUB= 73690600 Price: Call Us |
| 5 |
19111216 |
WASHER M Price: Call Us |
| 7 |
105896X |
SUB= 137607 Price: Call Us |
| 8 |
110452X |
NUT PUSH M Price: Call Us |
| 9 |
106734X |
SUB= 123713X Price: Call Us |
| 010 |
98-9550 |
PISTON (STD) Price: $274.67 |
| 10 |
106735X |
ROD-HINGE T Price: Call Us |
| 11 |
106736X |
DEFLECTOR-SHLD T Price: Call Us |
| 13 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 14 |
105662X |
LINK.PARALLEL Price: Call Us |
| 16 |
4921H |
SPRING.RETAINER Price: Call Us |
| 17 |
19131210 |
WASHER Price: Call Us |
| 18 |
109835X |
HINGE PIN T Price: Call Us |
| 020 |
98-9551 |
PISTON RING ASM (STD) Price: $220.34 |
| 020 |
98-9619 |
PISTON RING ASM (0.5MM) Price: $96.35 |
| 20 |
73680500 |
SUB= 73690500 Price: Call Us |
| 21 |
109598X |
BRACKET RH LT Price: Call Us |
| 22 |
109597X |
BRACKET LH T Price: Call Us |
| 25 |
109503X |
SUPPORT ARM T Price: Call Us |
| 26 |
109504X |
STOP T Price: Call Us |
| 29 |
74760636 |
BOLT Price: Call Us |
| 030 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 30 |
127162X |
ARM IDLER T Price: Call Us |
| 31 |
106902X |
SPACER RETAINER Price: Call Us |
| 32 |
123688X |
SUB= 121316X Price: Call Us |
| 34 |
109646X |
BRACKET LH T Price: Call Us |
| 36 |
100668L |
SUPPORT PLATE LT Price: Call Us |
| 040 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 40 |
19132012 |
WASHER Price: Call Us |
| 41 |
10030600 |
SUB= 10040600 Price: Call Us |
| 42 |
74610624 |
BOLT.3/8-24X1-1/2 Price: Call Us |
| 050 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9552. Price: $547.99 |
| 51 |
110445X |
SUPPORT T Price: Call Us |
| 060 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 63 |
19111016 |
WASHER Price: Call Us |
| 65 |
121676X |
SUB= 121687X Price: Call Us |
| 65 |
7631J |
RUNNER-LH M Price: Call Us |
| 69 |
19131316 |
WASHER Price: Call Us |
| 070 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 75 |
109647X |
BRACKET RH T Price: Call Us |
| 76 |
109776X |
PIVOT PIN T Price: Call Us |
| 77 |
109729X |
ROLLER T Price: Call Us |
| 78 |
19151610 |
WASHER T Price: Call Us |
| 79 |
19161616 |
WASHER Price: Call Us |
| 080 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 98-9520. Price: $49.06 |
| 080 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 080 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 80 |
74760512 |
BOLT Price: Call Us |
| 81 |
76020412 |
COTTER PIN Price: Call Us |
| 090 |
120-2561 |
CRANKSHAFT ASM This part replaces 105-3718. Price: $3,034.45 |
| 110 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 120 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 130 |
98-9666 |
KEY Price: $3.58 |
| 140 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 150 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 160 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 170 |
98-9373 |
O-RING Price: $3.11 |
| 180 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9554. Price: $66.99 |
| 180 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 180 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 190 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 98-9530. Price: $60.46 |
| 190 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 190 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 200 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) This part replaces 105-3719. Price: $60.46 |
| 200 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) This part replaces 105-3720. Price: $66.64 |
| 200 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9556. Price: $86.06 |
| 210 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 210 |
98-9413 |
BEARING-THRUST (STD) This part replaces 99-6864. Price: $16.90 |
| 210 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 220 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 99-6868. Price: $18.42 |
| 220 |
127-0438 |
METAL-SIDE (+0.40MM) This part replaces 99-6869. Price: $12.65 |
| 108682X |
NLA |
Price: Call Us 108682X |
| 121349X |
DECAL |
WARNING Price: Call Us 121349X |
| 122221X |
"DECK,COMPLETE" |
Price: Call Us 122221X |
