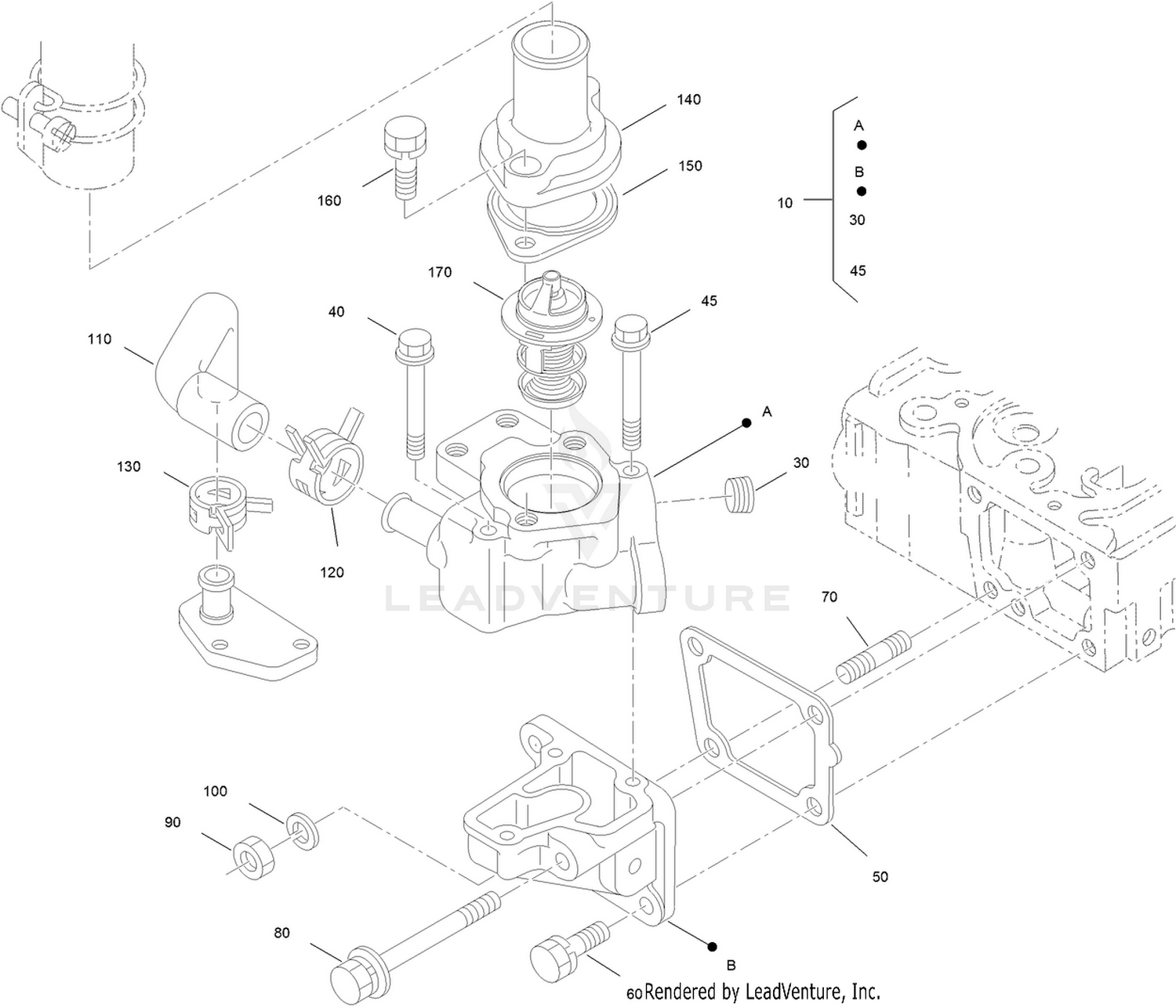

Water Flange Thermostat ASM
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 130-1347 | WATER FLANGE ASM Price: $175.51 |
| 30 | 105-2874 | PLUG Price: $6.68 |
| 40 | 105-2875 | BOLT-FLANGE Price: $3.41 |
| 45 | 107-0117 | BOLT-FLANGE Price: $2.42 |
| 50 | 98-7767 | GASKET-FLANGE, WATER Price: $4.58 |
| 60 | 98-9359 | BOLT Price: $0.76 |
| 70 | 100-1558 | STUD Price: $2.26 |
| 80 | 107-0115 | BOLT Price: $3.06 |
| 90 | 98-7534 | NUT Price: $0.48 |
| 100 | 105-2893 | WASHER-SPRING Price: $0.48 |
| 110 | 115-8620 | PIPE-RETURN, WATER Price: $21.31 |
| 120 | 115-8621 | CLAMP-HOSE Price: $3.78 |
| 130 | 105-2879 | CLAMP-HOSE Price: $2.19 |
| 140 | 98-7775 | COVER-THERMOSTAT Price: $15.96 |
| 150 | 105-3748 | GASKET-THERMOSTAT Price: $4.31 |
| 160 | 98-7777 | BOLT Price: $1.56 |
