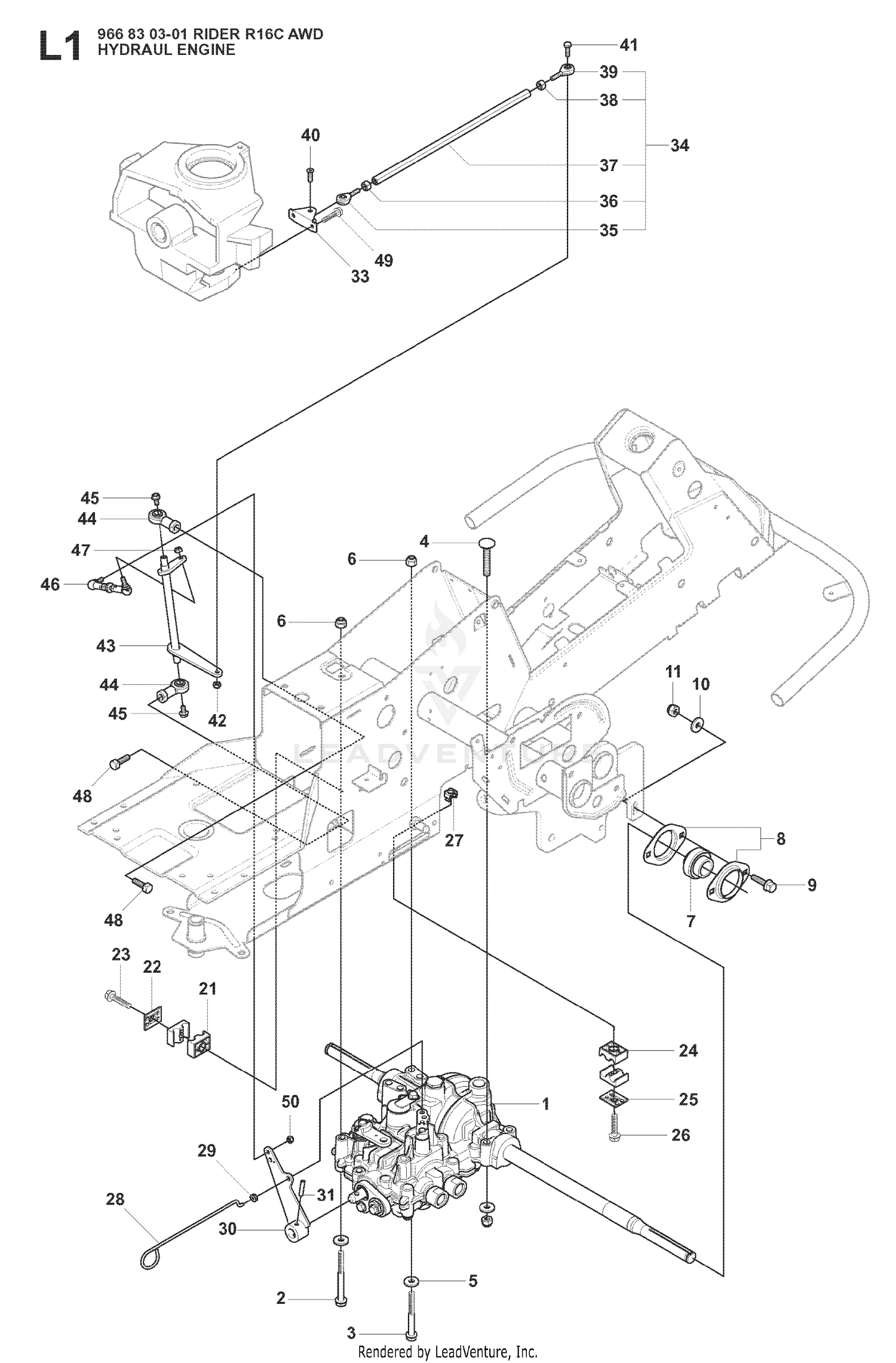

ENGINE
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 575870301 | TRANSMISSION This part replaces 544116001. Price: $899.99 |
| 2 | 725246751 | Hex Bolt Price: $4.99 |
| 3 | 725246451 | SCREW Price: $5.99 |
| 4 | 535423803 | SCREW Price: $3.99 |
| 5 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 6 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 7 | 544008902 | BEARING This part replaces 544008901. Price: $64.99 |
| 8 | 544009001 | BEARING HOUSING Price: $17.99 |
| 9 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 10 | 112-7018 | VALVE-INLET Price: $41.87 |
| 10 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 11 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 20 | 112-7019 | VALVE-EXHAUST Price: $56.65 |
| 21 | 544373303 | PIPE CLAMP Price: $4.99 |
| 22 | 535438501 | COVER Price: $4.99 |
| 23 | 725237861 | BOLT Price: $2.99 |
| 24 | 544373302 | PIPE CLAMP Price: $3.99 |
| 25 | 544373802 | COVER PLATE Price: $4.99 |
| 26 | 506570107 | SCREW EHHFM Price: $5.99 |
| 27 | 544811701 | CAGE NUT Price: $3.99 |
| 28 | 535499701 | ARM Price: $8.99 |
| 29 | 503735801 | FUEL TANK BUSHING Price: $5.99 |
| 30 | 544435201 | LEVER Price: $17.99 |
| 30 | 98-9626 | SPRING-VALVE Price: $10.57 |
| 31 | 721434701 | PIN Price: $2.99 |
| 33 | 535492802 | BRACKET Price: $49.99 |
| 34 | 593959403 | NEEDS DESCRIPTION This part replaces 544456703. Price: $74.99 |
| 35 | 535486602 | LINK Price: $64.99 |
| 36 | 503221018 | NUT Price: $2.99 |
| 37 | 535486503 | ROD Price: $37.99 |
| 38 | 731231601 | NUT Price: $2.99 |
| 39 | 535486601 | LINK Price: $54.99 |
| 40 | 107-9092 | RETAINER-SPRING Price: $2.58 |
| 40 | 544841701 | SCREW Price: $2.99 |
| 41 | 725237071 | SCREW Price: $3.99 |
| 42 | 732251601 | NUT FLANGE - M6 Price: $2.99 |
| 43 | 535497401 | LINK Price: $99.99 |
| 44 | 506951701 | LINK Price: $39.99 |
| 45 | 535475212 | SCREW EHHFM Price: $2.99 |
| 46 | 544441901 | ADJUSTING ROD Price: $17.99 |
| 48 | 725249371 | Screw M10x25 Price: $1.82 |
| 49 | 725236651 | SCREW Price: $2.99 |
| 50 | 117-7572 | COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 50 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 60 | 99-8385 | SEAL-STEM, VALVE Price: $7.29 |
| 70 | 98-9497 | CAP-VALVE Price: $8.36 |
| 80 | 105-3757 | SHAFT-ARM, ROCKER Price: $40.00 |
| 90 | 100-1762 | BOLT This part replaces 100-9265. Price: $1.68 |
| 100 | 98-9505 | BRACKET-ARM, ROCKER Price: $22.17 |
| 110 | 98-9506 | STUD Price: $5.98 |
| 120 | 98-9393 | NUT Price: $2.72 |
| 130 | 98-9385 | WASHER-FLAT Price: $1.24 |
| 140 | 105-3758 | PIN-SPRING Price: $0.57 |
| 150 | 98-9507 | WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 160 | 110-3832 | WASHER-PLAIN Price: $0.71 |
| 170 | 98-9504 | SPRING-ARM, ROCKER Price: $0.66 |
| 190 | 112-7020 | ROCKER ARM ASM Price: $75.86 |
| 200 | 98-9502 | SCREW-ADJUSTING Price: $2.78 |
