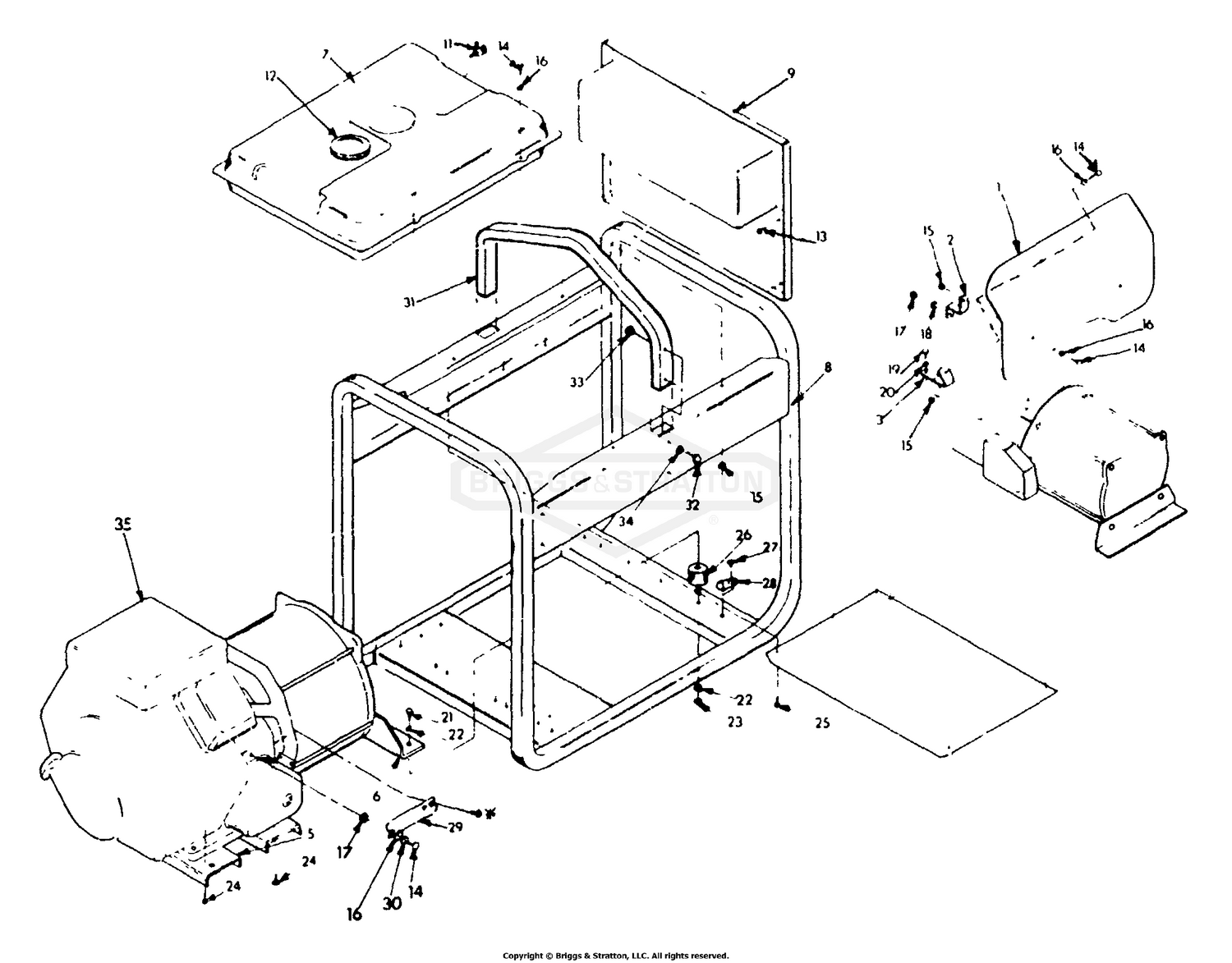

| Ref | Part Number | Description |
|---|
| 1 |
77318 |
HEAT DEFLECTING SHIELD Price: Call Us |
| 2 |
77319 |
HEAT SHIELD BRACKET Price: Call Us |
| 3 |
77306 |
HEAT SHIELD BRACKET Price: Call Us |
| 4 |
77316 |
HEAT SHIELD (GAS TANK) Price: Call Us |
| 5 |
77304 |
ENGINE SUPPORT Price: Call Us |
| 6 |
77303 |
ALTERNATOR SUPPORT Price: Call Us |
| 7 |
7075465YP |
LEVER BRAKE This part replaces 75465. Price: $13.89 |
| 8 |
77300 |
V-TWIN CRADLE Price: $3.28 |
| 9 |
77594C |
CONTROL PANEL COVER ASSEMBLY Price: Call Us |
| 11 |
75938 |
FUEL SHUT-OFF VALVE Price: $12.67 |
| 12 |
76272 |
FUEL CAP GAUGE Price: Call Us |
| 13 |
75494 |
SELF-DRILLING NO. 10-24 x 5/8" Price: $30.20 |
| 14 |
42568GS |
SCREW-M8 x 16 This part replaces 42568. Price: $3.06 |
| 15 |
52857GS |
NUT-M6 FLANGE This part replaces 52857. Price: $3.06 |
| 17 |
24114 |
HEX NUT -- 5/16"-24 Price: Call Us |
| 18 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 19 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 49815. Price: $2.96 |
| 20 |
84010414 |
VALVE, FUEL SHUT OFF This part replaces 22152. Price: $30.31 |
| 21 |
84010756 |
WHEEL ASSEMBLY This part replaces 23152. Price: $405.07 |
| 22 |
703454 |
LOCKWASHER, SPLIT 3/8 This part replaces 22237. Price: $2.95 |
| 23 |
5022241 |
DECAL, ProCut Z Text This part replaces 22241. Price: Call Us |
| 24 |
2828635SM |
SCREW-HEX WSHR HD TAP This part replaces 75246. Price: $4.26 |
| 25 |
2828635SM |
SCREW-HEX WSHR HD TAP This part replaces 75246. Price: $4.26 |
| 26 |
35097GS |
MNT, VBRTN, 30 DURO This part replaces 35097. Price: $15.30 |
| 27 |
56892GS |
CRIMPTITE, 10-24 X 3/8 This part replaces 56892. Price: $2.79 |
| 28 |
25433 |
GROUNDING LUG Price: Call Us |
| 29 |
78807 |
WIRE SHIELD Price: Call Us |
| 30 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 31 |
77301 |
LIFTING BAR Price: Call Us |
| 32 |
39287GS |
SCREW This part replaces 39287. Price: $3.20 |
| 33 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
