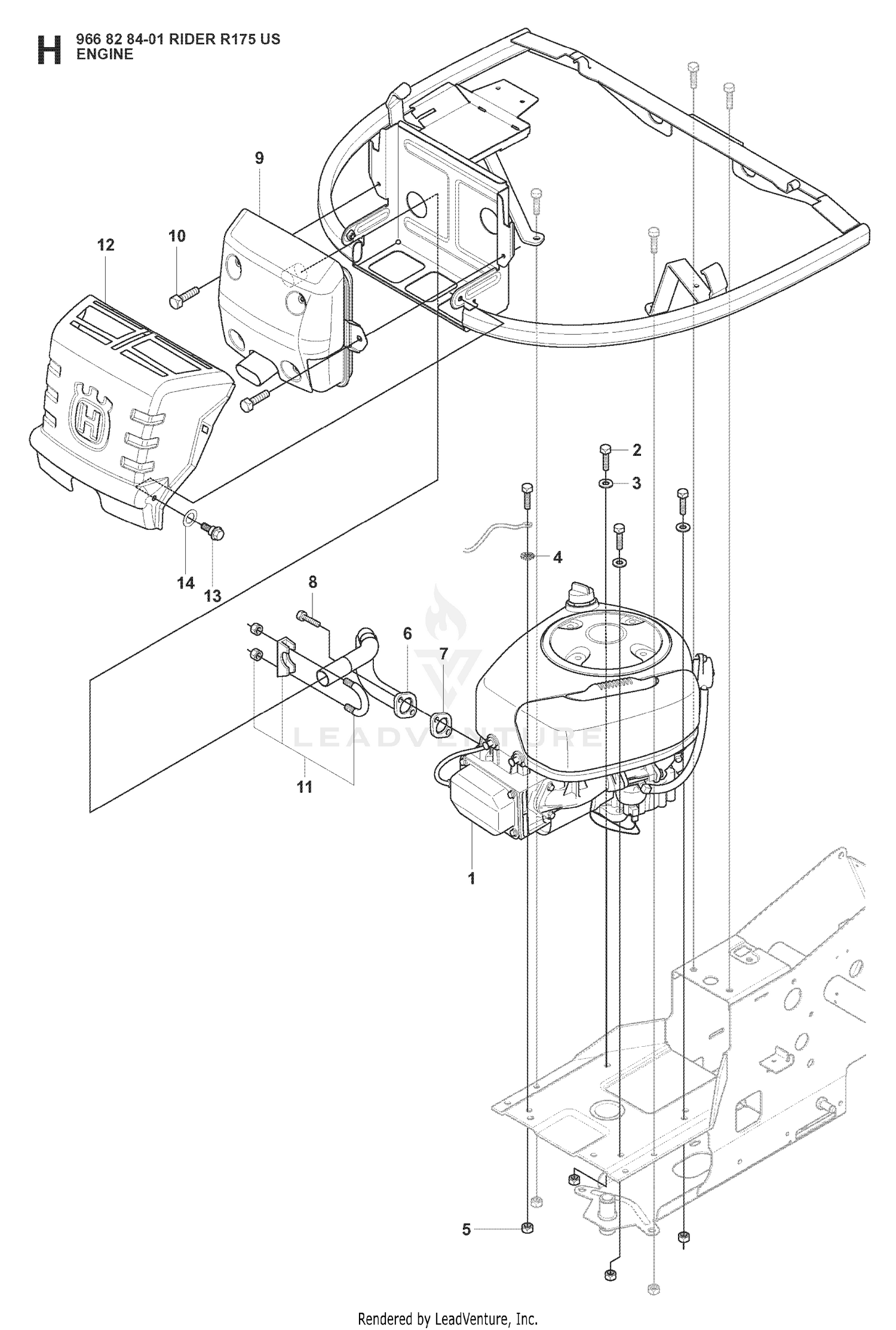

ENGINE
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 139-1035 | SINGLE DRIVING SPINDLE ASM This part replaces 119-4547. Price: $986.94 |
| 1 | 544833101 | ENGINE Price: $1,699.99 |
| 2 | 323-6 | SCREW-HH Price: $0.66 |
| 2 | 725245751 | SCREW Price: $4.99 |
| 3 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 3 | 92-5608-03 | BLADE Price: $44.11 |
| 4 | 72-9361 | CUP-SCALP, ANTI Price: $39.78 |
| 4 | 735216400 | Washer Price: $1.29 |
| 5 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 5 | 92-5816 | BOLT-BLADE Price: $4.93 |
| 6 | 535500601 | EXHAUST PIPE ASSY Price: $32.99 |
| 7 | 506914501 | FLANGE Price: $4.99 |
| 8 | 506556301 | BOLT Price: $3.99 |
| 10 | 725236461 | SCREW Price: $2.99 |
| 11 | 501152201 | CLAMP ASSY EXHAUST This part replaces 506668401. Price: $2.99 |
| 12 | 544248301 | HEAT PROTECTOR Price: $119.99 |
| 13 | 506597401 | BOLT Price: $5.99 |
| 14 | 506839401 | SPRINGWASHER Price: $3.99 |
