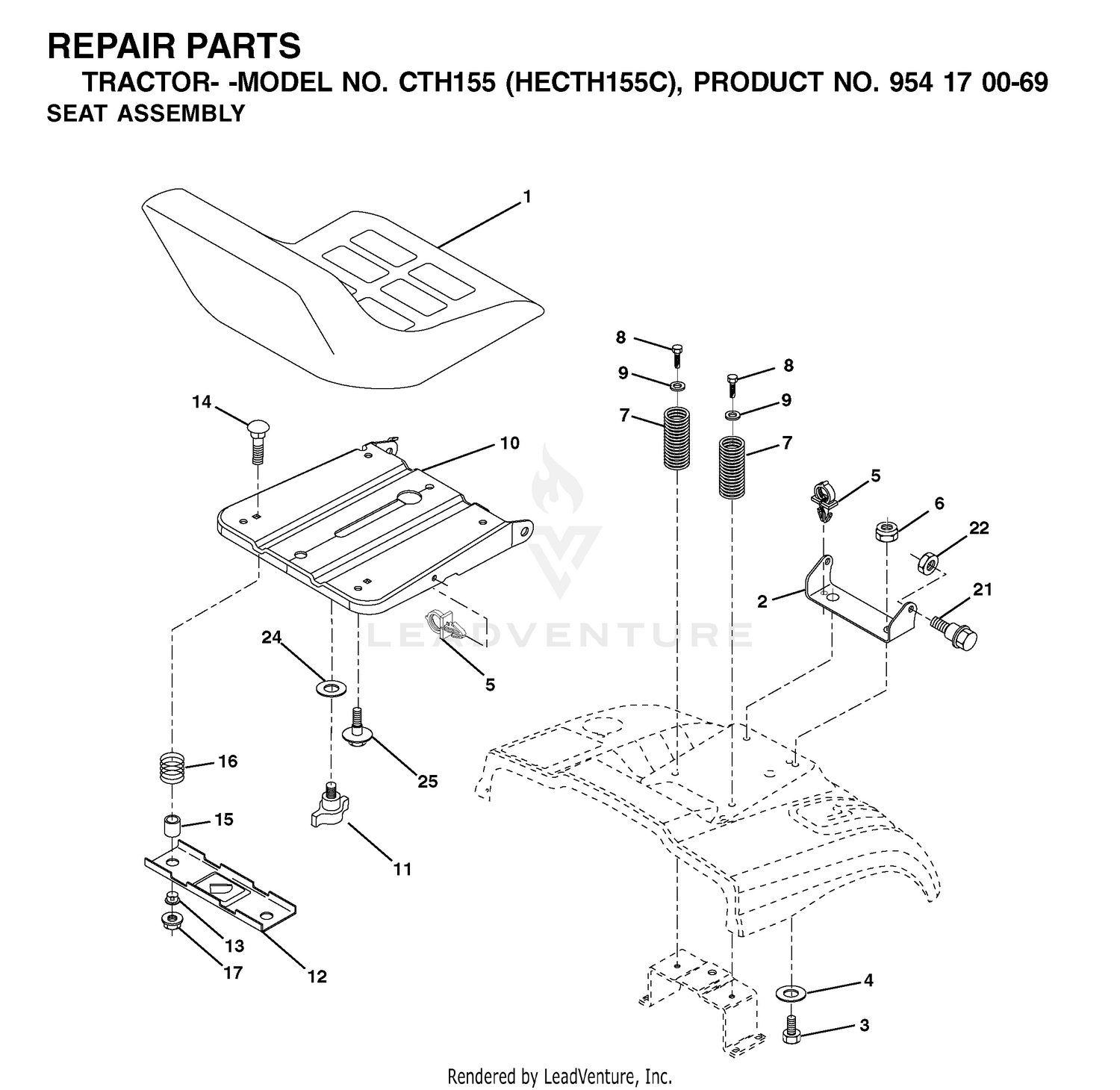

| Ref | Part Number | Description |
|---|
| 1 |
32153-5 |
NUT-HEX Price: $1.59 |
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532140840. Price: $219.99 |
| 2 |
325-5 |
SCREW-HH Price: $1.20 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
323-7 |
SCREW-HH Price: $0.65 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
5-4693 |
CHAIN Price: $30.29 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
323-6 |
SCREW-HH Price: $0.66 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
53-5250-01 |
HANDLE - LIFT, LONG This part replaces 53-5250. Price: $58.10 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
53-5260-01 |
HANDLE - LIFT, SHORT This part replaces 53-5260. Price: $107.16 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
3-7877 |
GRIP-HANDLE Price: $10.69 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 10 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532174894. Price: $17.99 |
| 11 |
282-13 |
DISCONTINUED Price: Call Us |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
53-5300-01 |
DRAWBAR PIVOT ASM This part replaces 53-5300. Price: $333.72 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
5-1111 |
CASTOR WHEEL BUSHING Price: $10.11 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 16 |
54-4130-01 |
DRAWBAR WA This part replaces 54-4130. Price: $856.13 |
| 17 |
325-10 |
SCREW-HH Price: $1.82 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
5-1091 |
SPACER Price: $4.98 |
| 19 |
54-4110-01 |
PIVOT PIN ASM This part replaces 54-4110. Price: $71.34 |
| 20 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 21 |
53-5000-01 |
FRAME-WING, LH This part replaces 53-5000. Price: $1,144.85 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
5-1105-01 |
HINGE-BALL, LH This part replaces 5-1105. Price: $57.25 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
