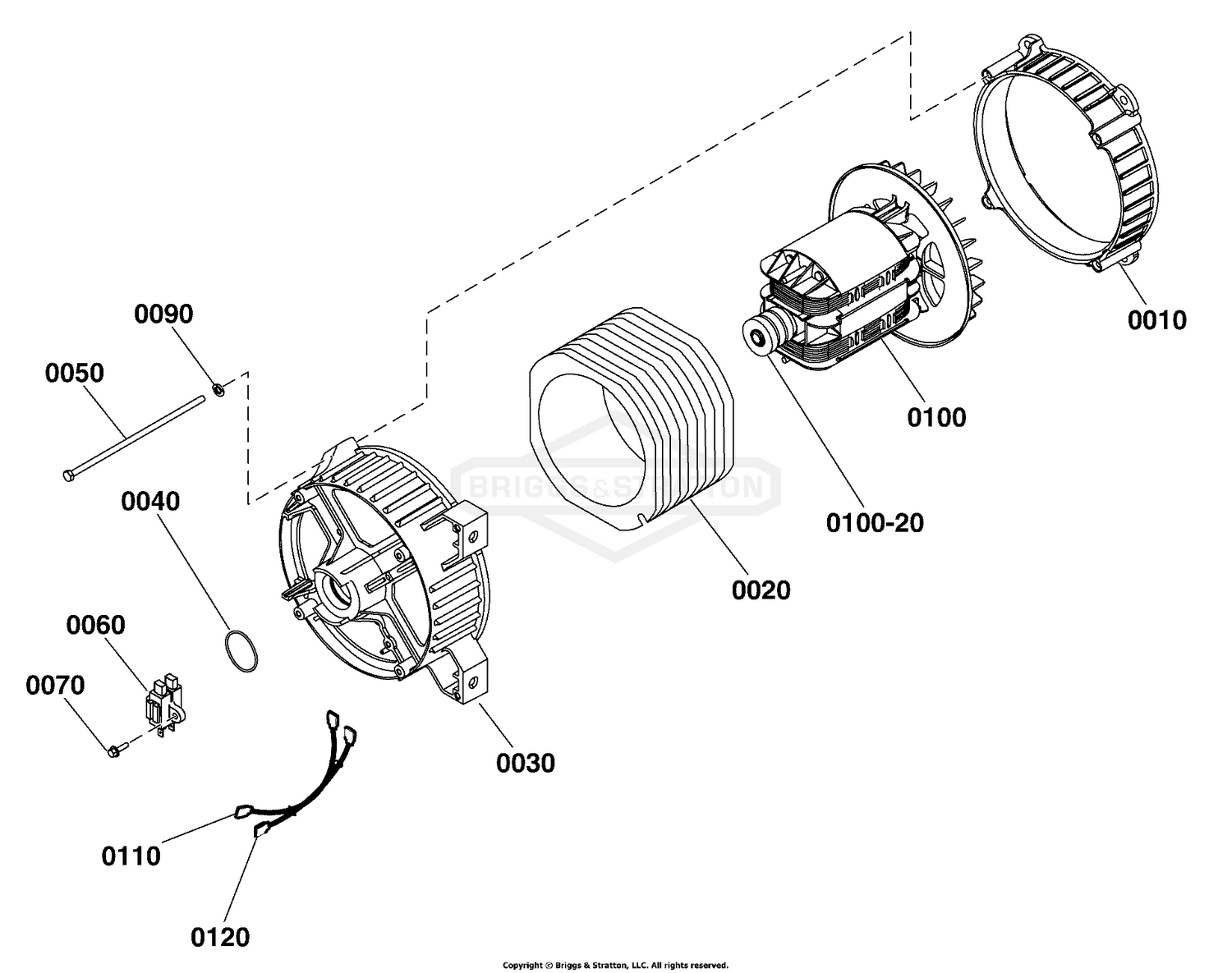

Alternator Group
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 0010 | 209599GS | ADAPTER, Alternator Price: $33.00 |
| 0020 | 704045 | STATOR Price: $958.49 |
| 0030 | 193336GS | RBC, (with O-Ring p/n 189197GS) This part replaces 186060GS. Price: $36.50 |
| 0040 | 189197GS | O-RING, 1.375 N I.D. X .093 IN Price: $3.28 |
| 0050 | 66449LGS | BOLT Price: $28.08 |
| 0060 | 66386GS | ASSY, Holder, Brush Price: $21.52 |
| 0070 | 49815GS | HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 0090 | 22097GS | WASHER Price: $3.05 |
| 0100 | 316828GS | ROTOR Price: $652.69 |
