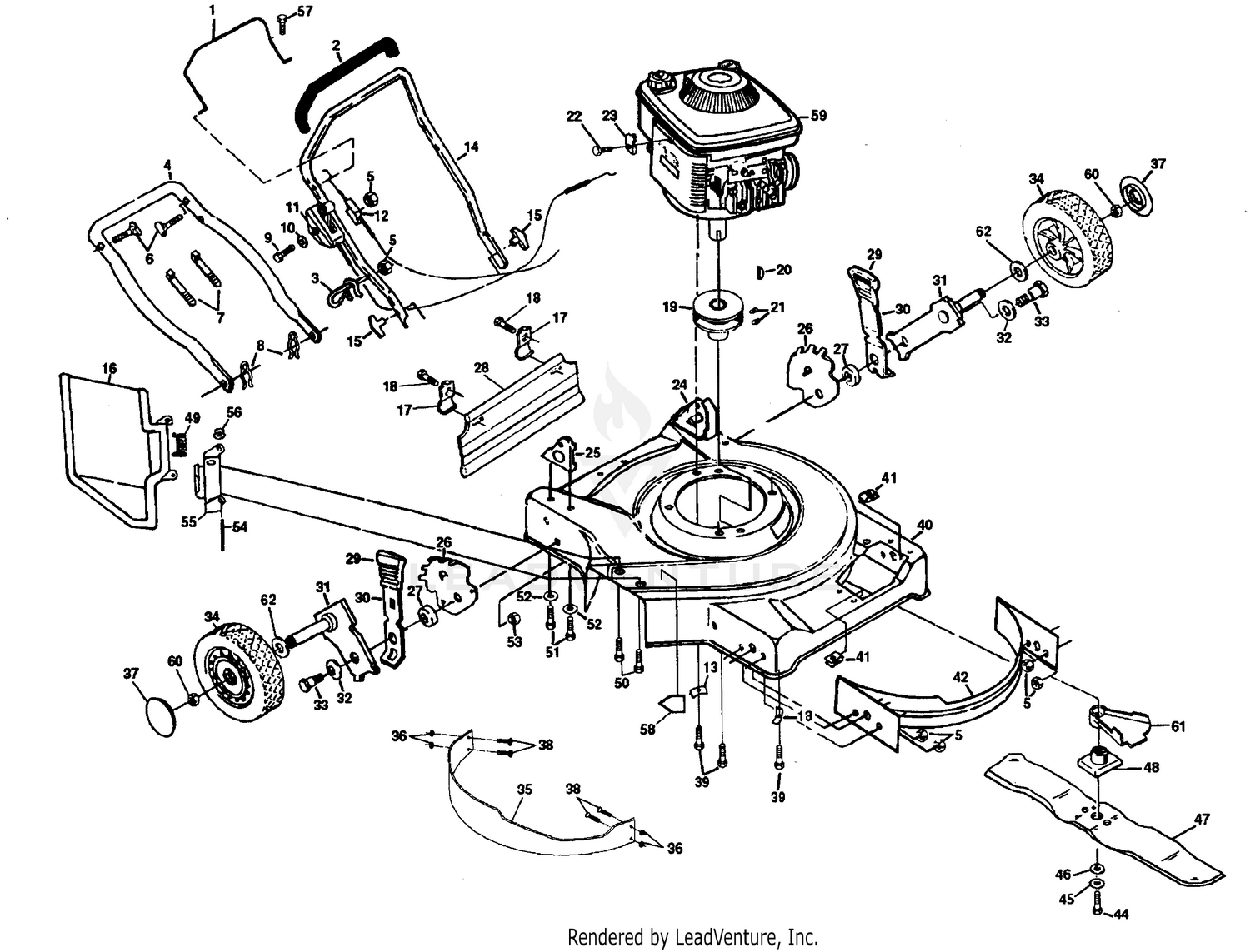

| Ref | Part Number | Description |
|---|
| 1 |
114-5401 |
ROLLER-WIEHLE, PLASTIC Price: $248.52 |
| 1 |
532851510 |
Control Bar Price: $3.33 |
| 2 |
114-5403 |
SHAFT-ROLLER, FRONT Price: $82.00 |
| 2 |
532129714 |
Handle Grip (AYP part number) Price: $3.33 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
532194788 |
GUIDE.ROPE.STD.BLK.ZIN This part replaces 532132001. Price: $3.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
532157081 |
HANDLE.LOWER.BLACK This part replaces 532125160. Price: $54.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 532063601. Price: $1.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
532183724 |
KNOB.HANDLE.KIT.SERVICE This part replaces 532131959. Price: $6.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $3.99 |
| 8 |
532051793 |
Hairpin Cotter (AYP part number) Price: $3.99 |
| 9 |
874250434 |
Machine Screw 1/4-20 x 2-1/8 (AYP part number) This part replaces 532085692. Price: $2.99 |
| 10 |
532085723 |
Washer 9/32 x 5/8 x 1/16 (AYP part number) Price: $2.99 |
| 11 |
532700417 |
Throttle Control This part replaces 532132536. Price: $12.99 |
| 12 |
532130861 |
Engine Zone Control Cable Price: $8.99 |
| 13 |
532125078 |
Engine Washer (AYP part number) Price: $3.99 |
| 14 |
532125319 |
Upper Handle (AYP part number) Price: $34.99 |
| 15 |
532183724 |
KNOB.HANDLE.KIT.SERVICE This part replaces 532063688. Price: $6.99 |
| 16 |
532851750 |
Discharge Guard Price: $3.33 |
| 17 |
532125207 |
Bracket Skirt (AYP part number) Price: $4.99 |
| 18 |
817021008 |
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) This part replaces 532081276. Price: $1.99 |
| 19 |
532084596 |
Engine Pulley (AYP part number) Price: $22.99 |
| 20 |
532087677 |
Hi Pro Key #HP-505 (AYP part number) Price: $3.99 |
| 21 |
532059708 |
Set Screw 1/4-20 x 5/16 (AYP part number) Price: $3.99 |
| 22 |
532083816 |
Thread Rolling Screw #10-32 x 5/8 (AYP part number) Price: $3.99 |
| 24 |
532125163 |
Handle Bracket Assembly (Left) (AYP part number) Price: $3.33 |
| 25 |
532125164 |
Handle Bracket Assembly (Right) (AYP part number) Price: $3.33 |
| 26 |
532139901 |
Wheel Adjusting Bracket (AYP part number) This part replaces 532850904. Price: $5.99 |
| 27 |
532084920 |
Spacer (AYP part number) Price: $1.99 |
| 28 |
532140540 |
Rear Deflector (AYP part number) This part replaces 532128797. Price: $14.99 |
| 29 |
532701037 |
SELECTOR KNOB This part replaces 532132800. Price: $2.99 |
| 30 |
532125168 |
Selector Spring (AYP part number) Price: $2.99 |
| 31 |
532125169 |
Axle Arm Assembly (AYP part number) Price: $6.99 |
| 32 |
532062335 |
Belleville Washer 1/2 (AYP part number) Price: $6.99 |
| 33 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532084921. Price: $3.99 |
| 34 |
532801847 |
Wheel & Tire Assembly (Rear) 8.00 x 1.75 Price: $38.12 |
| 35 |
532125344 |
Baffle Mulcher (AYP part number) Price: $27.99 |
| 36 |
532069180 |
Locknut (AYP part number) Price: $2.99 |
| 37 |
532077400 |
Hubcap (AYP part number) Price: $3.99 |
| 38 |
874961008 |
Screw (AYP part number) Price: Call Us |
| 39 |
532150406 |
BOLT 3/8-16X1-1/8 This part replaces 532850998. Price: $3.99 |
| 40 |
532134627 |
Lawn Mower Housing Kit (Inc. 58) Price: $3.33 |
| 41 |
532075449 |
U-type Speed Nut (AYP part number) Price: $3.99 |
| 42 |
532132352 |
Front Baffle This part replaces 532125337. Price: $6.99 |
| 43 |
532125033 |
Rear Baffle (Not Shown) (AYP part number) Price: $5.02 |
| 44 |
532851084 |
Hex Head Machine Screw 3/8-24 x 1-3/8 Price: $2.99 |
| 45 |
539990118 |
SLW 3/8 STD This part replaces 532850263. Price: $1.99 |
| 46 |
532851074 |
Hardened Washer (AYP part number) Price: $2.99 |
| 48 |
581547901 |
ADAPTOR.BLADE.7/8 This part replaces 532851514. Price: $11.99 |
| 49 |
532411832 |
SPRING.SIDE.DISCHARGE This part replaces 532851855. Price: $2.99 |
| 50 |
817600406 |
SCREW 1/4X20 This part replaces 532851856. Price: $2.99 |
| 51 |
532055187 |
Thread Cutting Screw 5/16-18 x 3/4 (AYP part number) Price: $3.99 |
| 52 |
532059289 |
Washer 5/16 (AYP part number) Price: $2.99 |
| 53 |
873680600 |
LOCKNUT This part replaces 532751592. Price: $1.99 |
| 54 |
532147286 |
Hinge Rod (AYP part number) This part replaces 532851854. Price: $4.99 |
| 55 |
532125175 |
Housing Bracket (AYP part number) Price: $5.99 |
| 56 |
532083731 |
Push-on Speed Nut (AYP part number) Price: $2.99 |
| 57 |
532851552 |
Self-tapping Screw #10-24 x 5/8 (AYP part number) Price: $2.99 |
| 58 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $4.99 |
| 60 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $2.99 |
| 61 |
532048283 |
KIT.SHIELD.DEBRIS.21.RWGD.EZ This part replaces 532134612. Price: $11.99 |
| 62 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $5.99 |
