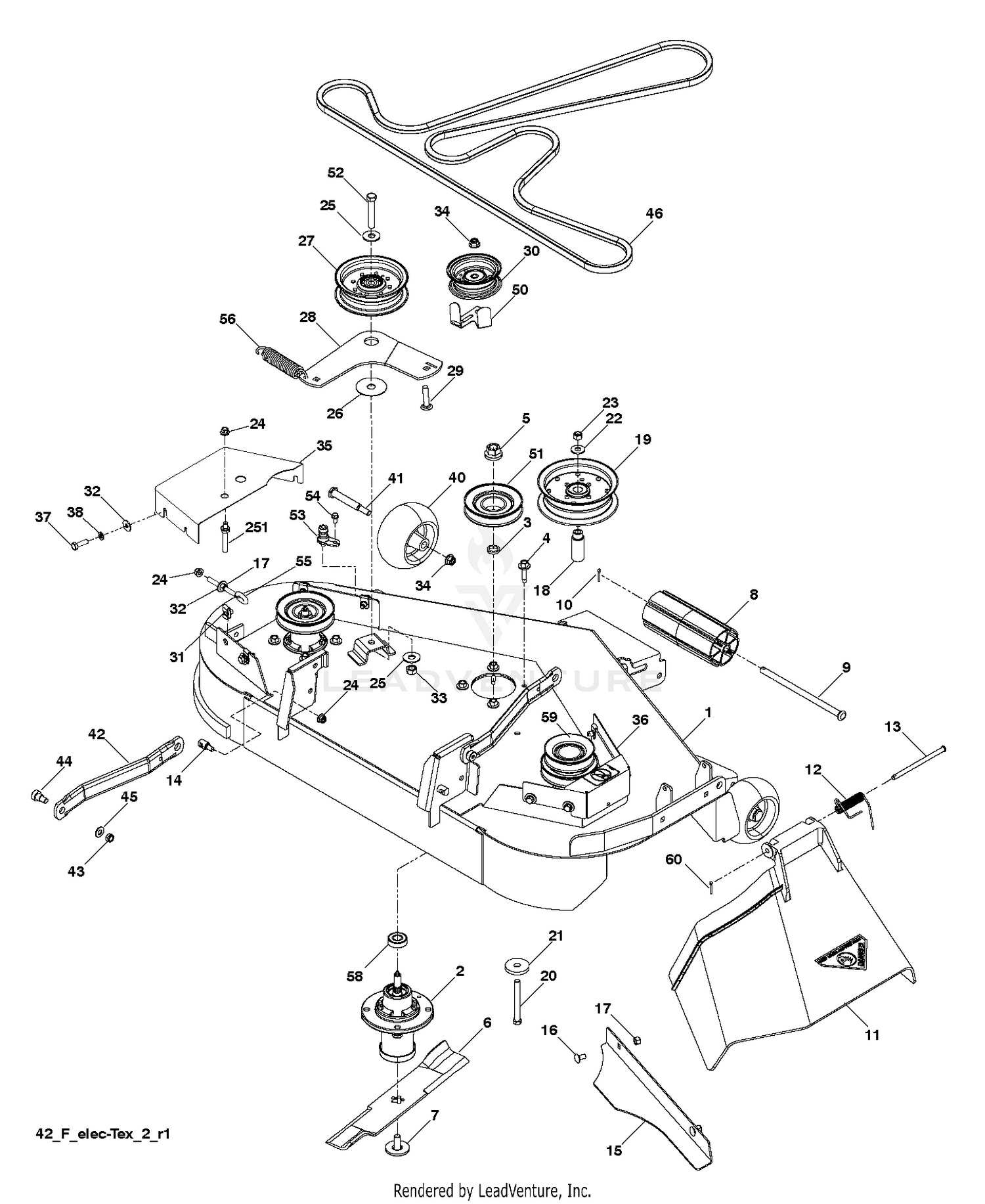

| Ref | Part Number | Description |
|---|
| 1 |
120-8086 |
FRONT FRAME ASM Price: $5,122.88 |
| 1 |
575438001 |
DECK SVC W/DECALS 42 YTH ORNGE This part replaces 574778902. Price: $1,599.99 |
| 2 |
120-8007-03 |
FRAME-REAR Price: $3,094.30 |
| 2 |
539112170 |
MANDREL.DECK.ASSEMBLY Price: $69.99 |
| 3 |
108-4018 |
ROPS ASM Price: $1,001.27 |
| 3 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 539107520. Price: $3.99 |
| 4 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 4 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $3.99 |
| 5 |
104-5584-0P |
PLATE-REINFORCEMENT,ROPS This part replaces 104-5584-03. Price: $36.27 |
| 5 |
596134801 |
Nuts This part replaces 539107590. Price: $1.00 |
| 6 |
325-20 |
SCREW-HH Price: $6.29 |
| 6 |
539112078 |
BLADE, 14 5/8" Price: $19.99 |
| 7 |
32128-49 |
NUT-HHF Price: $1.04 |
| 7 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
104-5516-0P |
SUPPORT-TUBE This part replaces 104-5516-01. Price: $9.23 |
| 8 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 9 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 9 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 10 |
32128-20 |
NUT-HF Price: $0.99 |
| 10 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 11 |
119-0006 |
ACCESS PLATE ASM Price: $170.08 |
| 11 |
539110731 |
DISCHARGE CHUTE 42" Price: $49.99 |
| 12 |
596646001 |
Springs This part replaces 539110735. Price: $3.99 |
| 12 |
75-1410-01 |
PLATE-ACCESS, FLOOR Price: $142.43 |
| 13 |
125-4614 |
TREAD-FOOT, CENTER Price: $65.72 |
| 13 |
595935501 |
Pins This part replaces 539110736. Price: $2.99 |
| 14 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 14 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 15 |
539112413 |
CONFINEMENT.PLATE.42".BLACK Price: $27.99 |
| 16 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 16 |
72-3560 |
DECAL Price: $12.52 |
| 17 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 18 |
575224501 |
BUSHING, IDLER Price: $27.99 |
| 19 |
589766102 |
Pulleys This part replaces 539132728. Price: $27.99 |
| 20 |
539108271 |
HCS 3/8-16 X 3-1/2 GR5 ZD Price: $4.99 |
| 21 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 23 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 24 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 25 |
596437601 |
Washers This part replaces 539104864. Price: $2.99 |
| 26 |
532178515 |
WASHER Price: $5.99 |
| 27 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 28 |
574827102 |
ARM, IDLER, BLK This part replaces 574827101. Price: $27.99 |
| 29 |
539990923 |
RHSNB 3/8-16X1-3/4 Price: $2.99 |
| 30 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 31 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 32 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 33 |
873900700 |
NUT.LOCK.FLANGE.7/16 This part replaces 539132019. Price: $3.99 |
| 34 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 35 |
575224702 |
SHIELD.BELT.LH.ORANGE Price: $29.99 |
| 36 |
575967102 |
SHIELD, BELT, RH 42 ORG Price: $29.99 |
| 37 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 38 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 40 |
532133957 |
WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99 |
| 41 |
596434404 |
Bolts This part replaces 539107608. Price: $4.99 |
| 42 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 43 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 44 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 45 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 46 |
574845601 |
BELT, 42" FAB DECK Price: $79.99 |
| 50 |
531165901 |
SERVICE KIT GUARD This part replaces 575224301. Price: $4.99 |
| 51 |
575224401 |
PULLEY, MANDREL 4.08 OP Price: $29.99 |
| 52 |
596435201 |
Bolts This part replaces 539104870. Price: $2.99 |
| 53 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 54 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $2.99 |
| 55 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 56 |
596645601 |
Springs This part replaces 539106850. Price: $8.99 |
| 58 |
539112050 |
BEARING, BALL Price: $5.99 |
| 59 |
575416201 |
PULLEY, COLLECTION 42 Price: $49.99 |
| 60 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 251 |
532156109 |
BELT KEEPER KIT This part replaces 532123405. Price: $3.99 |
