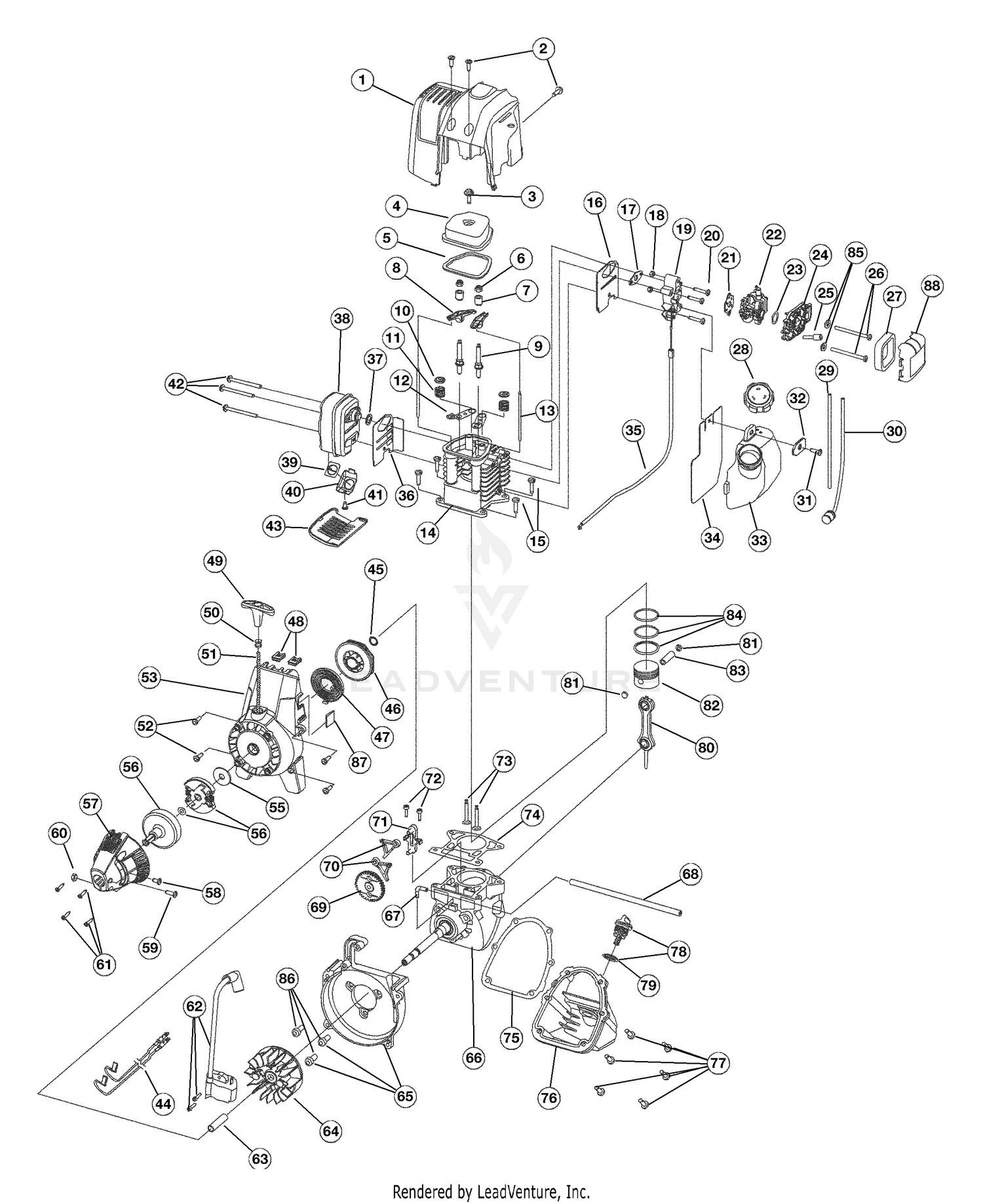

| Ref | Part Number | Description |
|---|
| 1 |
753-04083 |
ENGINE COVER Not Available Price: |
| 2 |
753-04994 |
Engine Cover Screws This part replaces 791-182339. Price: $5.99 |
| 3 |
791-181025 |
Valve Cover Screw Price: $2.44 |
| 4 |
791-182098 |
COVER, VALVE W/O BRE Not Available Price: |
| 5 |
791-182099 |
Valve Cover Gasket Price: $8.64 |
| 6 |
791-182340 |
NUT, ROCKER ADJUST Not Available Price: |
| 7 |
791-182101 |
PIVOT, ROCKER ARM Not Available Price: |
| 8 |
791-182100 |
ARM, ROCKER Not Available Price: |
| 9 |
791-182341 |
STUD, ROCKER ARM Not Available Price: |
| 10 |
791-182103 |
RET, VALVE SPRING Not Available Price: |
| 11 |
791-181038 |
SPRING, VALVE Not Available Price: |
| 12 |
791-182102 |
GUIDE, PUSH ROD Not Available Price: |
| 13 |
791-181033 |
ROD, PUSH Not Available Price: |
| 15 |
9052-1 |
SCREW, M5 X18 This part replaces 791-182344. Price: $3.78 |
| 16 |
791-182345 |
BAFFLE, INTAKE GAS Not Available Price: |
| 17 |
791-182749 |
Carburetor Mount Gasket Price: $8.48 |
| 18 |
791-181034 |
NUT-DEE HANDLE Not Available Price: |
| 20 |
791-182348 |
SCR, CARBU Not Available Price: |
| 21 |
791-182732 |
CARBURETOR GASKET Not Available Price: |
| 22 |
753-04296 |
Carburetor with Primer Price: $72.89 |
| 23 |
791-181751 |
O-Ring, Carburetor Price: $3.92 |
| 25 |
791-182097 |
Breather Tube Price: $10.13 |
| 26 |
791-181750 |
SCREW 5M X 0.8-7 NLAUD Not Available Price: |
| 27 |
791-181757 |
Air Filter Price: $3.59 |
| 28 |
753-1229 |
Fuel Cap Price: $19.90 |
| 29 |
791-182352 |
Fuel Return Line Price: $6.66 |
| 30 |
791-182353 |
Fuel Pick-Up Line with Filter Price: $8.80 |
| 31 |
791-181080 |
SCREW, FUEL TANK BRA Not Available Price: |
| 32 |
791-182354 |
RET, LOWER STAMPIN Not Available Price: |
| 34 |
791-182356 |
BAFFLE, FU Not Available Price: |
| 36 |
791-182358 |
BAFFLE, MUFFLER Not Available Price: |
| 37 |
9094-1 |
MUFFLER GASKET This part replaces 791-181048. Price: $4.01 |
| 39 |
791-180890 |
SCREEN, AC MUFFLER SPARK Not Available Price: |
| 40 |
791-181045 |
COVER, SCREEN Not Available Price: |
| 41 |
791-181046 |
SCREW, SCREEN COVER Not Available Price: |
| 42 |
791-182361 |
SCREW, MUFFLER Not Available Price: |
| 43 |
753-04092 |
CVR:MFLR Not Available Price: |
| 44 |
791-182804 |
ASSEMBLY, SWIT Not Available Price: |
| 45 |
753-04288 |
Push Nut This part replaces 791-181247. Price: $9.62 |
| 46 |
753-1199 |
PULLEY:START Not Available Price: |
| 47 |
753-04286 |
Recoil Spring Price: $24.35 |
| 48 |
791-182366 |
Nut Clip Price: $4.90 |
| 49 |
631-04164B |
Pull Handle This part replaces 791-181079. Price: $3.38 |
| 50 |
791-611061 |
Rope Guide Price: $9.62 |
| 51 |
791-613103 |
Rope Price: $8.97 |
| 52 |
9054 |
Screw This part replaces 791-181020. Price: $3.82 |
| 54 |
9162-1 |
Washer This part replaces 791-182368. Price: $3.91 |
| 55 |
753-1238 |
Clutch with Spacer Price: $39.52 |
| 56 |
791-153592 |
Clutch Drum Price: $45.60 |
| 57 |
753-1239 |
CLUTCH COVER Not Available Price: |
| 58 |
791-145569 |
Anti-Rotation Screw Price: $9.02 |
| 59 |
753-1240 |
SCREW:8-32X1.00":MAC Not Available Price: |
| 60 |
753-1241 |
NUT:#8-32: Not Available Price: |
| 61 |
791-181345 |
Clutch Cover Screw Price: $3.75 |
| 62 |
753-04298 |
IGNITION MODULE WITH SCREWS Not Available Price: |
| 63 |
791-181065 |
SPACER Not Available Price: |
| 64 |
753-04299 |
FLYWHEEL Not Available Price: |
| 65 |
791-182743 |
ASSEMBLY, SHROUD (AC-2. Not Available Price: |
| 67 |
791-182375 |
FITTING, BREATHER Not Available Price: |
| 68 |
791-182379 |
Breather Hose Price: $4.10 |
| 69 |
791-181015 |
CAM GEAR Not Available Price: |
| 70 |
753-1242 |
FOLLOWER, Not Available Price: |
| 71 |
791-181013 |
BRACKET, CAM Not Available Price: |
| 72 |
791-181012 |
SCR, CAM BRACKET Not Available Price: |
| 73 |
791-181040 |
VALVE Not Available Price: |
| 74 |
791-182374 |
GASKET, CYLINDER B Not Available Price: |
| 75 |
791-181018 |
GASKET, OIL PAN Not Available Price: |
| 77 |
9054 |
Screw This part replaces 791-181020. Price: $3.82 |
| 78 |
791-182378 |
Oil Cap Dipstick (includes 74) This part replaces 753-04041. Price: $9.37 |
| 79 |
791-182290 |
O-Ring Price: $4.29 |
| 80 |
791-181009 |
ROD, CONNECTING Not Available Price: |
| 81 |
791-181008 |
BUTTON, WRIST PIN Not Available Price: |
| 82 |
753-1243 |
PISTON ASSEMBLY:PSTN Not Available Price: |
| 83 |
791-181006 |
PIN, WRIST Not Available Price: |
| 84 |
753-04801 |
RING SET:PISTON Not Available This part replaces 791-182295. Price: |
| 85 |
791-182409 |
Washer Price: $4.04 |
| 86 |
791-181861 |
SCREW, 1/4-20X.562 F Not Available Price: |
| 87 |
791-182537 |
GROMMET, WIRE (AC- Not Available Price: |
| 88 |
753-04316 |
AIR CLEANER & C Not Available Price: |
