Home / OPE / Riding Products / 652C, Reelmaster 4240-D Traction Unit, 2005 (SN 652C001001-652C099999) / Wing Arms

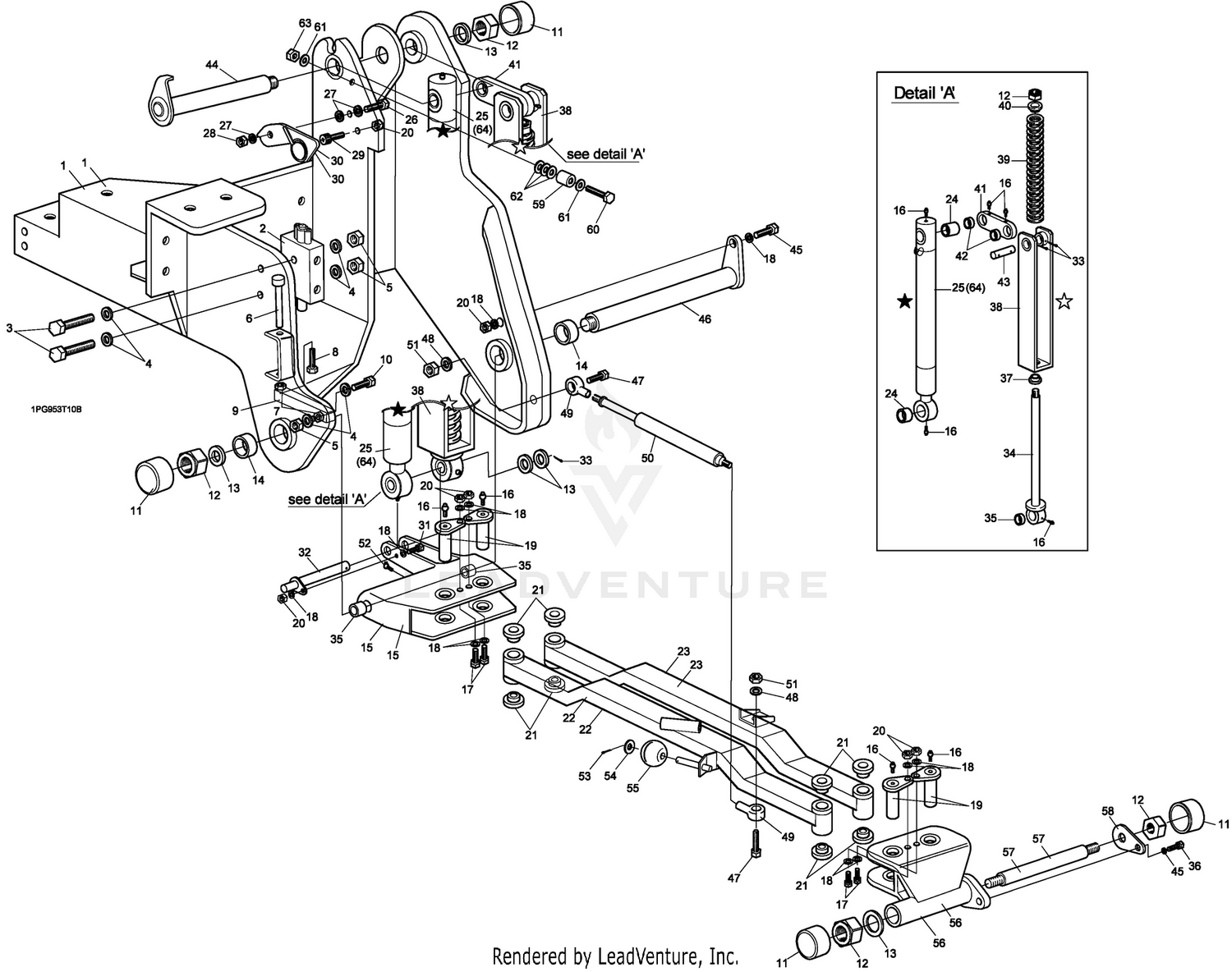

Wing Arms

Wing Arms

Parts (70)

RefPart NumberDescription
1 953125W ARM PIVOT LH W/A Price: $1,355.62
1 953130W ARM PIVOT RH W/A ## Price: $1,355.62
2 953601 VALVE 3 PORT DIVERTER Price: $236.37
3 ZBH1H065U BOLT - M8X65 Price: $1.38
4 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
5 09442 NUT M8 NYL INS P TYPE Price: $1.40
6 953559 BAR DIA 20*12*118 M8/RAD Price: $48.95
7 09440 NUT HEX M8 PLAIN Price: $1.40
8 ZDH1H035U SETSCREW HEX HD M8X35 Price: $1.36
9 953108 FLAT CAM FOLLOWER Price: $19.28
10 ZBH1H045U HEX.HD BOLT M8*45 Price: $1.38
11 10-11-100 NUT CAP M24 Price: $1.97
12 ZNN1X000U HEX.NUT M24 NYLOC Price: $5.40
13 09555 WASHER M24 PLAIN Price: $1.31
14 74-07-028 BUSH DEVOL 28DIAX25X20 Price: $8.10
15 953150W ARM CLEVIS LH W/A Price: $722.60
15 953155W ARM CLEVIS RH W/A Price: $698.96
16 10-11-017 GREASE NIPPLE 1/8BSP STR Price: $1.44
17 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
18 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
19 953552 PIN ARM LINKAGE W/A Price: $51.86
20 09447 NUT M10 X 1.5 NYL INS Price: $1.40
21 953505 BUSH 28*25*23 FLANGED Price: $18.26
22 953525W WING ARM FRONT RH W/A Price: $836.98
22 953530W WING ARM FRONT LH W/A Price: $836.98
23 953515W WING ARM REAR RH W/A Price: $736.37
23 953520W WING ARM REAR LH W/A Price: $736.37
24 25-07-007 TENSION BUSH 30/25*50 LG Price: $14.47
25 953603 CYLINDER LIFT 385/625 Price: $364.43
26 63-11-009 HEX HD.BOLT M12*50HT/10.9 Price: $5.02
27 HY09485 WASHER M12 PLAIN Price: $1.40
28 ZNN1L000U HEX.NUT NYLOC M12 This part replaces 09453. Price: $1.40
29 ZCS1J020U SOC HD CAP SCW. M10*20 Price: $1.31
30 994350C LATCH W/A LH This part replaces 65-01-230C. Price: $45.95
30 994355C LATCH W/A RH This part replaces 65-01-235C. Price: $45.95
31 09394 BOLT M10 X 35 Price: $1.40
32 953563 PIN DIA 25*132 W/A Price: $77.08
33 74-11-003 SPLIT PIN 5 DIA X 50 Price: $1.39
34 953220 PIN SPRING RETURN W/A Price: $84.49
35 876066 BUSH Price: $8.34
36 09415 BOLT M12 X 30 GD. 8.8 PLATED This part replaces ZDH1L030U. Price: $1.40
37 74-07-008 FLANGE BUSH DIA 28X25X23 LONG Price: $10.67
38 953215W BRACKET SPRING RETURN W/A Price: $132.48
39 953836 SPRING DIE Price: $311.64
40 953512 BUSH SPRING ACTUATING Price: $20.85
41 953214W PLATE TOP LINK Price: $38.01
42 767818 BUSH GLACIER 28*25*20 LG Price: $18.66
43 953561 PIN DIA 25*73 HOLE/HOLE Price: $23.27
44 66-05-103 PIN WING ARM PIVOT FRONT Price: $58.58
45 09599 WASHER Price: $1.42
46 953554 PIN WING ARM PIVOT W/A Price: $74.74
47 09705 BOLT M14*65 Price: $2.96
48 09488 WASHER PLAIN M14 Price: $1.40
49 953831 BEARING ROSE M14*2 FEMALE Price: $146.57
50 134-3942 SPRING-GAS This part replaces 953830. Price: $433.53
51 09540 NUT - NYLOC M14*2 P TYPE Price: $1.42
52 63-07-027 GREASE NIPPLE 1/8BSP 9OD Price: $1.55
53 70-11-004 SPLIT PIN 4 DIA*40 Price: $5.90
54 09491 WASHER M16 PLAIN Price: $1.42
55 950535 Roller Price: $32.15
56 953160W BRACKET HEAD PIVOT RH W/A Price: $510.80
56 953200W BRACKET HEAD PIVOT LH W/A Price: $478.45
57 65-05-120 HEAD PIVOT PIN (30/353MM) Price: $32.70
57 65-05-127 HEAD PIVOT PIN MK3 10"HD (400MM) Price: $38.34
58 63-01-185W RETAINER Price: $48.24
59 953838 RUBBER BUFFER DIA 30*30 LG M8 Price: $24.93
60 ZDH1F045U SETSCREW - M6X45 Price: $1.31
61 09472 WASHER-PLAIN Price: $1.25
62 09263 WASHER 1/4 X 7/8 X .08" THK Price: $1.34
63 09544 NUT M6 NYL INS GD 8 Price: $1.34
