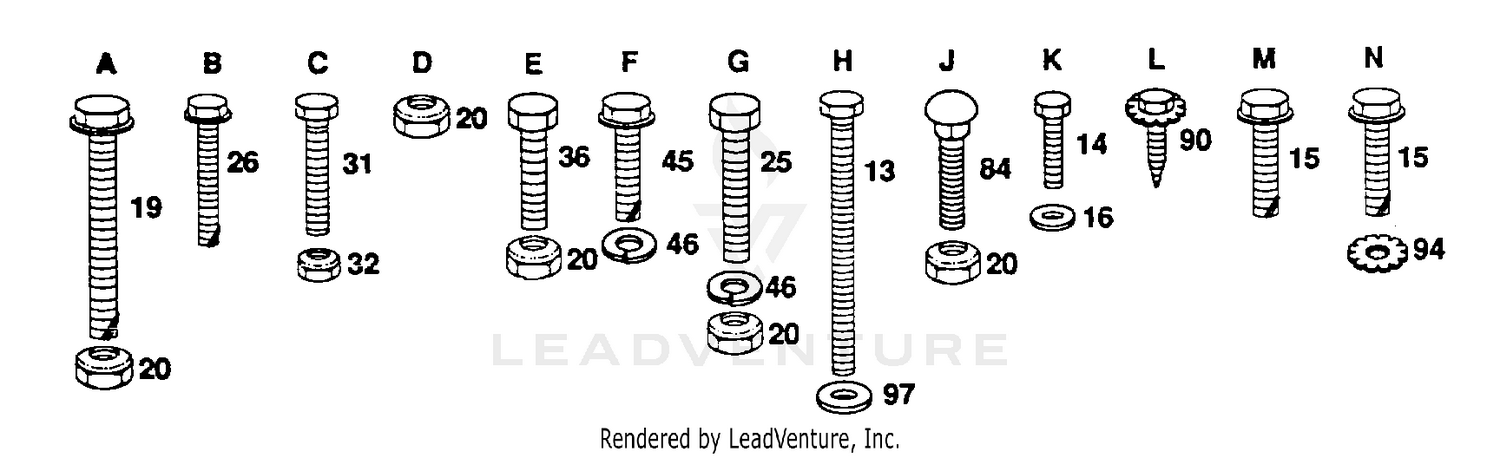

| Ref | Part Number | Description |
|---|
| 1 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 2 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 3 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 105-4500-03. Price: $3,119.29 |
| 5 |
92-7483 |
NUT-LUG Price: $2.04 |
| 6 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 7 |
94-3050 |
PLATE-SPRING Price: $7.88 |
| 8 |
94-3088 |
SPRING-COMPRESSION Price: $8.24 |
| 9 |
3218-4 |
NUT-JAM Price: $0.49 |
| 10 |
100-3070 |
LH BRAKE ASM This part replaces 100-3070-03. Price: $802.37 |
| 11 |
33106-090 |
SCREW-HHF Price: $2.78 |
| 12 |
353-988 |
PLUG-HEX Price: $10.61 |
| 13 |
105-1218 |
PISTON MOTOR ASM Price: $2,247.58 |
| 14 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 14 |
74780408 |
BOLT Price: Call Us |
| 15 |
17490620 |
SCREW Price: Call Us |
| 15 |
33116-120 |
SCREW-HH Price: $1.70 |
| 16 |
10040400 |
LOCKWASHER Price: Call Us |
| 16 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 17 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 18 |
237-166 |
O-RING Price: $10.46 |
| 19 |
100-3069 |
RH BRAKE ASM This part replaces 100-3069-03. Price: $802.37 |
| 19 |
74760644 |
BOLT Price: Call Us |
| 20 |
73680600 |
SUB= 73690600 Price: Call Us |
| 21 |
104-3797 |
FITTING-STRAIGHT Price: $26.85 |
| 22 |
100-5530 |
FITTING-45 DEG Price: $109.81 |
| 23 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 25 |
74760616 |
BOLT Price: Call Us |
| 26 |
17490512 |
SCREW Price: Call Us |
| 31 |
74760512 |
BOLT Price: Call Us |
| 32 |
73680500 |
SUB= 73690500 Price: Call Us |
| 36 |
74760612 |
SUB= 74780612 Price: Call Us |
| 45 |
17490612 |
SCREW Price: Call Us |
| 46 |
19131312 |
WASHER Price: Call Us |
| 84 |
72140606 |
BOLT Price: Call Us |
| 90 |
17030808 |
SUB= 17030814 Price: Call Us |
| 94 |
11050600 |
LOCKWASHER Price: Call Us |
