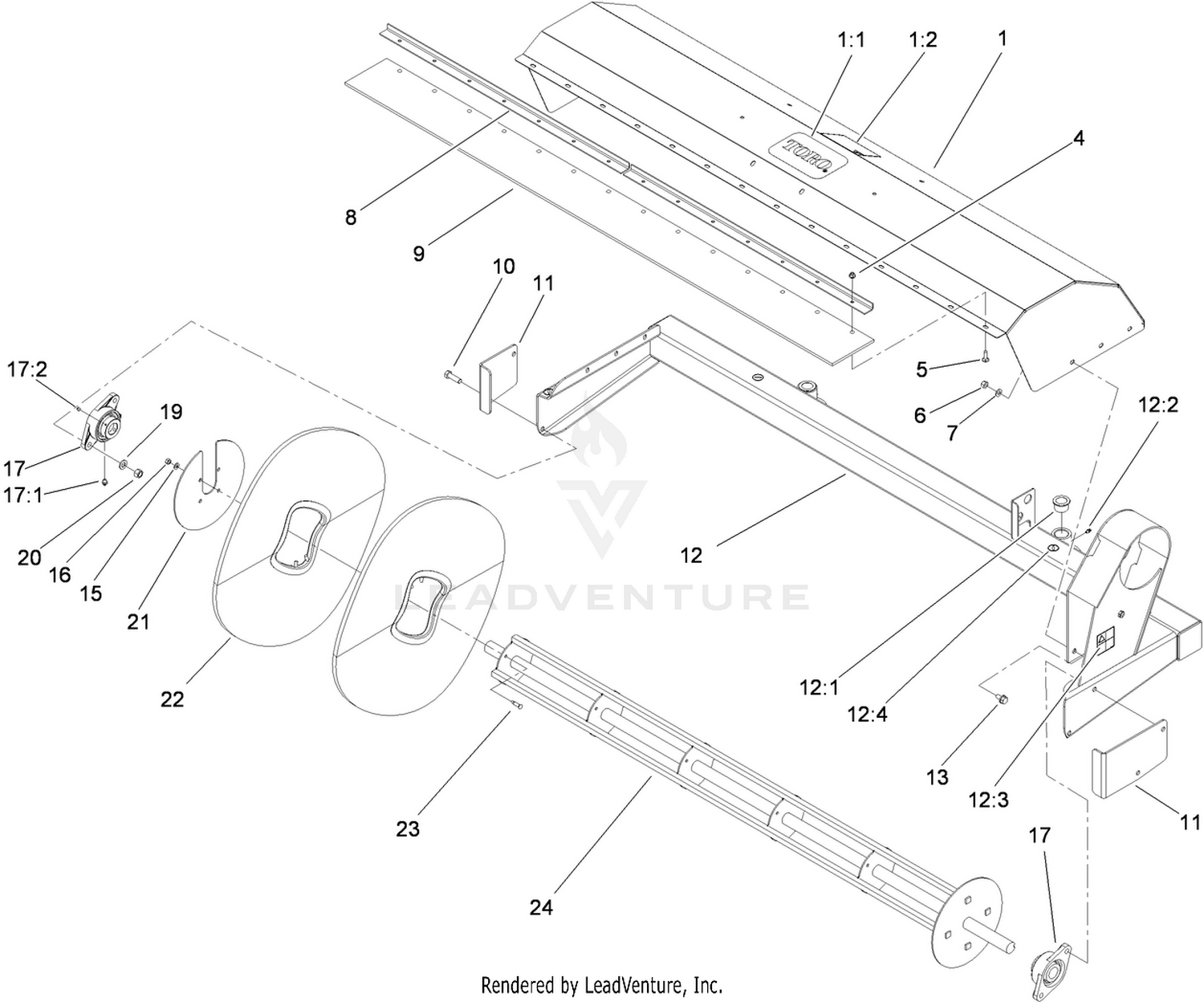

Frame and Brush Element Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 105-4598 | COVER ASM Price: $1,064.97 |
| 4 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 5 | 3230-2 | BOLT-CARR Price: $0.47 |
| 6 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
| 7 | 33095-00 | WASHER-FLAT Price: $0.25 |
| 8 | 105-4581-03 | STRAP Price: $75.60 |
| 9 | 95-7788 | DEFLECTOR Price: $208.97 |
| 10 | 33106-040 | SCREW-HHF Price: $2.44 |
| 11 | 108-1484-01 | GUARD-CORNER Price: $75.43 |
| 12 | 105-3276 | FRAME SWEEPER ASM Price: $2,612.33 |
| 13 | 33105-020 | SCREW-HHF Price: $0.54 |
| 15 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 16 | 3296-4 | NUT-LOCK Price: $0.25 |
| 17 | 94-7484 | BEARING Price: $152.51 |
| 19 | 33096-00 | WASHER-FLAT Price: $1.76 |
| 20 | 33026-00 | NUT-HEX Price: $1.02 |
| 21 | 108-8065-03 | PLATE-AXLE Price: $96.14 |
| 22 | 94-7372 | ELEMENT-BRUSH, POLY Price: $33.71 |
| 23 | 108-8039 | STUD Price: $5.87 |
